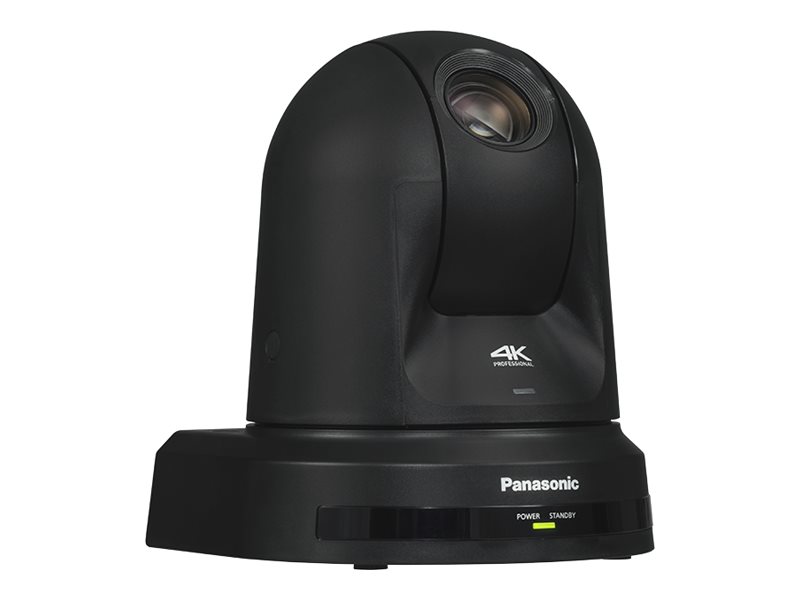

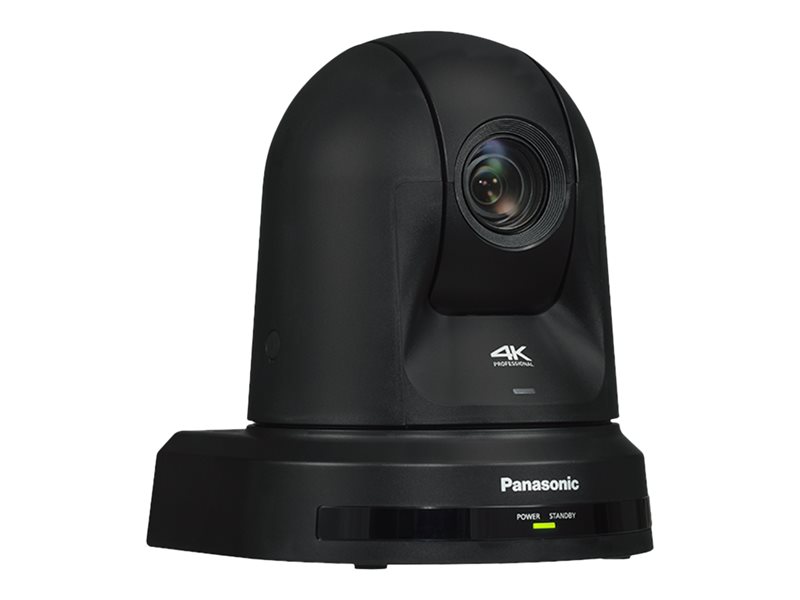

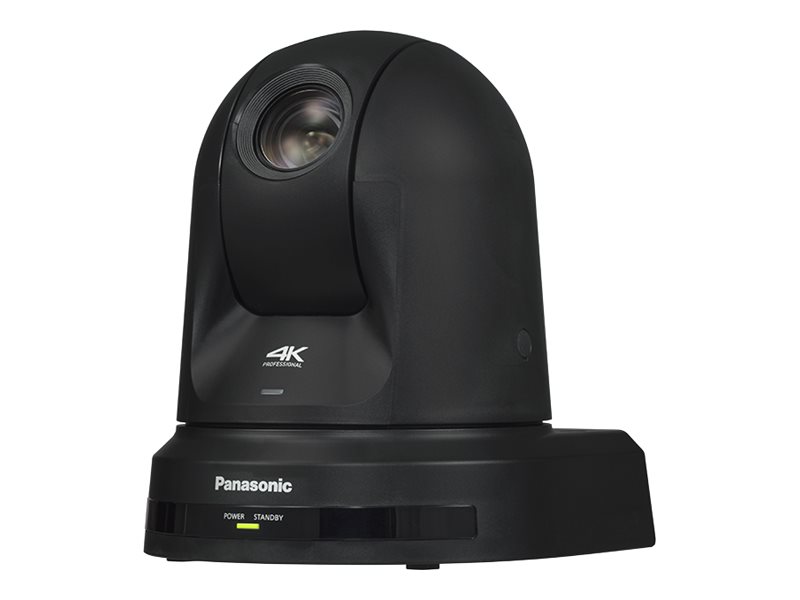

Conference camera - PTZ - color - 3840 x 2160 - motorized - audio - NDI|HX, HDMI, 3G-SDI - USB-C - H.264, H.265, MJPEG - DC 42.5 - 57 V / PoE+
| Main Specifications | |
|---|---|
| Product Description | Panasonic AW-UE50 - conference camera |
| Device Type | Conference camera - pan / tilt / zoom |
| Audio | Yes |
| Camera Mount Type | Ceiling mount, surface mount |
| Dimensions (WxDxH) | 6.3 in x 6.5 in x 7.6 in |
| Weight | 3.97 lbs |
| Color | Black |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 24 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Video Modes | 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/30p, 1080/23.98p, 1080/29.97i, 1080/23.98PsF, 1080/29.97PsF, 1080/25p, 1080/25PsF, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/24p, 720/59.94p, 720/50p |
| Optical Sensor Type | MOS - 1/2.5" |
| Minimum Illumination | 3 lux F1.8 - 50 IRE |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.12 mm - 98.9 mm |
| Focus Adjustment | Automatic, manual |
| Lens Iris | F/1.8-4.0 |
| Panning Range (degree) | -175 to +175 |
| Interfaces | USB-C, NDI|HX, HDMI, 3G-SDI |
| Control Interface | RS-422 |
| Software Certification | Zoom Certified |
| Voltage | DC 42.5 - 57 V / PoE+ |
| Features | Automatic Tracing White (ATW), Automatic Whiteness Balance (AWB), Optical Image Stabilization (OIS) |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Conference camera |
| Audio Support | Yes |
| Audio Formats | AAC-LC |
| Camera Mount Type | Ceiling mount, surface mount |
| Connectivity Technology | Wired |
| Width | 6.3 in |
| Depth | 6.5 in |
| Height | 7.6 in |
| Weight | 3.97 lbs |
| Expansion / Connectivity | |

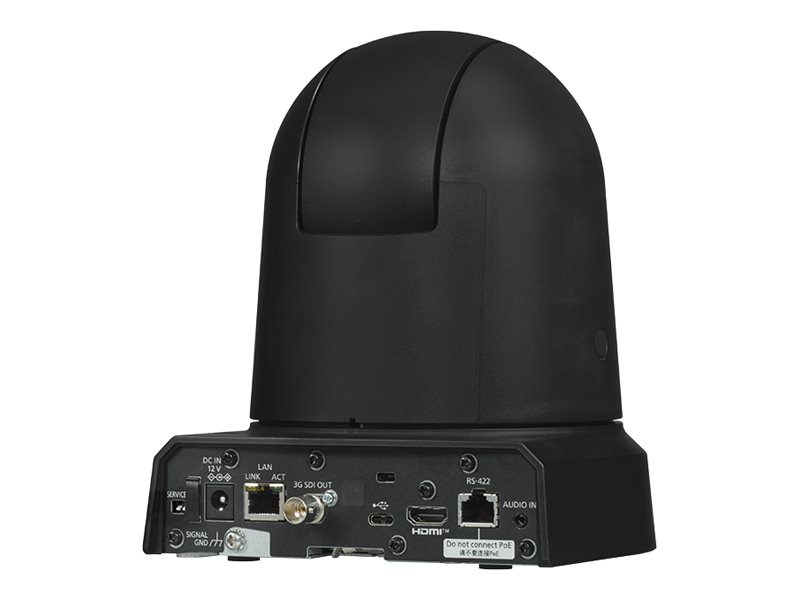

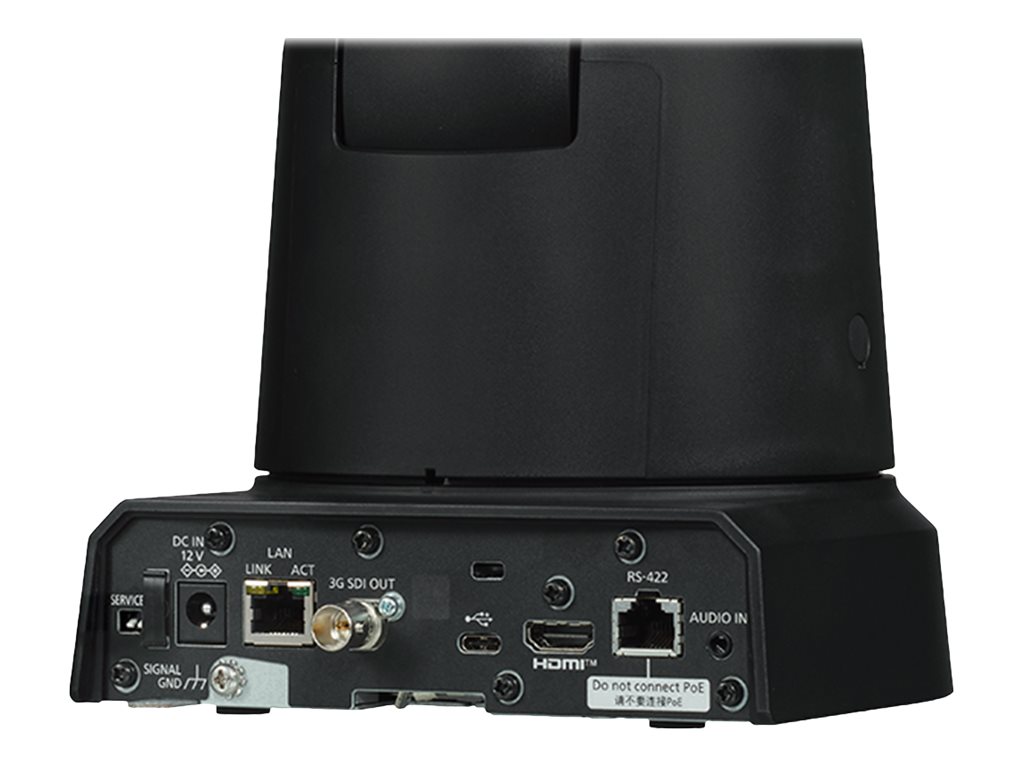

| Ports | Audio line in - 3.5 mm stereo jack ¦ LAN/power - RJ-45 ¦ Serial RS-232 - RJ-45 ¦ HDMI output ¦ 3G-SDI output - BNC ¦ USB-C |
| Miscellaneous | |
| Software Certification | Zoom Certified |
| Color | Black |
| Power | |
| Power Requirements | DC 42.5 - 57 V / PoE+ |
| Software / System Requirements | |
| OS Required | Windows 10, Apple macOS 11.0.1, Apple macOS 10.14, Apple macOS 10.15, Android |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 90% (non-condensing) |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264, H.265, MJPEG |
| Max Digital Video Resolution | 3840 x 2160 |
| Video Modes | 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/30p, 1080/23.98p, 1080/29.97i, 1080/23.98PsF, 1080/29.97PsF, 1080/25p, 1080/25PsF, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/24p, 720/59.94p, 720/50p |
| Digital Zoom | 2 |
| Exposure Range | 1/25 sec - 1/10000 sec |
| Minimum Illumination | 3 lux F1.8 - 50 IRE |
| Digital Video Capture Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 |
| Frame Rate (max) | 30 frames per second |
| Supported Image Formats | JPEG |
| Still Image Capture Resolution | 1920 x 1080, 1280 x 720 |
| Features | Automatic Tracing White (ATW), Automatic Whiteness Balance (AWB), Optical Image Stabilization (OIS) |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 24 x |
| Focal Length | 4.12 mm - 98.9 mm |
| Lens Iris | F/1.8-4.0 |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 3.3 - 74.1 |
| Vertical Field of View (degree) | 1.9 - 46 |
| Diagonal Field of View (degree) | 3.8 - 81.8 |
| Image Sensor | |
| Type | MOS 1/2.5" |
| Interfaces | |
| Video | NDI|HX, HDMI, 3G-SDI |
| Network Protocols | SRT, IPv6, IPv4, TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCP, RTP, MLD, ICMP, ARP, RTMP, RTSP, RTCP, DDNS, IGMP, RTMPS, NDI HX |
| Computer Interface | USB-C |
| Control Interface | RS-422 |
| Panning | |
| Range (degree) | -175 to +175 |
