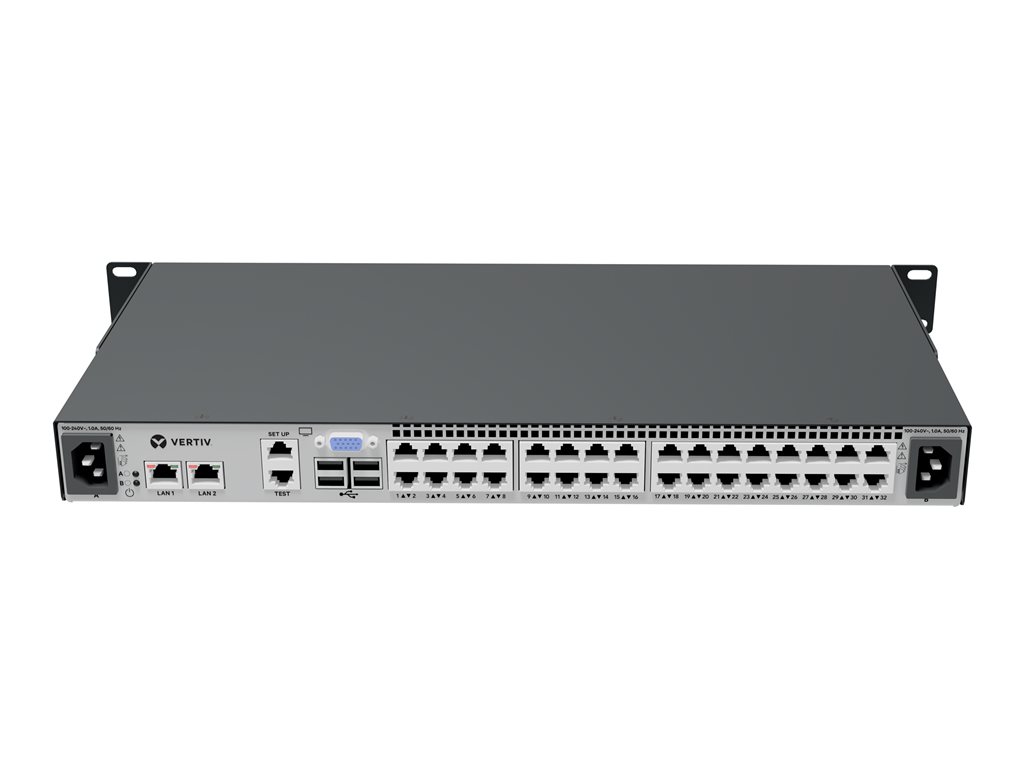

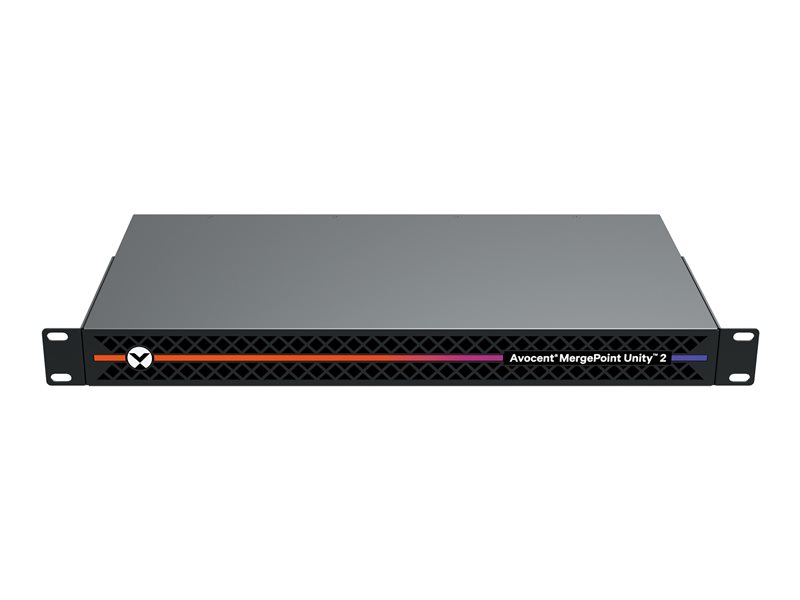

KVM switch - managed - 1 local user - 4 IP users - desktop, rack-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Vertiv Avocent MergePoint Unity 2 - KVM switch - 32 ports - managed - rack-mountable - TAA Compliant |
| Device Type | KVM switch - 32 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | KVM |
| KVM Users Qty | 1 local user, 4 IP users |
| Features | Trouble shooting, UEFI support, BIOS support, hotkey control, RESTful APIs, LDAP support, HTML5 User Interface support |
| Power | AC 100-240 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 13 in x 20.9 in x 8.1 in |
| Weight | 10.8 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM switch - 32 ports - managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | KVM |
| KVM Local Users Qty | 1 local user |
| KVM IP Users Qty | 4 IP users |
| Keyboard / Mouse Interface | USB |
| Encryption Algorithm | FIPS 140-2, TLS 1.3 |
| Max Resolution | 1920 x 1080 |
| Features | Trouble shooting, UEFI support, BIOS support, hotkey control, RESTful APIs, LDAP support, HTML5 User Interface support |
| Expansion / Connectivity | |
| Interfaces | 32 x KVM / serial RJ-45 ¦ 1 x VGA HD-15 ¦ 1 x USB ¦ 1 x DVI-I ¦ 1 x DisplayPort ¦ 1 x HDMI |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | UL, FCC, cUL, ICES-003, VCCI, KCC, RCM, NOM, EAC |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V |
| Dimensions & Weight | |
| Width | 13 in |
| Depth | 20.9 in |
| Height | 8.1 in |
| Weight | 10.8 lbs |
