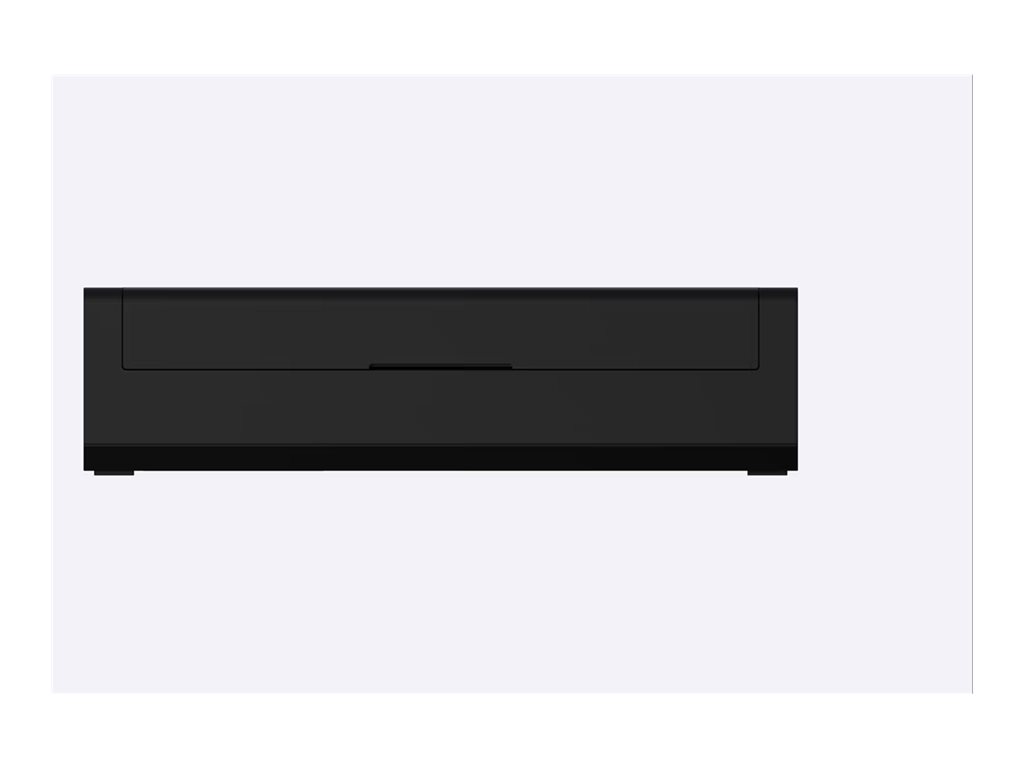

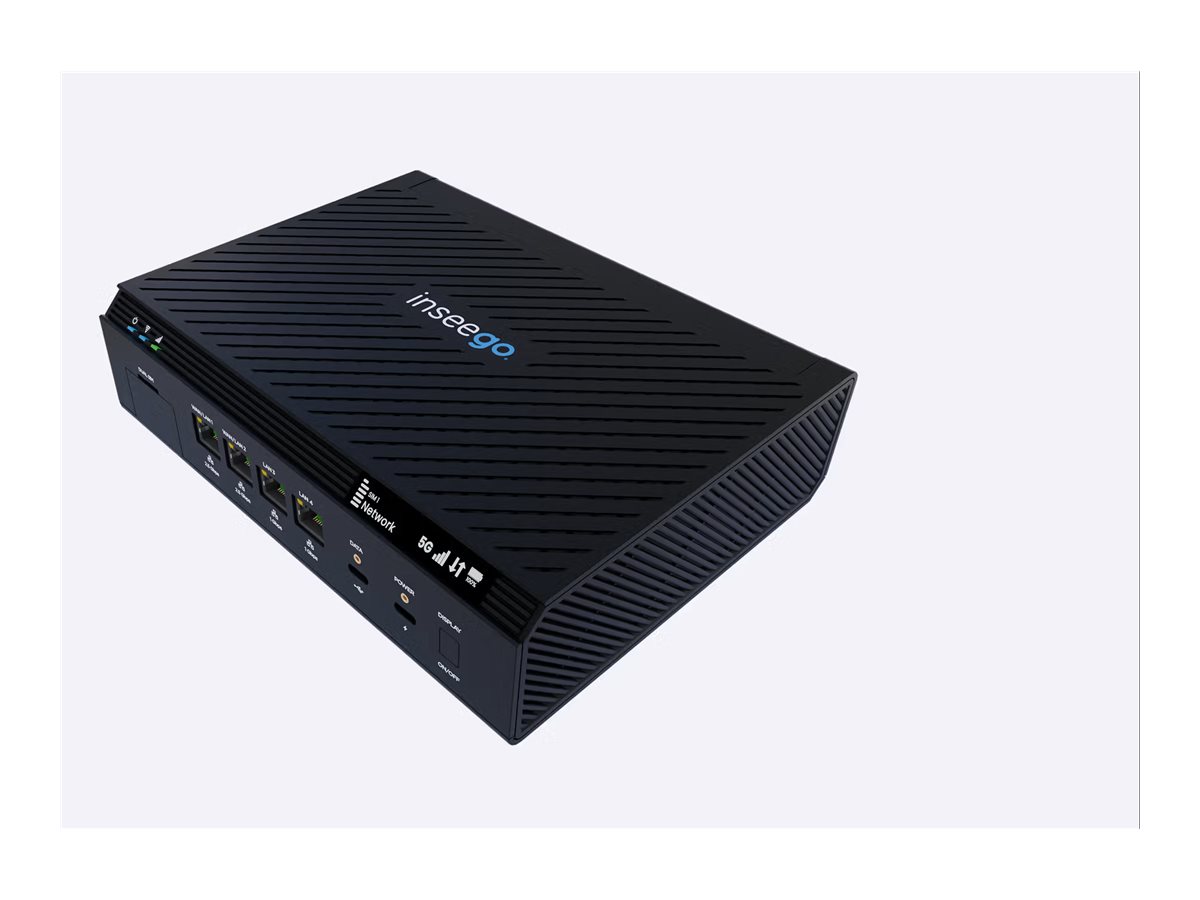

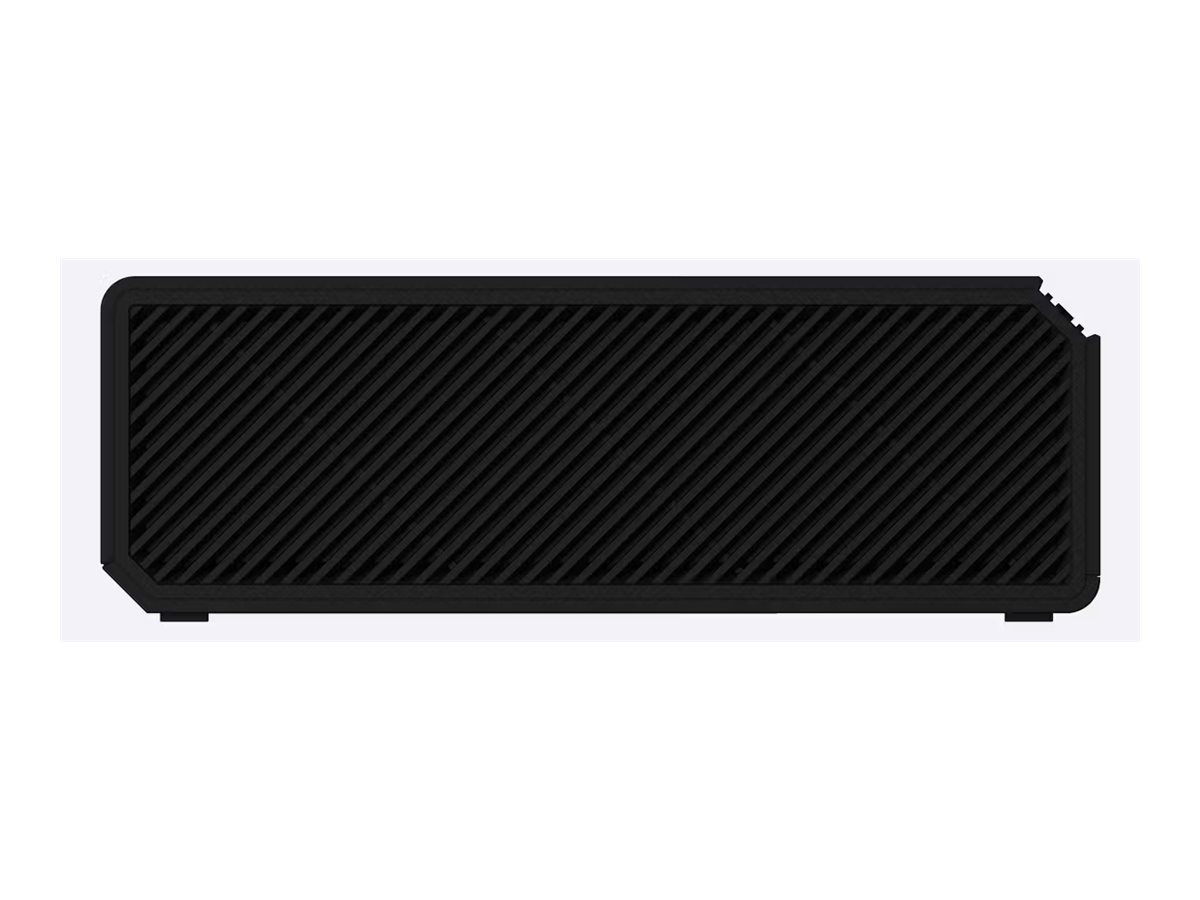

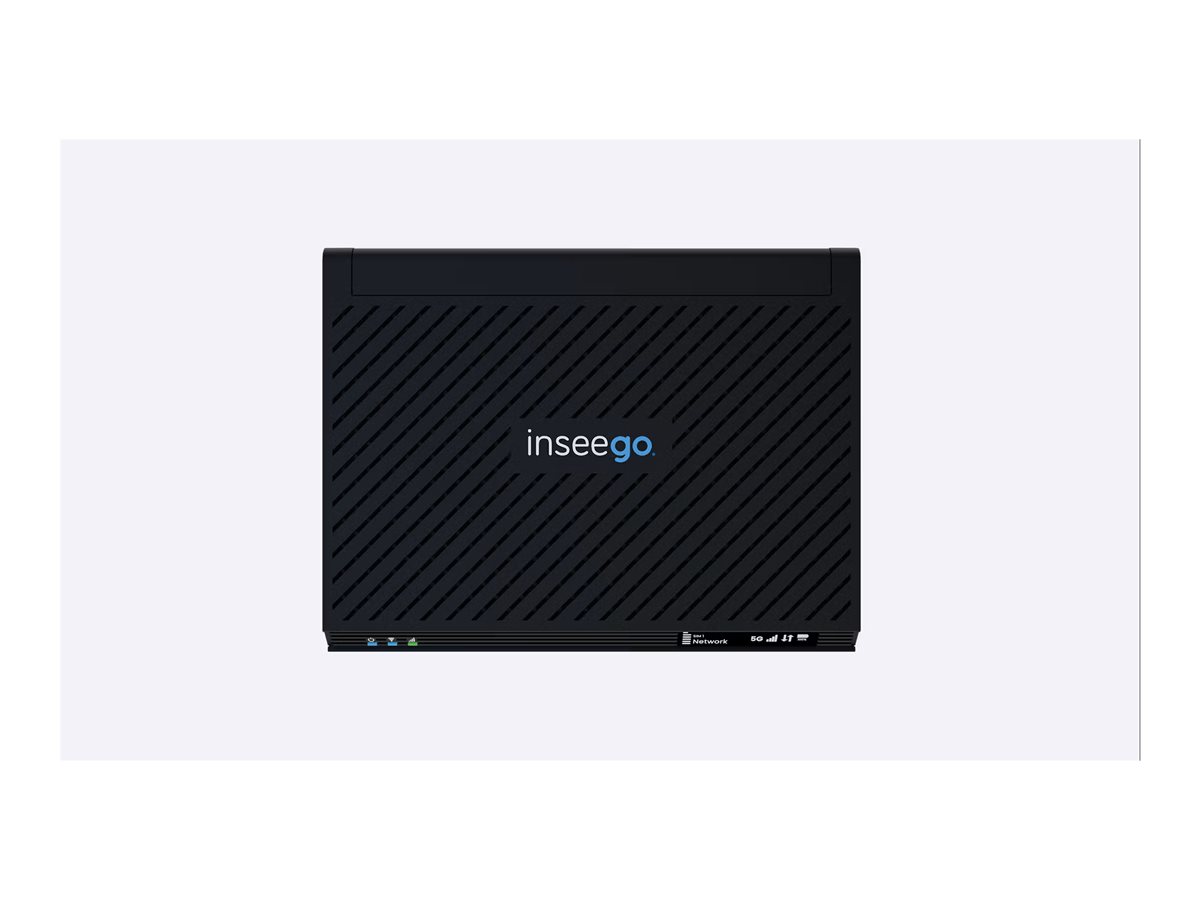

Wireless router - WWAN 1GbE, 5G, Wi-Fi 7 Dual Band - 5G - TAA Compliant - with 1 year Inseego Connect Advanced
| Main Specifications | |
|---|---|
| Product Description | Inseego Wavemaker FX4200 - wireless router - WWAN - Wi-Fi 7, LTE - 5G - desktop - TAA Compliant |
| Device Type | Wireless router - wireless cellular modem |
| Enclosure Type | Desktop |
| Bundled Services | 1 year Inseego Connect Advanced |
| Cellular Protocol | LTE, 5G |
| Generation | 5G |
| Cellular Band | 5G Sub-6 Ghz, 5G n2, 5G n5, 5G n7, 5G n12, 5G n13, 5G n14, 5G n25, 5G n26, 5G n29, 5G n30, 5G n38, 5G n41, 5G n48, 5G n66, 5g n70, 5G n77, LTE B2, LTE B4, LTE B5, LTE B7, LTE B12, LTE B13, LTE B14, LTE B17, LTE B25, LTE B26, LTE B29, LTE B30, LTE B38, LTE B41, LTE B42, LTE B46, LTE B48, LTE B66, LTE B70, LTE B71 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, LTE, 5G, IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | IPv4, IPv6 |
| Features | NAT support, MAC address filtering, DNS support, port forwarding, port filtering, IPSec VPN server, APN management, 1GbE OOB management, network selection, WAN port, 4x4 MIMO technology, secure boot, AES encryption, OpenVPN client, static IP address support, built-in rechargeable Li-ion battery, zero-touch configuration, cloud managed, scalable, VLAN support, reset button, VPN passthrough, firewall protection, IP passthrough, packet slicing programmable, test Internet speed |
| Dimensions (WxDxH) | 8.3 in x 5.5 in x 2.1 in |
| Weight | 3.24 lbs |
| TAA Compliant | Yes |
| General | |
| Device Type | Wireless router |
| Bundled Services | 1 year Inseego Connect Advanced |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, LTE, 5G, IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | IPv4, IPv6 |
| Encryption Algorithm | WPA2, WPA3 |
| Features | NAT support, MAC address filtering, DNS support, port forwarding, port filtering, IPSec VPN server, APN management, 1GbE OOB management, network selection, WAN port, 4x4 MIMO technology, secure boot, AES encryption, OpenVPN client, static IP address support, built-in rechargeable Li-ion battery, zero-touch configuration, cloud managed, scalable, VLAN support, reset button, VPN passthrough, firewall protection, IP passthrough, packet slicing programmable, test Internet speed |
| Compliant Standards | Plug and Play, FIPS 140-3 |
| Processor | 1 x Qualcomm Dragonwing |
| Built-in Devices | Battery, display, GPS |
| Expansion / Connectivity | |

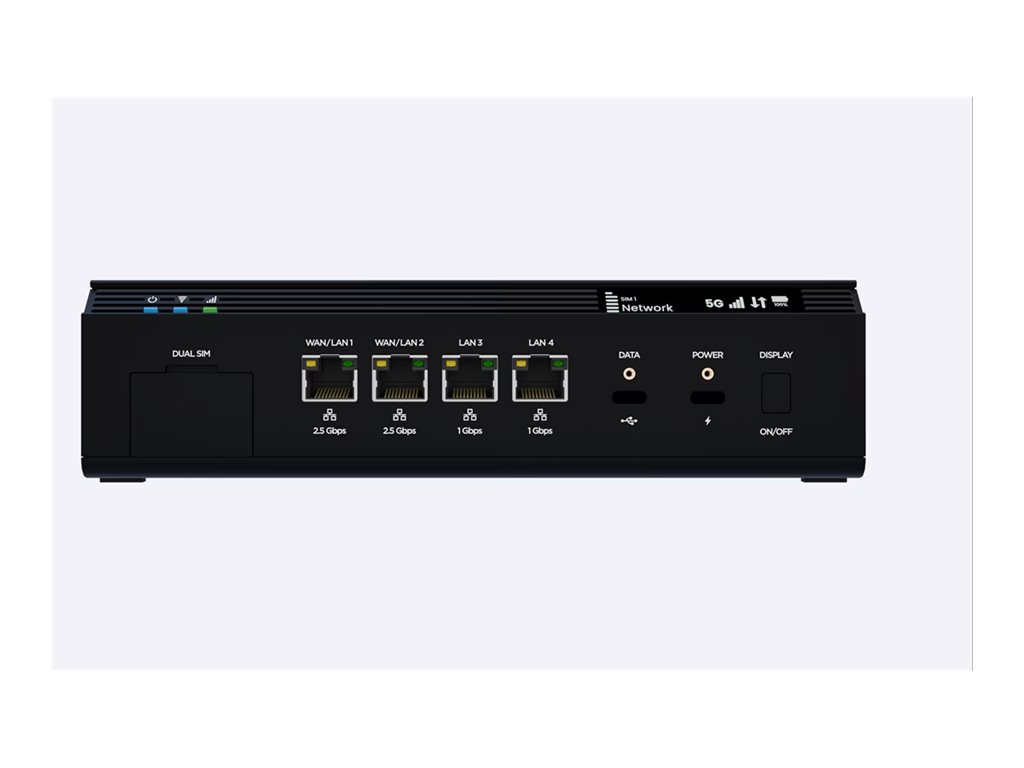

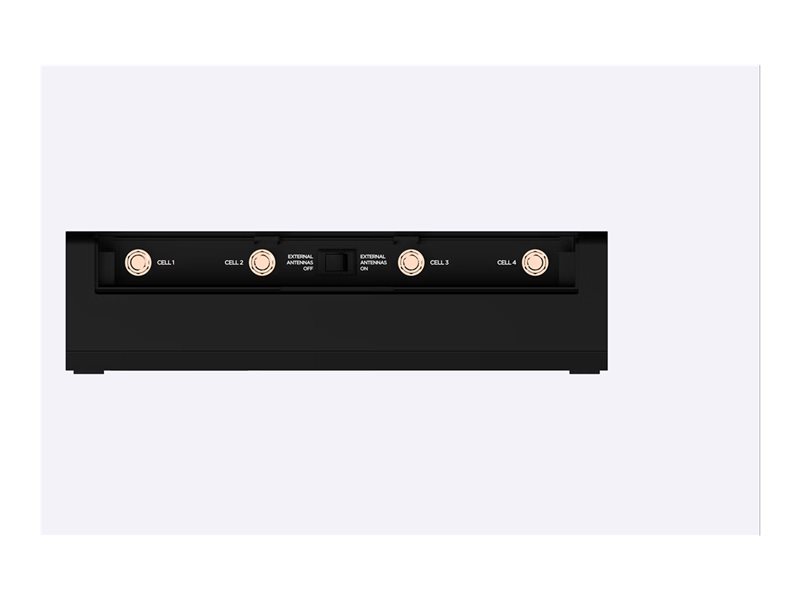

| Interfaces | LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN / LAN: 2 x 2.5G Gigabit Ethernet - RJ-45 ¦ USB: 1 x 24 pin USB-C ¦ USB: 1 x 24 pin USB-C (PD) ¦ Antenna: 4 x SMA |
| Expansion Slots | 2 (total) / 2 (free) x Nano-SIM |
| Miscellaneous | |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter / battery |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Communications | |
| Type | Wireless cellular modem |
| Cellular Protocol | LTE, 5G |
| Generation | 5G |
| Cellular Band | 5G Sub-6 Ghz, 5G n2, 5G n5, 5G n7, 5G n12, 5G n13, 5G n14, 5G n25, 5G n26, 5G n29, 5G n30, 5G n38, 5G n41, 5G n48, 5G n66, 5g n70, 5G n77, LTE B2, LTE B4, LTE B5, LTE B7, LTE B12, LTE B13, LTE B14, LTE B17, LTE B25, LTE B26, LTE B29, LTE B30, LTE B38, LTE B41, LTE B42, LTE B46, LTE B48, LTE B66, LTE B70, LTE B71 |
| Dimensions & Weight | |
| Width | 8.3 in |
| Depth | 5.5 in |
| Height | 2.1 in |
| Weight | 3.24 lbs |
| Antenna | |
| Antenna | External and internal |
