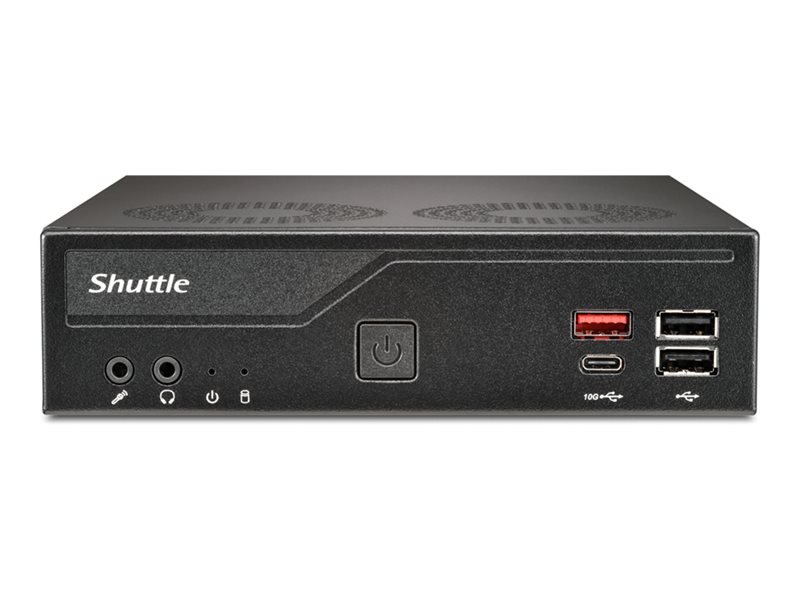

Barebone - Slim-PC LGA1851 Socket - Intel H810 - no CPU - RAM 0 GB - Gigabit Ethernet, 2.5 Gigabit Ethernet
| Main Specifications | |
|---|---|
| Product Description | Shuttle XPC slim DH810 - Slim-PC no CPU - 0 GB - no HDD |
| Type | PC barebone - Slim-PC |
| Processor | No CPU |
| Processor Socket | LGA1851 Socket |
| RAM | 0 GB (installed) / 96 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Audio Output | Stereo |
| Networking | 1GbE, 2.5GbE |
| Power | (50/60 Hz) |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 6.5 in x 7.5 in x 1.7 in |
| General | |
| Type | PC barebone |
| Product Form Factor | Slim-PC |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (Key E) |
| Interfaces | 1 x USB 3.2 Gen 2 (1 in front) ¦ 1 x USB-C 3.2 Gen 2 (1 in front) ¦ 3 x USB 2.0 (1 front, 2 rear) ¦ 1 x HDMI (1 rear) ¦ 1 x DisplayPort 1.4 (1 rear) ¦ 2 x USB 3.2 Gen 1 (2 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) - RJ-45 (1 rear) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear) ¦ 1 x serial (RS422/RS485) (1 rear) ¦ 1 x serial (RS-232) (1 rear) ¦ 1 x DisplayPort 1.4/USB4 (1 rear) |
| Miscellaneous | |
| Included Accessories | VESA mounting kit, Screw kit for VESA mount, power adapter |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| RAM | |
| Installed Size | 0 GB (installed) / 96 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 5600 MT/s |
| Rated Memory Speed | 5600 MT/s |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) / 2 (empty) |
| Networking | |
| Ethernet Ports | 1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet |
| Ethernet Controller | Intel I219, I226 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 120 Watt |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Audio Output | |
| Sound Output Mode | Stereo |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 6.5 in |
| Depth | 7.5 in |
| Height | 1.7 in |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1851 Socket |
| Chipset Type | Intel H810 |
