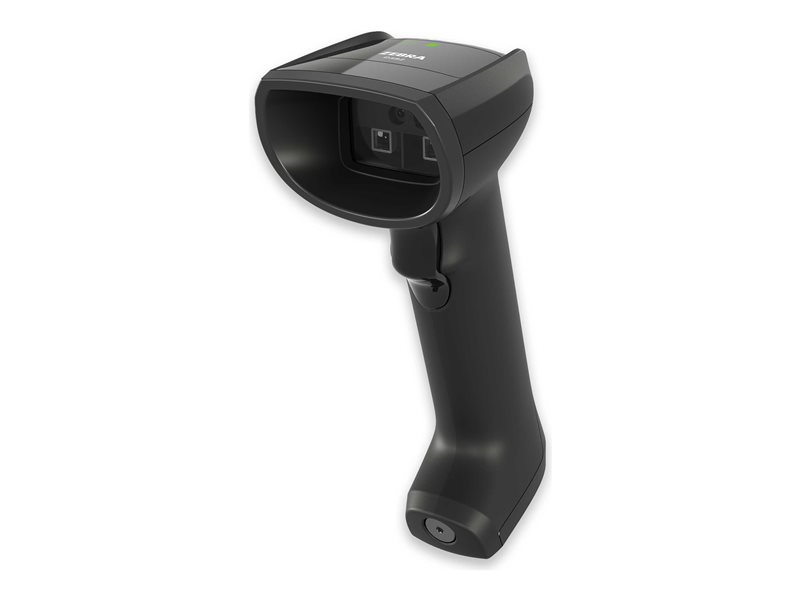

Barcode scanner - handheld - SR - 2D imager - decoded - Bluetooth 5.2 LE
| Main Specifications | |
|---|---|
| Product Description | Zebra DS8200 Series DS8288 - barcode scanner |
| Type | Barcode scanner - handheld - Bluetooth 5.2 LE - decoded |
| Color | Midnight black |
| Minimum Bar Width | 3 mil |
| Scan Engine Focus Range | Standard Range (SR) |
| Scan Element Type | 2D imager - green LED |
| Sensor Resolution | 1600 x 1200 |
| Connectivity Technology | Wireless |
| Battery | Lithium ion |
| Dimensions (WxDxH) | 2.7 in x 4.4 in x 6.9 in |
| Weight | 9.19 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Type | Barcode scanner - handheld |
| Color | Midnight black |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Cradle |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | FIPS, FIPS 140-3, EN/IEC 63000:2018, EN 62368-1, IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1-19, EN 50663, EN 62479, FCC CFR47 Part 2.1093, RSS-102 Issue 6, IEC/EN 62471, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 60601-1-2, FCC 47 CFR part 15 B class B, ICES-003 issue 7 Class B, EN 300 328, EN 303 417, EN 301 489-1, EN 301 489-17, IP52, EN 61000-4-2 |
| Power | |
| Electric Current Required | 450 mA (typical), 90 mA (standby) |
| Battery | Lithium ion |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 10 ft to concrete |
| Dimensions & Weight | |
| Width | 2.7 in |
| Depth | 4.4 in |
| Height | 6.9 in |
| Weight | 9.19 oz |
| Barcode | |
| Interface Type | Bluetooth 5.2 LE |
| Minimum Bar Width | 3 mil |
| Scan Engine Focus Range | Standard Range (SR) |
| Scan Element Type | 2D imager - green LED |
| Sensor Resolution | 1600 x 1200 |
| Light Source Wave Length | 524 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 41 in |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 16% |
| Decode Capability | Code 39, Code 128, Code 93, Codabar, NW-7, Code 11, MSI-Plessey, EAN/JAN, UPC, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, Italy Pharmacode, PDF417, MicroPDF417, Composite, TLC39, Aztec code, Data Matrix, Micro QR code, QR code, MaxiCode, Han Xin, Postal Code, SecurPharm, OCR-A, OCR-B, MICR, US currency serial number, GS1 Digital Link, Digimarc Barcode |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Vibration, LED indicator |
| Features | White LEDs illumination, Qi inductive charging, 1000 F battery, 8 kV ESD protection (direct discharge), 16 kV ESD protection (air discharge), 8 kV ESD protection (indirect discharge) |
