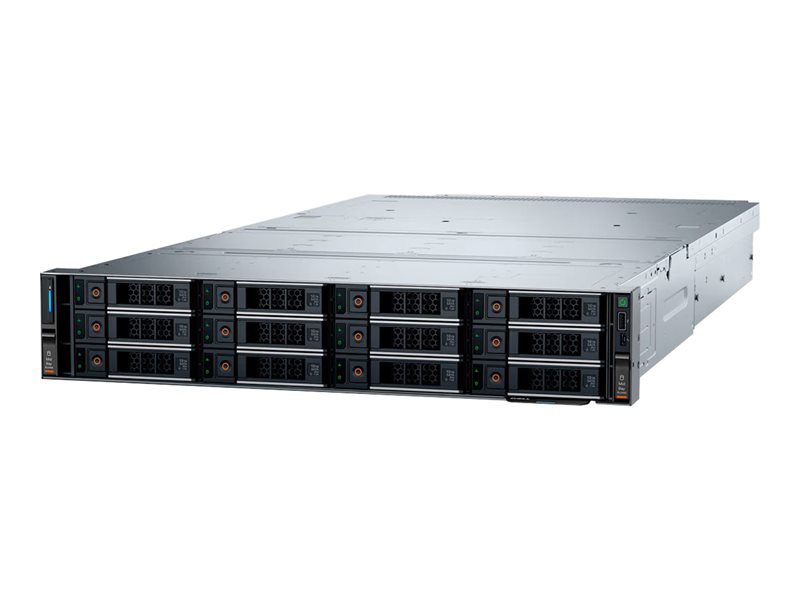

NVR - 9 x 20 TB - networked - 2U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | i-PRO SR3E Series NVR-R-2-180TB-V8 - standalone NVR |
| Device Type | NVR - networked - rack-mountable - 2U |
| Hard Drive | 9 x 20 TB |
| Hard Drive(s) Supported | Quantity: 12 |
| Dimensions (WxDxH) | 19 in x 28.4 in x 3.4 in |
| Weight | 63.05 lbs |
| Manufacturer Warranty | 5 years |
| General | |
| Device Type | NVR - rack-mountable - 2U |
| Package Content | Rack mount rails |
| OS Provided | Microsoft Windows Server 2025 Standard |
| Software Included (Y) | VI HM+ Activation (1-year subscription) |
| Compliant Standards | Plug and Play, NDAA |
| Warranty | 5 years |
| Networking | |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T, Ethernet 10GBase-X |
| Features | Trusted Platform Module 2.0 (TPM 2.0) |
| Hard Drive | |
| Quantity Installed | 9 |
| Quantity Supported | 12 |
| Capacity | 20 TB |
| Connections | |
| Video Output Ports | VGA x 1 |
| Network Port | 10/100/1000Base-T x 2 / 10Gb SFP+ x 2 |
| Other Ports | M.2 2280 x 2 |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 28.4 in |
| Height | 3.4 in |
| Weight | 63.05 lbs |
| Security DVR | |
| Networked | Yes |
| Features | iDRAC9 Express, RAID 1 support, RAID 5 support |
| Video Server | |
| CPU | 2 x Intel Xeon Silver |
| RAM | 64 GB |
| Features | Dual power supply |
