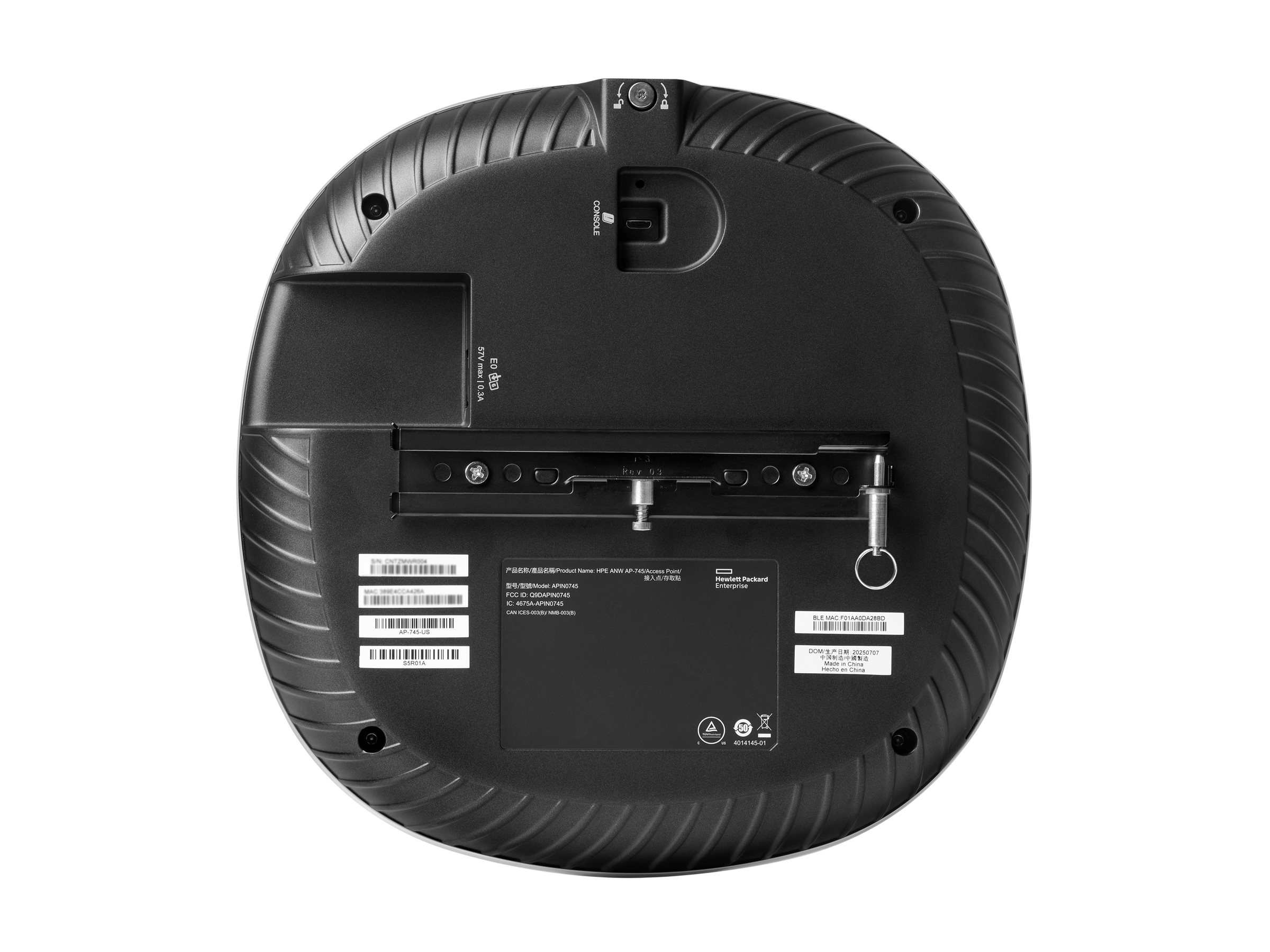

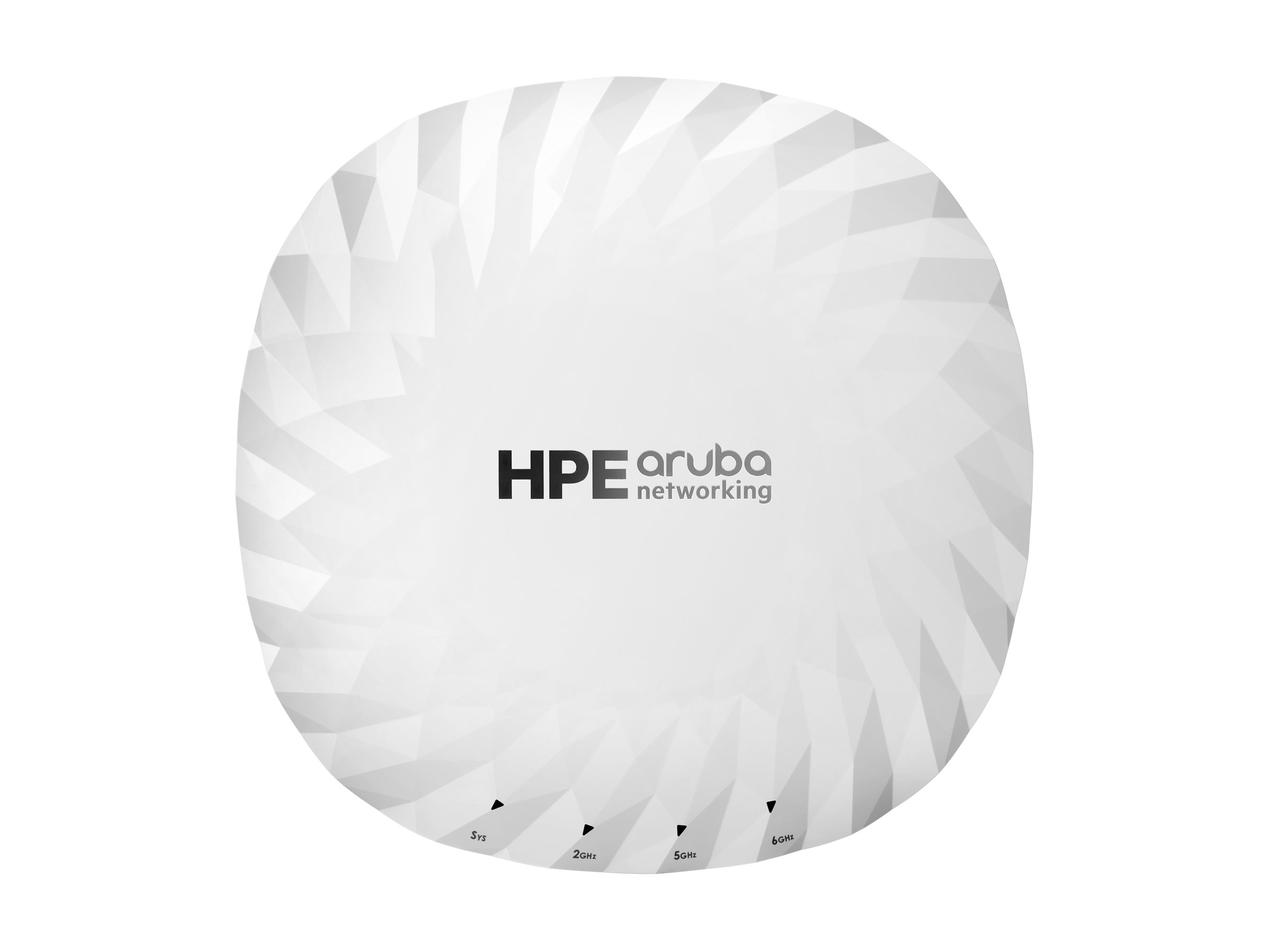

Campus - wireless access point - Wi-Fi 7, Bluetooth 5.4 LE - Wi-Fi 7, Bluetooth, ZigBee - 2.4 GHz, 5 GHz, 6 GHz - BTO ceiling mountable
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba Networking AP-745 (IL) Unified - Campus - wireless access point - Wi-Fi 7, Bluetooth, ZigBee |
| Device Type | Wireless access point |
| Form Factor | Ceiling mountable - indoor |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4 LE, ZigBee |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (2.4 GHz): 344 Mbps ¦ Maximum data rate (5 GHz): 2.88 Gbps ¦ Maximum data rate (6 GHz): 5.76 Gbps ¦ Peak data rate: 8.9 Gbps |
| Capacity | Spatial streams: 4 ¦ Associated client devices per radio: 512 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 37 |
| OS Required | ArubaOS 10.8.0.0 |
| Power Over Ethernet (PoE) Supported | PoE Class 6 |
| Pricing Type | BTO |
| Dimensions (WxDxH) | 9.4 in x 9.4 in x 2.2 in |
| Weight | 2.87 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 9.4 in |
| Depth | 9.4 in |
| Height | 2.2 in |
| Weight | 2.87 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x 100/1000/2500/5000Base?T - RJ-45 ¦ 1 x USB 2.0 (host) - Type A ¦ 1 x console - micro-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 964,054 hours |
| Compliant Standards | ETS 300 019 Class 2.3, ETS 300 019 Class 1.2, FCC, ISED, LVD 2014/35/EU, IEC/EN/UL 62368-1, EN60601-1-2, UL 2043 |
| Pricing Type | BTO |
| Networking | |
| Form Factor | Ceiling mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | 16 QAM, 64 QAM, 256 QAM, 1024 QAM, 4096 QAM, CCK, BPSK, QPSK, OFDM, DSSS |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4 LE, ZigBee |
| Spread Spectrum Method | DSSS, OFDM, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (2.4 GHz): 344 Mbps ¦ Maximum data rate (5 GHz): 2.88 Gbps ¦ Maximum data rate (6 GHz): 5.76 Gbps ¦ Peak data rate: 8.9 Gbps |
| Capacity | Spatial streams: 4 ¦ Associated client devices per radio: 512 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 37 |
| Status Indicators | System, 2.4 GHz, 5 GHz, 6 GHz |
| Features | Auto-uplink (auto MDI/MDI-X), Wi-Fi Multimedia (WMM) support, Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), cyclic shift diversity (CSD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, packet aggregation A-MPDU, packet aggregation A-MSDU, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, 2x2 SU-MIMO technology, 4x4 SU-MIMO technology, Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT), 4x4 MIMO 6GHz, 4x4 MIMO 5GHz, 2x2 MIMO 2.4GHz |
| Encryption Algorithm | WPA2, WPA3-Enterprise, WPA3-Personal, WPA3-Enhanced Open, Opportunistic Wireless Encryption (OWE) |
| Compliant Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, Wi-Fi CERTIFIED 7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3az, Wi-Fi CERTIFIED 6 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE Class 6 |
| Software / System Requirements | |
| OS Required | ArubaOS 10.8.0.0 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 100% RH |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.9 in |
| Shipping Depth | 10.6 in |
| Shipping Height | 3.4 in |
| Shipping Weight | 3.37 lbs |
| Antenna | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
