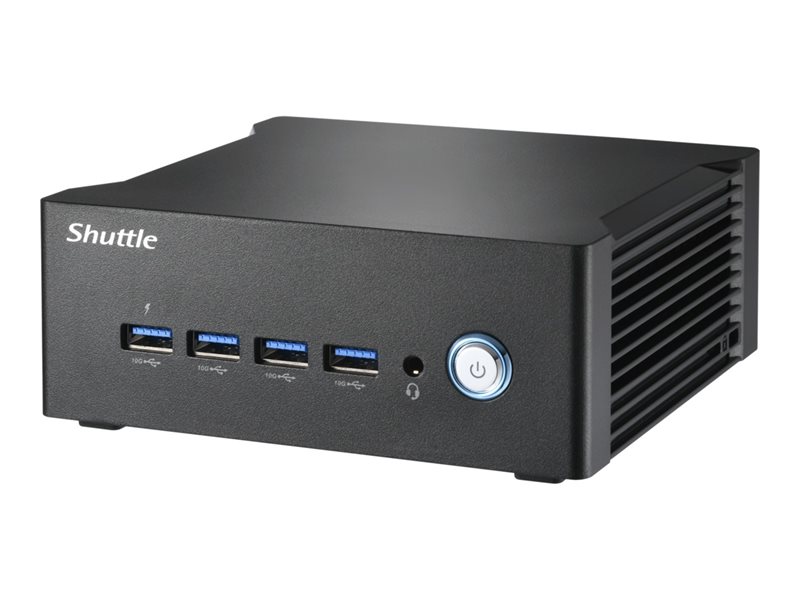

Barebone - mini PC 1 x Core Ultra 5 125H / up to 4.5 GHz - RAM 0 GB - Intel Arc Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet - black
| Main Specifications | |
|---|---|
| Product Description | Shuttle XPC nano NT10H5 - mini PC Core Ultra 5 125H 1.2 GHz - 0 GB - no HDD |
| Type | PC barebone - mini PC |
| Processor | 1 x Intel Core Ultra 5 (Series 1) 125H / 1.2 GHz (up to 4.5 GHz, (14-core) |
| Processor Main Features | Intel Smart Cache |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 11.5 TOPS |
| Cache Memory | 18 MB |
| Cache Per Processor | 18 MB |
| RAM | 0 GB (installed) / 96 GB (max) - DDR5 SDRAM - non-ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Graphics Controller | Intel Arc Graphics |
| Networking | 1GbE, 2.5GbE |
| Power | (50/60 Hz) |
| OS Provided | No operating system |
| Color | Black |
| Dimensions (WxDxH) | 5.2 in x 5.6 in x 2.3 in |
| Weight | 28.22 oz |
| Environmental Standards | ENERGY STAR Qualified |
| General | |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Expansion / Connectivity | |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 (Key B-M) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (Key E) |
| Interfaces | 5 x USB 3.2 Gen 2 (4 front, 1 rear) ¦ 2 x HDMI (2 rear) ¦ 1 x headphones/microphone (1 front) ¦ 2 x LAN (2.5Gigabit Ethernet) (2 rear) ¦ 2 x Thunderbolt 4/USB4/DisplayPort 1.4 (2 rear) (Power Delivery) ¦ 1 x USB 2.0 (1 rear) |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm, VESA |
| Compliant Standards | UL, BSMI, CB, FCC, RoHS, cTUVus, ERP, EMI, IEC 62368 |
| RAM | |
| Installed Size | 0 GB (installed) / 96 GB (max) |
| Technology | DDR5 SDRAM - non-ECC |
| Effective Memory Speed | 2800 MHz |
| Rated Memory Speed | 2800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) / 2 (empty) |
| Features | Unbuffered, registered, dual channel memory architecture |
| Networking | |
| Ethernet Ports | 2 x 2.5 Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Power | |
| Device Type | Power adapter |
| Voltage Required | (50/60 Hz) |
| Power Provided | 120 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Cache Memory | |
| Installed Size | 18 MB |
| Cache Per Processor | 18 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel Arc Graphics |
| Video Interfaces | HDMI, USB-C |
| Max Monitors Supported | 4 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 5.2 in |
| Depth | 5.6 in |
| Height | 2.3 in |
| Weight | 28.22 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 3.75 lbs |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | SD Memory Card |
| Processor / Chipset | |
| CPU | Intel Core Ultra 5 (Series 1) 125H |
| Clock Speed | 1.2 GHz (P-core) / 700 MHz (E-core) |
| Max Turbo Speed | 4.5 GHz (P-core) / 3.6 GHz (E-core) |
| Number of Cores | 14-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 11.5 TOPS |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
