Barebone - mini PC 1 x N-series N100 / up to 3.4 GHz - RAM 0 GB - UHD Graphics - Gigabit Ethernet - black
| Main Specifications | |
|---|---|
| Product Description | Shuttle XPC nano NE10N - mini PC N-series N100 - 0 GB - no HDD |
| Type | PC barebone - mini PC |
| Processor | 1 x Intel N-series N100 (up to 3.4 GHz, (Quad-Core) |
| Cache Memory | 6 MB L3 cache |
| Cache Per Processor | 6 MB |
| RAM | 0 GB (installed) / 16 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics |
| Audio Output | Stereo |
| Networking | 1GbE |
| OS Provided | No operating system |
| Color | Black |
| Dimensions (WxDxH) | 5.3 in x 4.5 in x 1.5 in |
| General | |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Expansion / Connectivity | |
| Slots | 1 M.2 Card - 2280 (Key M) ¦ 1 M.2 Card - 2230 (Key E) |

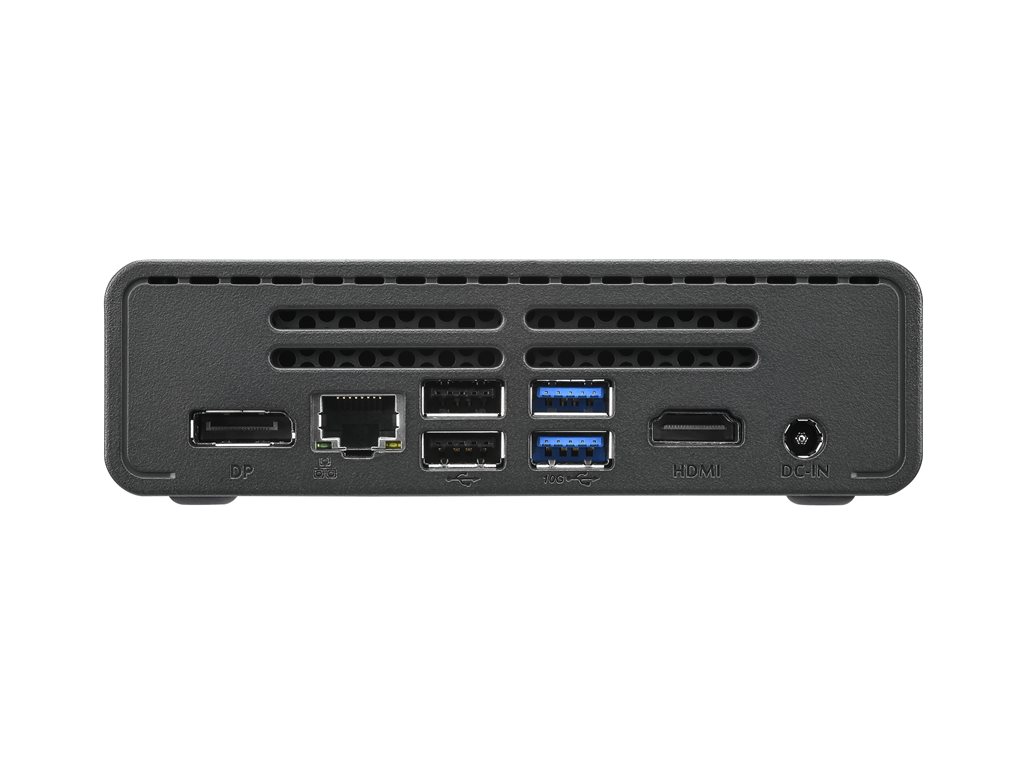

| Interfaces | 1 x microphone - mini-jack (1 front) ¦ 1 x headphones - mini-jack (1 in front) ¦ 1 x Mini DisplayPort (1 rear) ¦ 1 x HDMI (1 rear) ¦ 1 x LAN (Gigabit Ethernet) (1 rear) ¦ 2 x USB 2.0 (2 rear) |
| RAM | |
| Installed Size | 0 GB (installed) / 16 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 1 (total) |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V |
| Power Provided | 65 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | L3 cache - 6 MB |
| Cache Per Processor | 6 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | |
| Sound Output Mode | Stereo |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 5.3 in |
| Depth | 4.5 in |
| Height | 1.5 in |
| Processor / Chipset | |
| CPU | Intel N-series N100 |
| Max Turbo Speed | 3.4 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
