Barebone - mini PC 1 x Ryzen 7 8845HS / up to 5.1 GHz - RAM 0 GB - Radeon 780M - Gigabit Ethernet
| Main Specifications | |
|---|---|

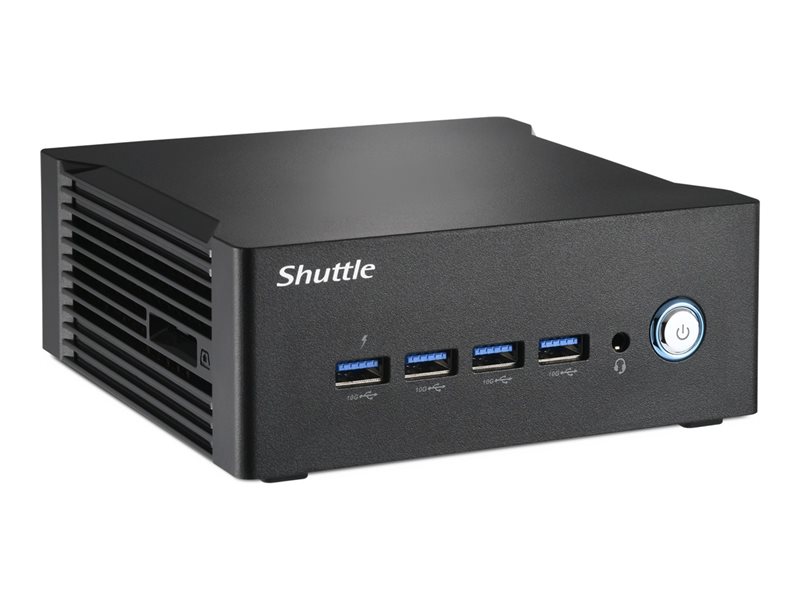

| Product Description | Shuttle XPC nano NA10H7 - mini PC Ryzen 7 8845HS 3.8 GHz - 0 GB - no HDD |
| Type | PC barebone - mini PC |
| Processor | 1 x AMD Ryzen 7 8845HS / 3.8 GHz (up to 5.1 GHz, (8-core) |
| Neural Processor Unit (NPU) | AMD Ryzen AI - up to 16 TOPS |
| Cache Memory | 16 MB |
| Cache Per Processor | 16 MB |
| RAM | 0 GB (installed) / 64 GB (max) - DDR5 SDRAM |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Graphics Controller | AMD Radeon 780M |
| Audio Output | Stereo |
| Networking | 1GbE |
| Power | (50 - 60 Hz) |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 5.2 in x 5.6 in x 2.2 in |
| Weight | 28.22 oz |
| General | |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Expansion / Connectivity | |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 (Key B-M) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 |
| Interfaces | 1 x headphones/microphone ¦ 5 x USB 3.2 Gen 2 ¦ 2 x DisplayPort 1.4/USB4 ¦ 2 x HDMI ¦ 2 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB 2.0 |
| Miscellaneous | |
| Included Accessories | VESA mounting kit |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Compliant Standards | BSMI, FCC, RoHS |
| RAM | |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) |
| Networking | |
| Ethernet Controller | Realtek RTL8125B |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Provided | 120 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Cache Memory | |
| Installed Size | 16 MB |
| Cache Per Processor | 16 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | AMD Radeon 780M |
| Audio Output | |
| Sound Output Mode | Stereo |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 5.2 in |
| Depth | 5.6 in |
| Height | 2.2 in |
| Weight | 28.22 oz |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | SD Memory Card |
| Processor / Chipset | |
| CPU | AMD Ryzen 7 8845HS |
| Clock Speed | 3.8 GHz |
| Max Turbo Speed | 5.1 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | AMD Ryzen AI |
| NPU Performance Up To (TOPS) | 16 TOPS |
| Total Processor Performance Up To (TOPS) | 38 TOPS |
