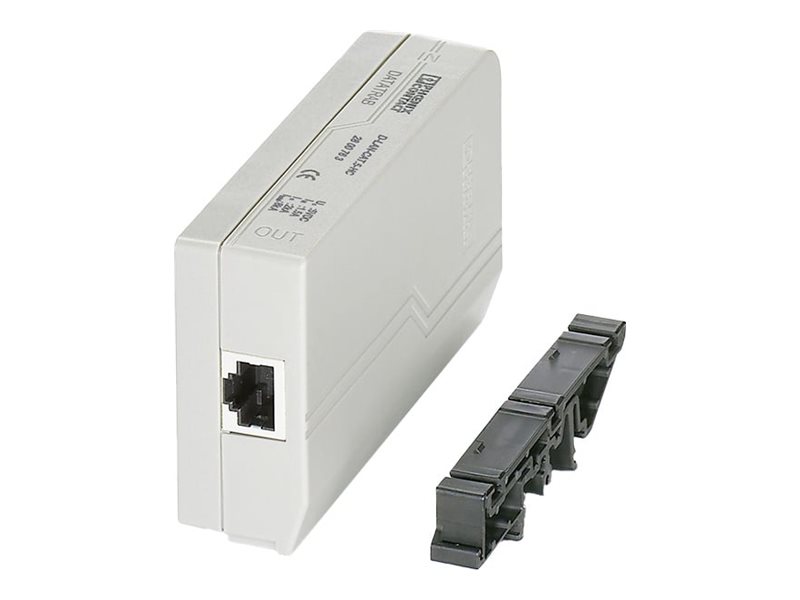

PoE surge protector (DIN rail mountable) - gray, black
| Main Specifications | |
|---|---|
| Product Description | Perle D-LAN-CAT.5-HC - PoE surge protector |
| Device Type | PoE surge protector - DIN rail mountable |
| Weight | 0.88 oz |
| Color | Gray, black |
| Dimensions (WxDxH) | 1.1 in x 3 in x 4.3 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | PoE surge protector - DIN rail mountable |
| Color | Gray, black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - return to factory - 1 year |
| Miscellaneous | |
| Features | PC/ABS housing |
| Compliant Standards | IP20, VDE 0110, IEC 60664-1, IEC 61643-21, EN 61643-21, GB/T 18802.21 2004, China RoHS, China EFUP, EAC, UL, UL 94 V-0, RoHS |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Power Device | |
| Max Electric Current | 1.5 A |
| Dataline Surge Protection | Network - RJ-45 - 1 input line / 1 output line |
| Surge Suppression | Yes |
| Surge Response Time | 1 ns |
| Dimensions & Weight | |
| Width | 1.1 in |
| Depth | 3 in |
| Height | 4.3 in |
| Weight | 0.88 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 6.28 oz |
