Network surveillance camera - bullet - outdoor - vandal / weatherproof - color (Day&Night) - 2 MP - 1920 x 1080 - fixed focal - audio - Ethernet 10Base-T/100Base-TX/1000Base-TX - H.264, H.265, MJPEG, AVC, HEVC - PoE Class 3 - TAA Compliant
| Main Specifications | |
|---|---|

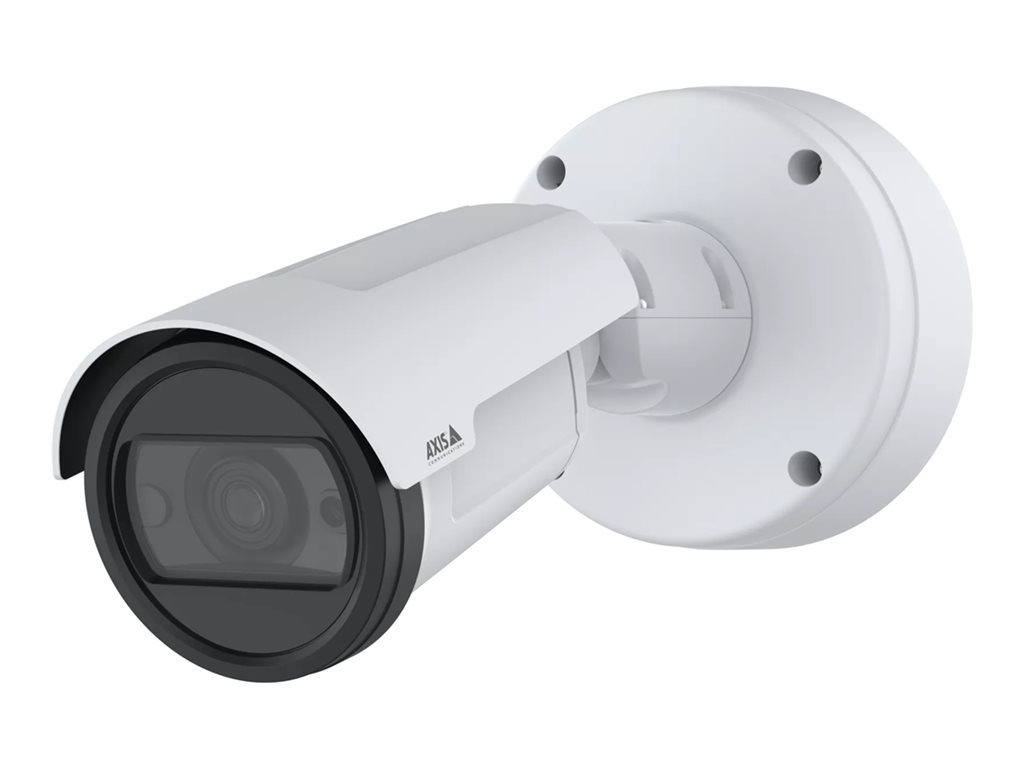

| Product Description | AXIS P1485-LE - network surveillance camera - bullet - TAA Compliant |
| Device Type | Network surveillance camera - fixed - bullet - outdoor - vandal / weatherproof |
| Audio | Yes: speaker pairing, microphone pairing |
| Color | NCS S 1002-B, white |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 2.61 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | PS RGB CMOS - 1/2.8" - 2 MP |
| Minimum Illumination | 0.06 lux F1.7 - 50 IRE ¦ 0.01 lux F1.7 - 50 IRE ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 10.8 mm - 28.2 mm |
| Focus Adjustment | (min distance 8 ft) |
| Lens Iris | F/1.7-1.76 (P-Iris) |
| Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-TX |
| Voltage | DC 10 - 28 V, PoE Class 3 |
| Features | AI-powered, IR-cut filter, hybrid IR filter, deep learning processing unit (DLPU), auto gain control, Pixel Counter Support, remote zoom, remote focus, human detection, Vehicle Detection, Line Crossing Detection, object in area, time in area, crossing counter, occupancy counting, PPE detection, motion detection, trigger capture, Face Recognition, license plate detection, ARTPEC-9 chipset |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -40 °F - 140 °F |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: speaker pairing, microphone pairing |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Localization | Australia, Europe, United Kingdom, United States, Argentina, Brazil, China, Japan, Korea |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Encryption Algorithm | FIPS 140 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| TAA Compliant | Yes |
| Compliant Standards | IP66, IK10, NEMA 4, CSA, UL, cUL, KC, VCCI, RCM, EMC, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC/EN 62471, IS 13252, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC/EN 60529, IEC 60950-22, ISTA 3A, NEMA TS-2, IPv6, USGv6, NIST SP500-267, ETSI EN 303 645, BSI |
| Color | NCS S 1002-B, white |
| Power | |
| Power Requirements | PoE Class 3 |
| Power Device | DC 10 - 28 V 6.1 Watt |
| Software / System Requirements | |
| Software Included | AXIS Object Analytics, AXIS Image Health Analytics |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | H.264, H.265, MJPEG, AVC, HEVC |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Exposure Range | 1/37000 sec - 2 sec |
| Minimum Illumination | 0.06 lux F1.7 - 50 IRE ¦ 0.01 lux F1.7 - 50 IRE ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 164 ft |
| Digital Video Capture Resolution | 640 x 360, 1920 x 1080, 1280 x 800, 320 x 200, 1440 x 1080, 160 x 120 |
| Frame Rate (max) | 60 frames per second |
| Features | AI-powered, IR-cut filter, hybrid IR filter, deep learning processing unit (DLPU), auto gain control, Pixel Counter Support, remote zoom, remote focus, human detection, Vehicle Detection, Line Crossing Detection, object in area, time in area, crossing counter, occupancy counting, PPE detection, motion detection, trigger capture, Face Recognition, license plate detection, ARTPEC-9 chipset |
| Lens Construction | |
| Type | Fixed focal |
| Optical Zoom | 2.61 x |
| Focal Length | 10.8 mm - 28.2 mm |
| Lens Iris | F/1.7-1.76 (P-Iris) |
| Min Focus Distance | 8 ft |
| Horizontal Field of View (degree) | 11 - 29.4 |
| Vertical Field of View (degree) | 6.3 - 16.5 |
| Image Sensor | |
| Type | 2 MP PS RGB CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-TX |
| Network Protocols | IPv4, IPv6, USGv6, ICMP, HTTPS, HTTP, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, RTCP, DHCP, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf, SIP |
