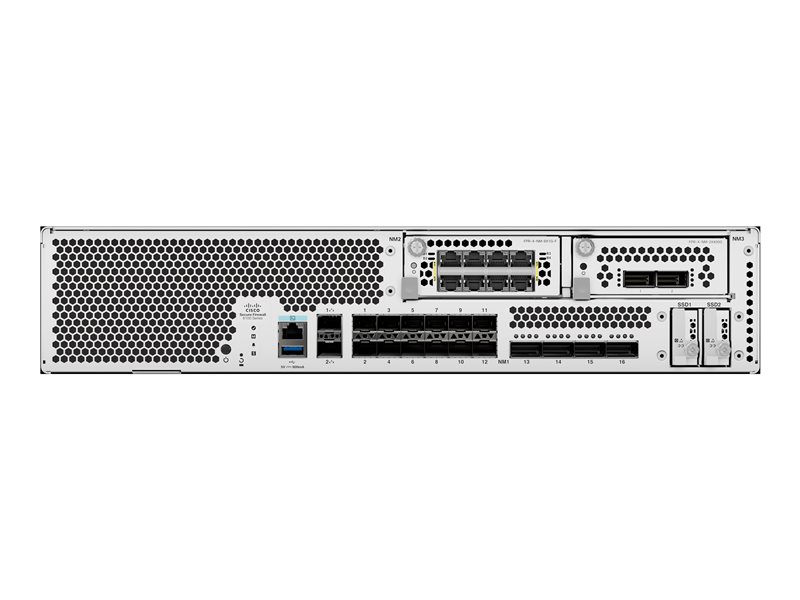

Security appliance - 2U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Cisco Secure Firewall 6160 Threat Defense - security appliance |
| Device Type | Security appliance |
| Form Factor | Rack-mountable - 2U |
| Hard Drive | 3.6 TB x 2 |
| Performance | Maximum throughput FW + AVC (1024B): 520 Gbps ¦ Maximum throughput FW + IPS (1024B): 500 Gbps ¦ Maximum throughput NGFW + AVC + IPS (1024B): 500 Gbps ¦ IPSec VPN throughput (1024B TCP w/Fastpath): 400 Gbps ¦ TLS hardware decryption: 100 Gbps |
| Capacity | Maximum concurrent sessions with AVC: 75000000 ¦ New connections per second with AVC: 1500000 ¦ Maximum VPN peers: 60000 ¦ VRF instances (maximum): 250 |
| Power | AC 100-240 V (50 - 60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 16.9 in x 32.5 in x 3.5 in |
| Weight | 65.92 lbs |
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 2U |
| Width | 16.9 in |
| Depth | 32.5 in |
| Height | 3.5 in |
| Weight | 65.92 lbs |
| Expansion / Connectivity | |
| Interfaces | 12 x 50Gb Ethernet - SFP56 ¦ 4 x 40Gb Ethernet/100Gb Ethernet/200Gb Ethernet - QSFP56 ¦ 2 x management - SFP56 ¦ 1 x serial / console - RJ-45 ¦ 1 x USB 3.0 - Type A |
| Miscellaneous | |
| MTBF | 212,000 hours |
| Compliant Standards | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, EN 62368-1, IEC 62368-1, AS/NZS 62368-1, FCC CFR 47 Part 15 Class A, AS/NZS CISPR22 Class A, CISPR 22 Class A, EN 55022 Class A, ICES-003 Class A, VCCI Class A, EN 61000-3-2, EN61000-3-3, KN22 Class A, CNS 13438 Class A, EN 300386, TCVN 7189, EN55024, CISPR 24, KN24, TVCN 7317, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11 |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Performance | Maximum throughput FW + AVC (1024B): 520 Gbps ¦ Maximum throughput FW + IPS (1024B): 500 Gbps ¦ Maximum throughput NGFW + AVC + IPS (1024B): 500 Gbps ¦ IPSec VPN throughput (1024B TCP w/Fastpath): 400 Gbps ¦ TLS hardware decryption: 100 Gbps |
| Capacity | Maximum concurrent sessions with AVC: 75000000 ¦ New connections per second with AVC: 1500000 ¦ Maximum VPN peers: 60000 ¦ VRF instances (maximum): 250 |
| Status Indicators | Link/activity/speed, management, alarm, system, power, SFP, SSD activity |
| Features | High Availability, reset button, 1 fan, auto duplex mode, auto-uplink (auto MDI/MDI-X) |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 1740 watt |
| Power Provided | 3000 watt |
| Software / System Requirements | |
| Software Included | Cisco Threat Defense 7.7 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Hard Drive | SSD 3.6 TB x 2 |
