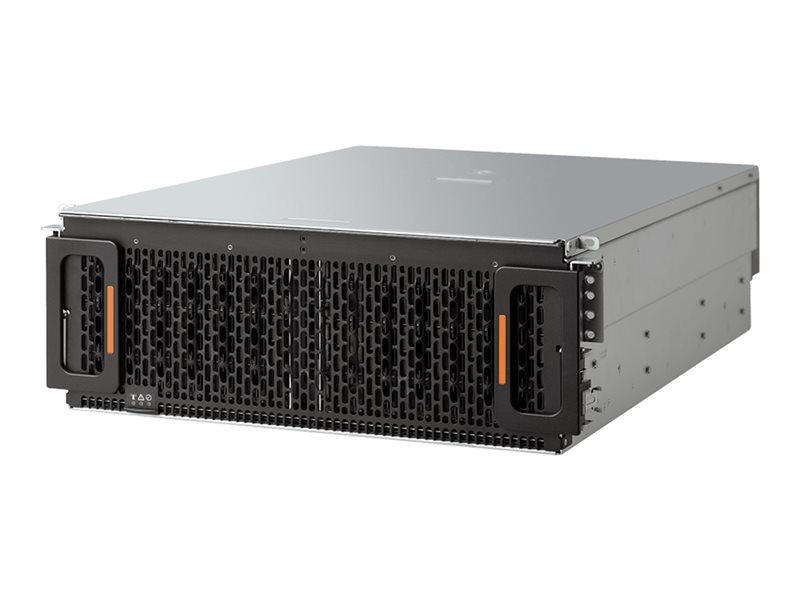

Storage enclosure - 624 TB - 60 bays (SATA-600 / SAS-3) - HDD 26 TB x 24 - rack-mountable - 4U
| Main Specifications | |
|---|---|
| Product Description | WD Ultrastar Data60 - storage enclosure |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable - 4U |
| Total Array Capacity | 624 TB |
| Max Supported Capacity | 1.56 PB |
| Installed Devices / Modules Qty | 24 (installed) / 60 (max) |
| Supported Drives | SATA-600 / SAS-3 |
| Built-in Devices | 2 x I/O module |
| Hard Drive | 24 x 26 TB HDD SAS 12Gb/s - hot-swap - 512e Crypto, Secure Erase function - Western Digital |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.6 in x 28 in x 6.9 in |
| Weight | 175.05 lbs |
| General | |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable - 4U |
| Expansion / Connectivity | |
| Expansion Bays | 60 (total) / 36 (free) x hot-swap - 3.5" |
| Interfaces | 24 x SAS 12Gb/s - Mini SAS HD ¦ 2 x Ethernet 1000 (management) - RJ-45 |
| Miscellaneous | |
| Features | SCSI Enclosure Services (SES), IsoVibe vibration isolation technology, ArcticFlow thermal zone cooling technology |
| Processor | |
| CPU | No CPU |
| Storage | |
| Total Array Capacity | 624 TB |
| Max Supported Capacity | 1.56 PB |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 24 x 26 TB |
| Interface Type | SAS 12Gb/s |
| Features | 512e Crypto, Secure Erase function |
| Manufacturer | Western Digital |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 28 in |
| Height | 6.9 in |
| Weight | 175.05 lbs |
| Chassis | |
| Built-in Devices | 2 x I/O module |
| Installed Devices / Modules Qty | 24 |
| Supported Devices / Modules Qty | 60 |
| Supported Drives | SATA-600 / SAS-3 |
