Mini Ryzen 5 220 / up to 4.9 GHz - RAM 16 GB - SSD 512 GB - NVMe, TLC - Radeon 740M - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4 - Win 11 Pro - monitor: none - keyboard: US - jack black
| Main Specifications | |
|---|---|

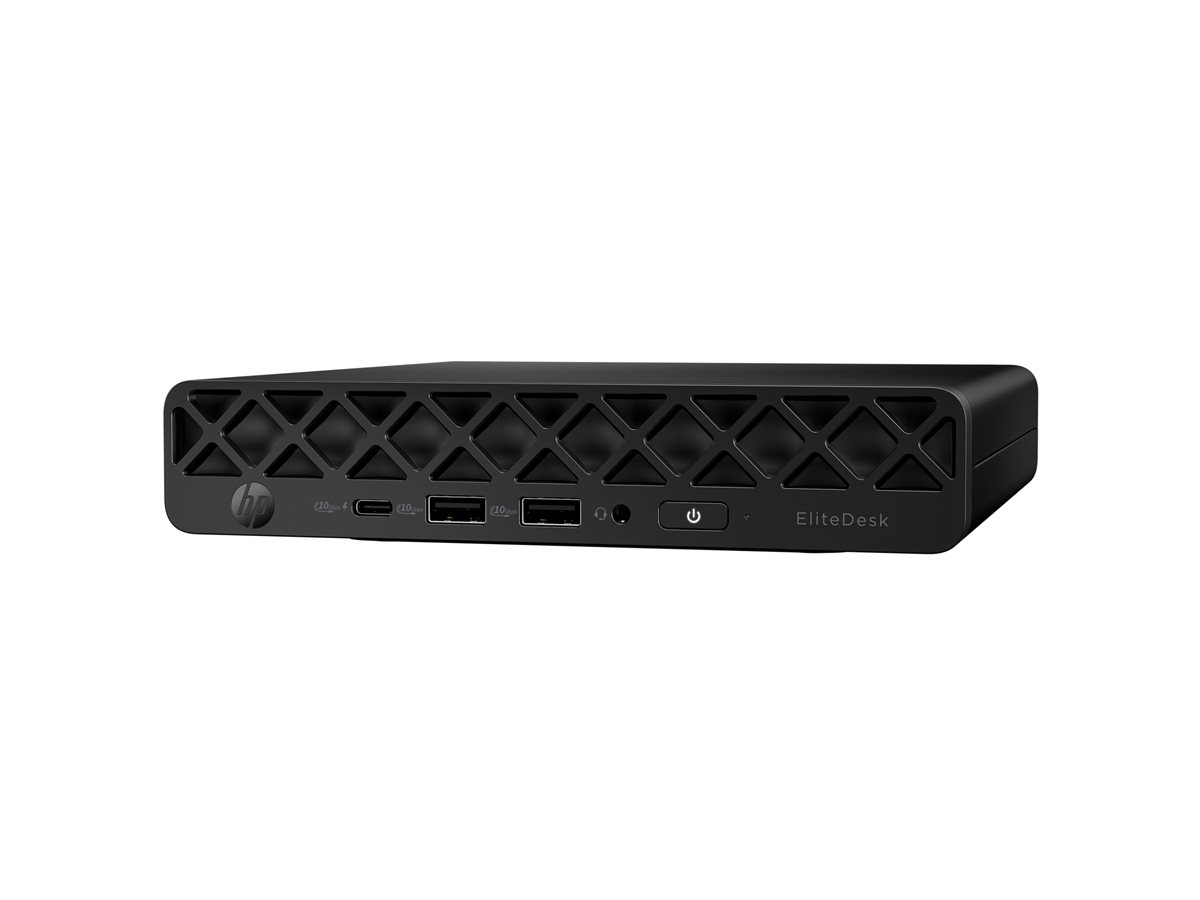

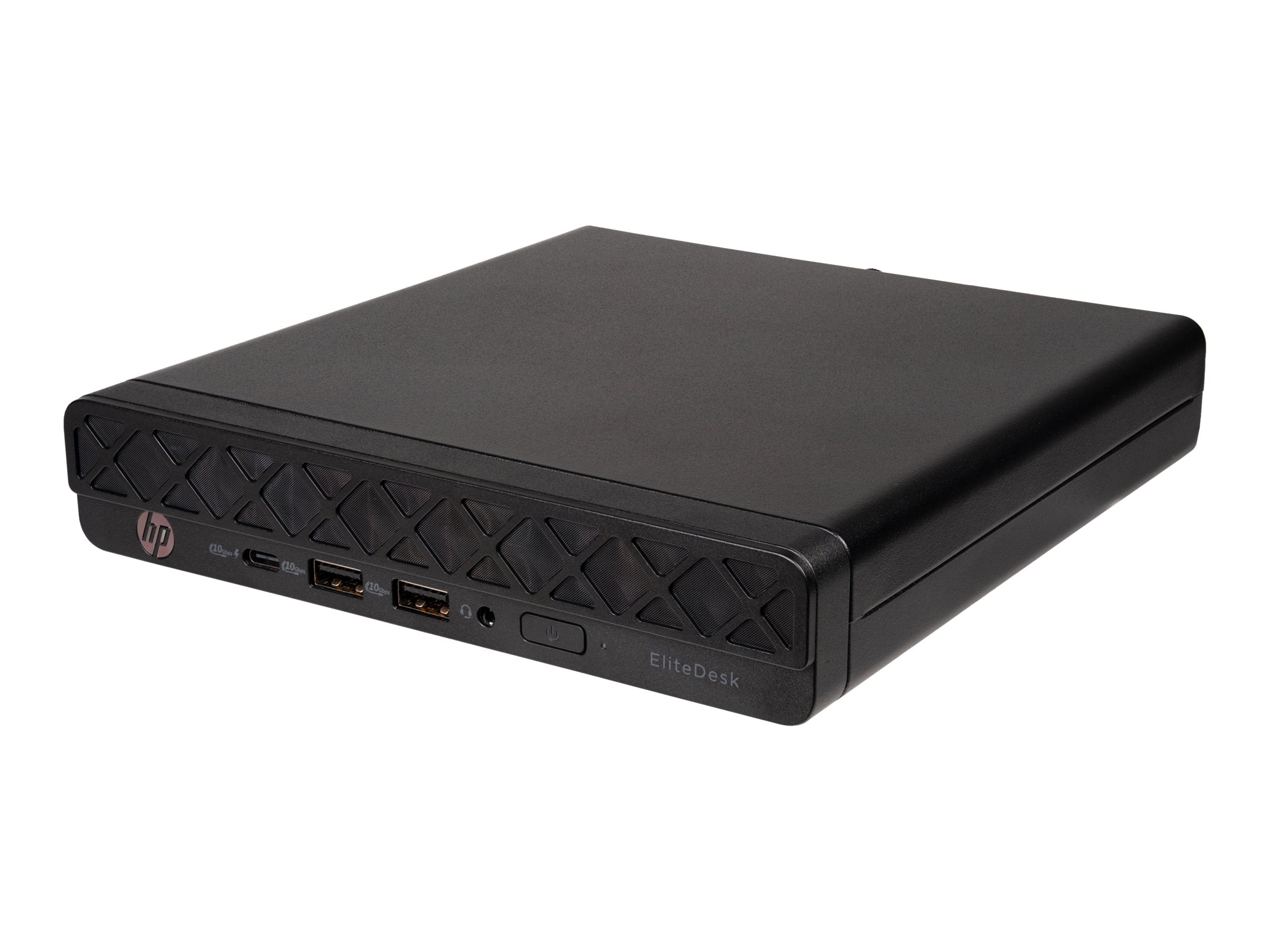

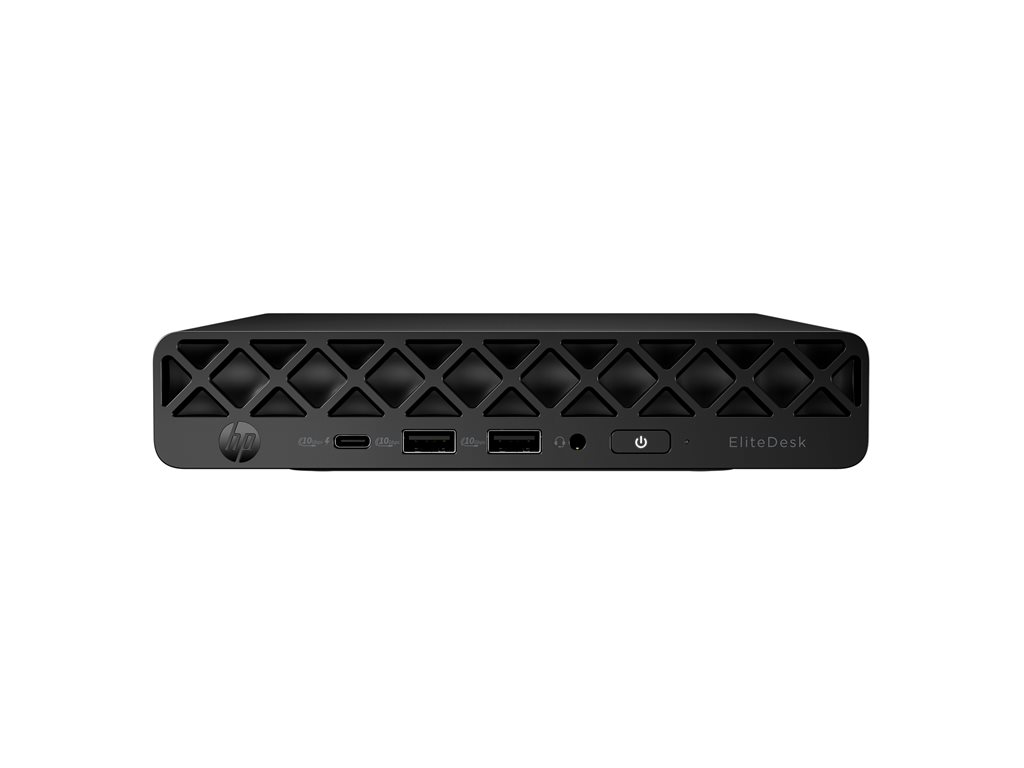

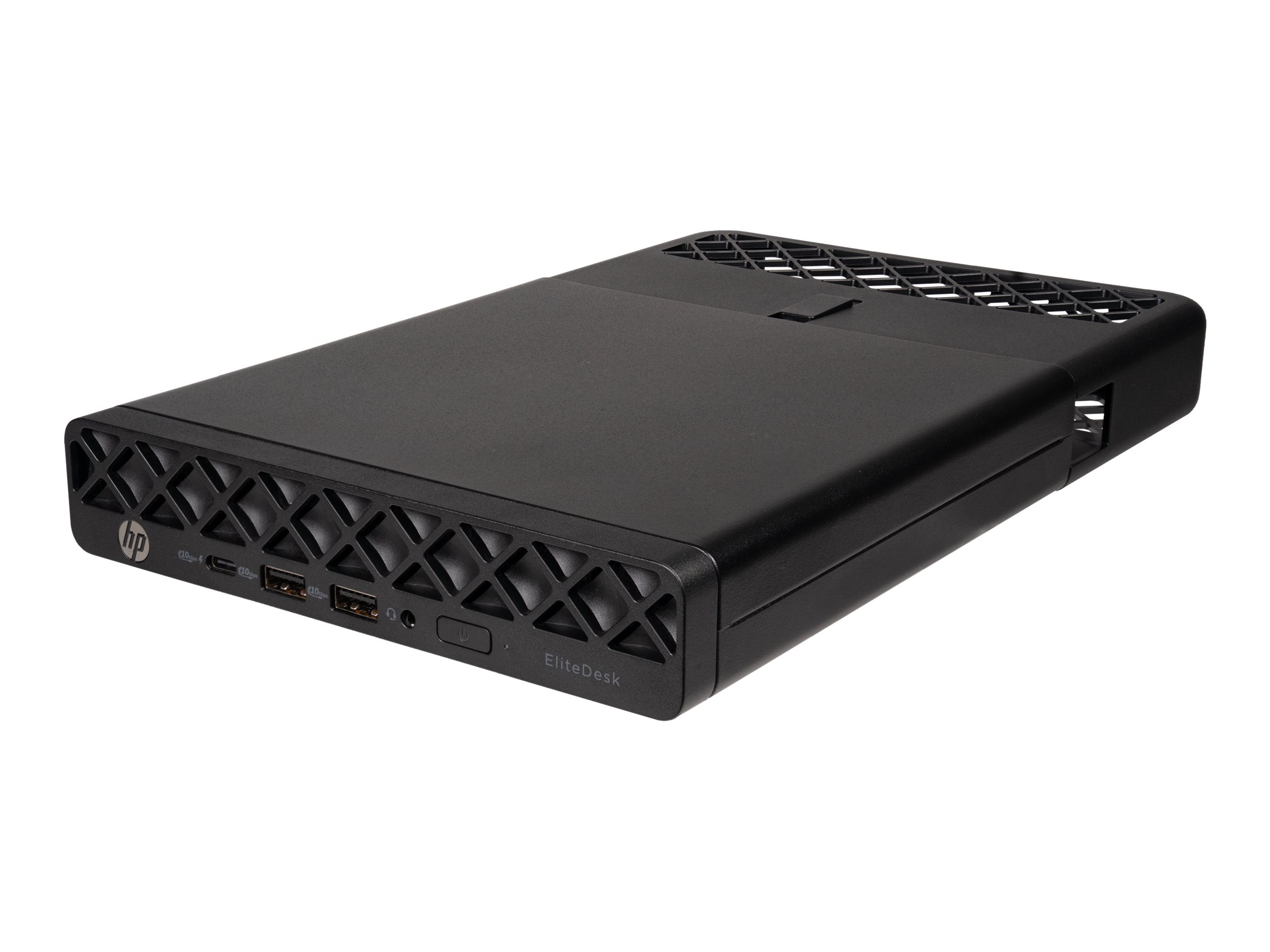

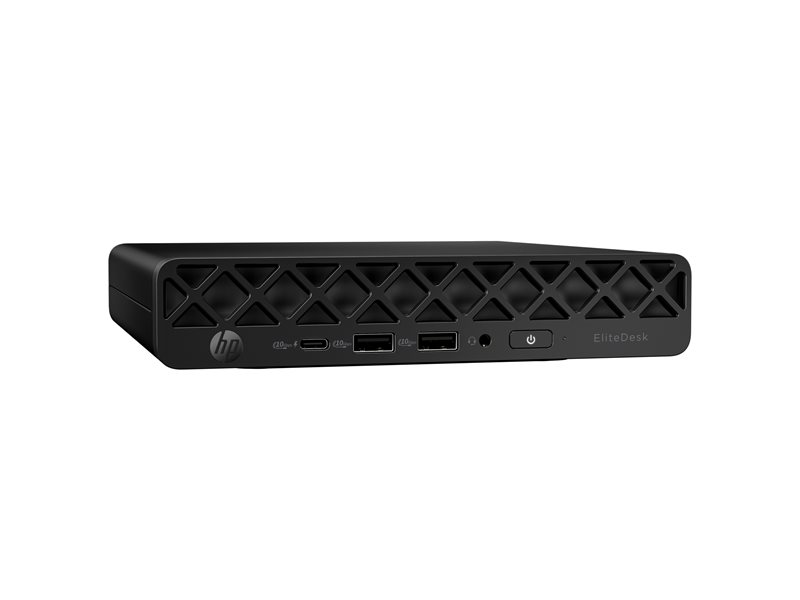

| Product Description | HP EliteDesk 8 G1a - mini Ryzen 5 220 - 16 GB - SSD 512 GB - US |
| Type | Personal computer - mini |
| EU Data Act | Https://compliance-euda.hp.com/ |
| Localization | Language: English / region: United States |
| Processor | AMD Ryzen 5 220 (up to 4.9 GHz, (6-core) |
| Processor Main Features | 12 Threads |
| Cache Memory | 16 MB L3 cache |
| Cache Per Processor | 16 MB |
| RAM | 16 GB DDR5 SDRAM |
| Hard Drive | SSD 512 GB - PCI Express 4.0 - NVM Express (NVMe), triple-level cell (TLC) |
| Optical Storage | No optical drive |
| Graphics Controller | AMD Radeon 740M |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6, Bluetooth |
| Keyboard | US |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP Hotkey Support, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP Client Catalog (free download), HP Setup Integrated OOBE, HP Image Assistant (free download), HP Notifications, HP Sure Click, HP Sure Run, HP Sure Recover, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP Client Management Script Library (free download), HP DriveLock, HSA Fusion for Commercial, HSA Telemetry for Commercial, HP BIOS Recovery, Absolute Persistence Module, HP Smart Support, HP Manageability Integration Kit (free download), HP Connect for Microsoft Endpoint Manager, HP Patch Assistant (free download), HP Wolf Security for Business, HP PC Hardware Diagnostics Windows, HP Services Scan, HP Sure Start, HP Driver Packs (free download), myHP with Multicamera support, Audio Permanent Disable, Poly Lens, Secured-Core PC Enable, BIOS Update via Network |
| Color | Jack black |
| Dimensions (WxDxH) | 7 in x 7.1 in x 1.3 in |
| Weight | 3.13 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Carbon Footprint | 153.948 kg carbon emissions |
| General | |
| Type | Personal computer |
| EU Data Act | Https://compliance-euda.hp.com/ |

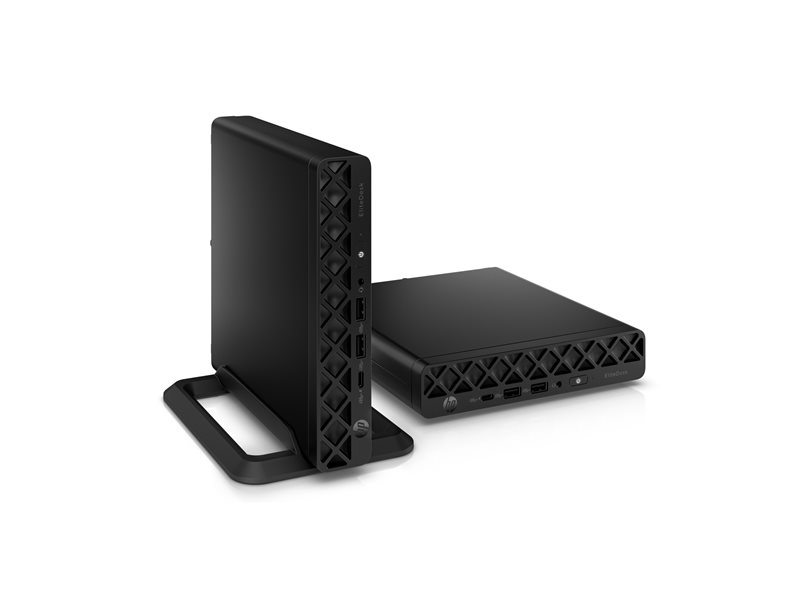

| Product Form Factor | Mini |
| Sensors | HP Tamper Lock |
| Color | Jack black |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Slots | 2 M.2 Card - 2280 (for internal storage) ¦ 1 M.2 Card - 2230 (for WLAN) |

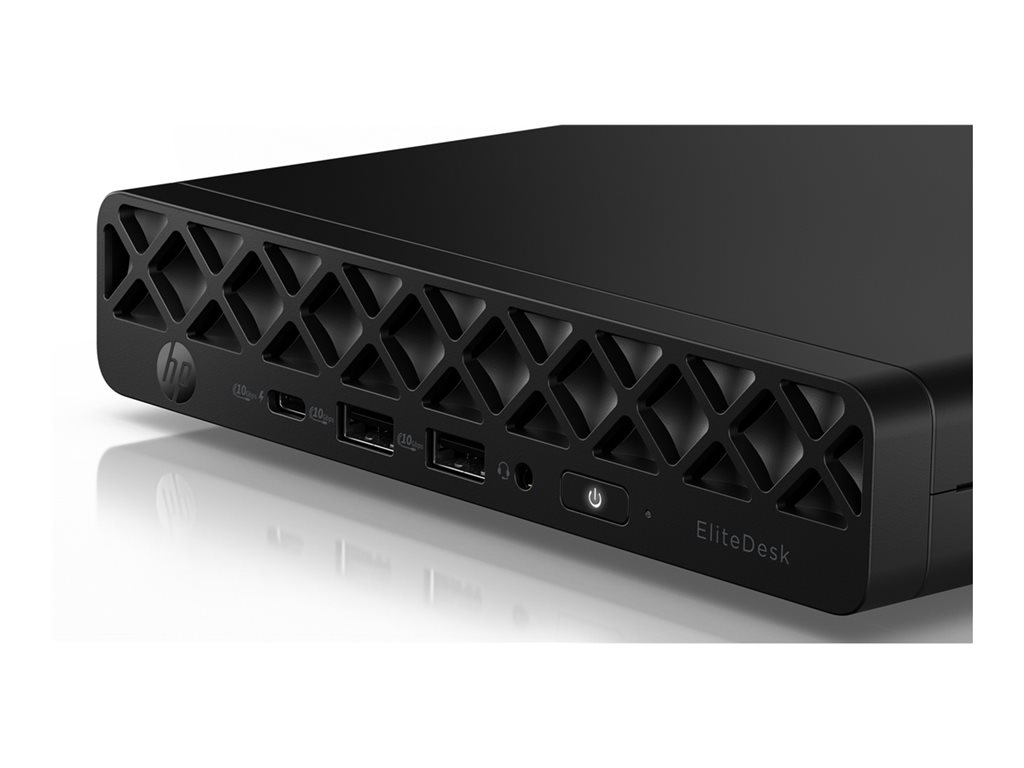

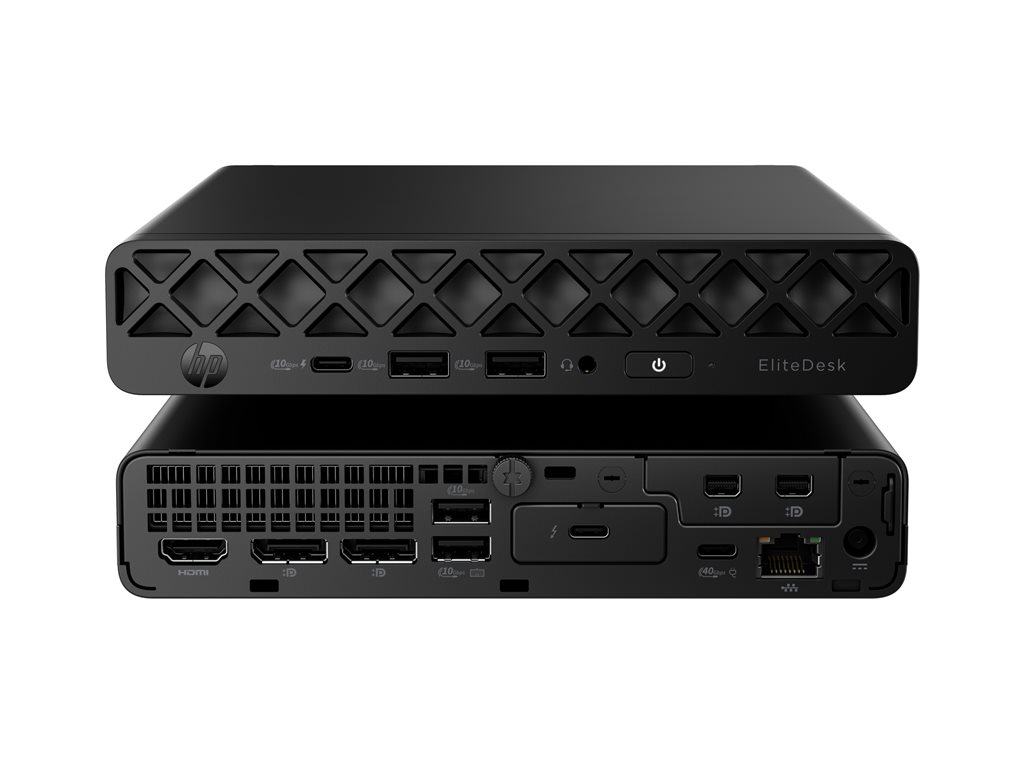

| Interfaces | 1 x USB-C 3.2 Gen 2 (1 front) ¦ 4 x USB 3.2 Gen 2 (2 front, 2 rear) ¦ 1 x headphones/microphone (1 front) (CTIA and OMTP headset support) ¦ 1 x HDMI (1 rear) ¦ 1 x LAN - RJ-45 (1 rear) ¦ 2 x DisplayPort 2.1 (2 rear) ¦ 2 x antenna (2 rear) ¦ 1 x USB4 (1 rear) (100W USB Power Delivery) ¦ 1 x HDMI |
| Miscellaneous | |
| Theft/Intrusion Protection | Chassis intrusion sensor |
| RAM | |
| Installed Size | 16 GB |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 5600 MT/s |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) / 1 (empty) |
| Configuration Features | 1 x 16 GB |
| Networking | |
| Ethernet Controller | Realtek RTL8111EPP |
| Wireless LAN Supported | Yes |
| Wireless NIC | Realtek RTL8852BE-VT |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4 |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power adapter |
| Power Provided | 65 watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 90% RH |
| Cache Memory | |
| Installed Size | L3 cache - 16 MB |
| Cache Per Processor | 16 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | AMD Radeon 740M |
| Video Interfaces | HDMI, DisplayPort |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP Hotkey Support, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP Client Catalog (free download), HP Setup Integrated OOBE, HP Image Assistant (free download), HP Notifications, HP Sure Click, HP Sure Run, HP Sure Recover, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP Client Management Script Library (free download), HP DriveLock, HSA Fusion for Commercial, HSA Telemetry for Commercial, HP BIOS Recovery, Absolute Persistence Module, HP Smart Support, HP Manageability Integration Kit (free download), HP Connect for Microsoft Endpoint Manager, HP Patch Assistant (free download), HP Wolf Security for Business, HP PC Hardware Diagnostics Windows, HP Services Scan, HP Sure Start, HP Driver Packs (free download), myHP with Multicamera support, Audio Permanent Disable, Poly Lens, Secured-Core PC Enable, BIOS Update via Network |
| Hard Drive | |
| Type | SSD |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe), triple-level cell (TLC) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 7 in |
| Depth | 7.1 in |
| Height | 1.3 in |
| Weight | 3.13 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 18.9 in |
| Shipping Depth | 4.1 in |
| Shipping Height | 9.4 in |
| Shipping Weight | 6.5 lbs |
| Keyboard | |
| Keyboard Name | HP 320K v2 |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 125 |
| Interface | USB |
| Processor / Chipset | |
| CPU | AMD Ryzen 5 220 |
| Max Turbo Speed | 4.9 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | 12 Threads |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| Carbon Footprint | 153.948 kg carbon emissions |
| Manufacturing (kg CO2e) | 140.657 |
| Logistics (kg CO2e) | 0.886 |
| Use (kg CO2e) | 11.354 |
| EOL (kg CO2e) | 1.051 |
| Total Carbon w/o Use Phase (kg CO2e) | 142.594 |
