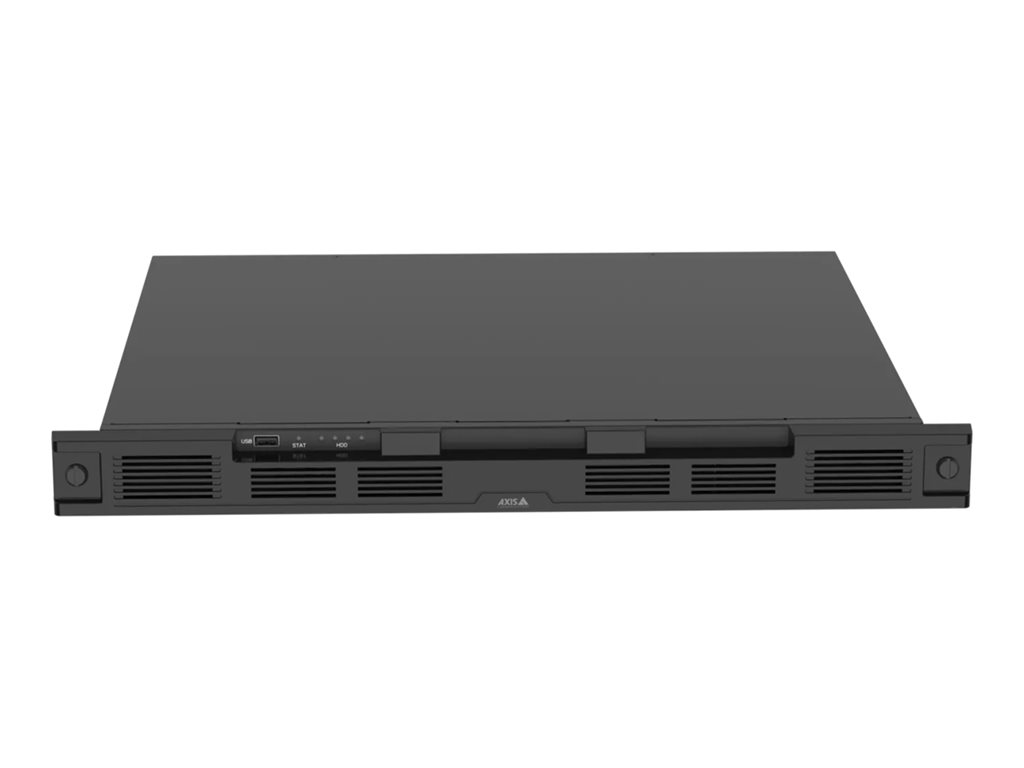

NVR - 16 channels - 4 x 4 TB - networked - 1U - rack-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | AXIS S4000 - standalone NVR - 16 channels - TAA Compliant |
| Device Type | NVR - 16 channels - networked - rack-mountable - 1U |
| IP Cameras Supported | 16 |
| Compression Format | H.264, H.265, MPEG-4, AVC, HEVC, MPEG-H Part 2, AAC |
| Hard Drive | 4 x 4 TB |
| Hard Drive(s) Supported | Quantity: 4 |
| Voltage | 100 - 240 V |
| Dimensions (WxDxH) | 19.1 in x 15.8 in x 1.7 in |
| Weight | 20.33 lbs |
| Country Kits | United States |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5 years |
| General | |
| Device Type | NVR - rack-mountable - 1U |
| Video Channels | 16 |
| IP Cameras Supported | 16 |
| Compression Format | H.264, H.265, MPEG-4, AVC, HEVC, MPEG-H Part 2, AAC |
| Package Content | Rack mount rails, front cover, rubber feet, power cable, screws |
| OS Provided | AXIS OS |
| Country Kits | United States |
| TAA Compliant | Yes |
| Compliant Standards | UL/cUL, AS/NZ CISPR 32 Class A, EN 55035 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ICES-3(A)/NMB-3(A), IRCM, VCCI, FCC Part 15 B Class A, AS/NZS 62368.1: 2018, CAN/CSA-C22.2 No.62368-1, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 60529 IP20, NIST SP500-267, ETSI EN 303 645, IEEE 802.3at, IEEE 802.1x, IEEE 802.1ar, FIPS 140-2 Level 2, X.509 |
| Color | Black NCS S 9000-N |
| Warranty | 5 years |
| Networking | |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, TLS, SFTP, SMTP, Bonjour, UPnP, DNS, DNSv6, NTP, NTS, RTSP, TCP, UDP, IGMP, IGMPv2, IGMPv3, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP |
| Features | Default RAID 5, support RAID 0, support RAID 1, support RAID 10, support RAID 5, support RAID 6, 305W PoE power budget, event notification, password protection, signed firmware, digest authentication, AES encryption, secure boot, secure keystore, Axis device ID, Axis Edge Vault, Trusted Platform Module 2.0 (TPM 2.0), hot swappable, 802.1x authentication |
| Power | |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 31 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Hard Drive | |
| Quantity Installed | 4 |
| Quantity Supported | 4 |
| Capacity | 4 TB |
| Connections | |
| Network Port | 10/100/1000Base-T / SFP |
| Other Ports | USB 3.0 x 1, RJ-45 x 2, SFP, USB 2.0 |
| Dimensions & Weight | |
| Width | 19.1 in |
| Depth | 15.8 in |
| Height | 1.7 in |
| Weight | 20.33 lbs |
| Security DVR | |
| Networked | Yes |
| Features | Recording data rate up to 256 Mbps |
