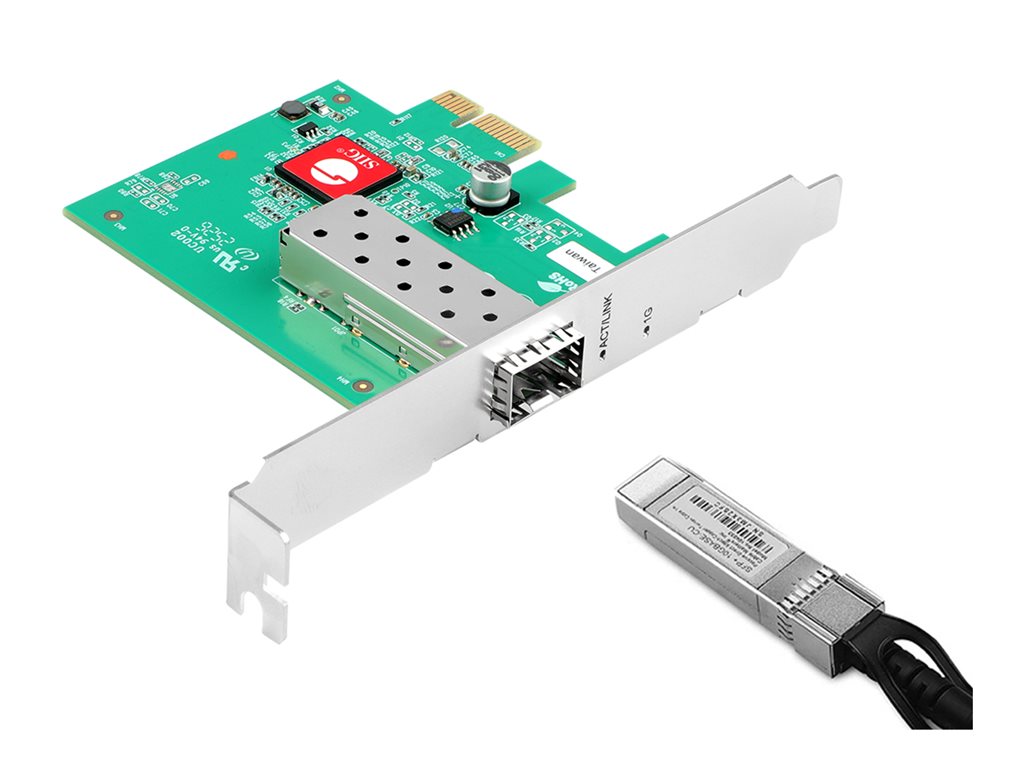

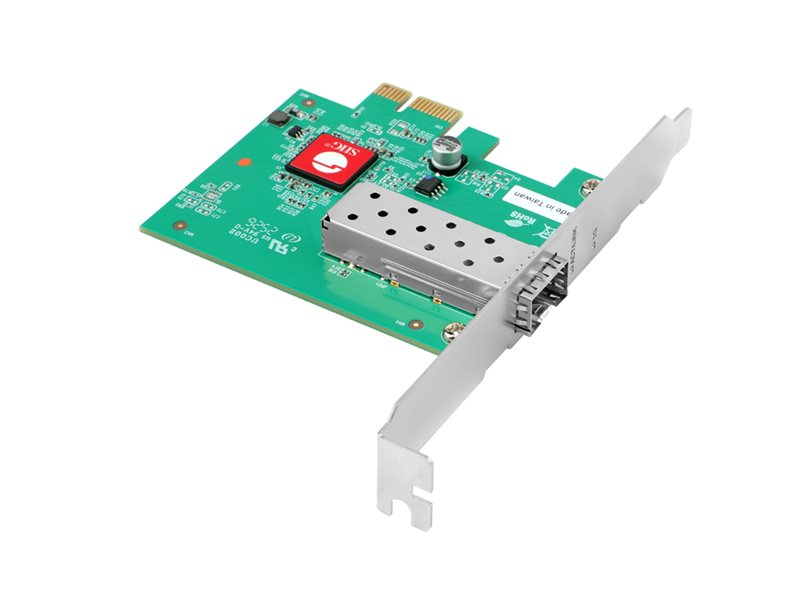

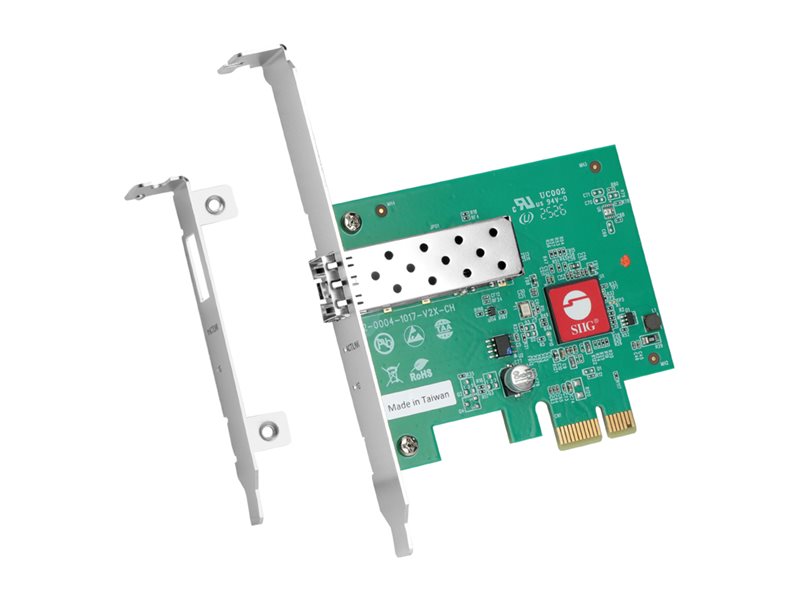

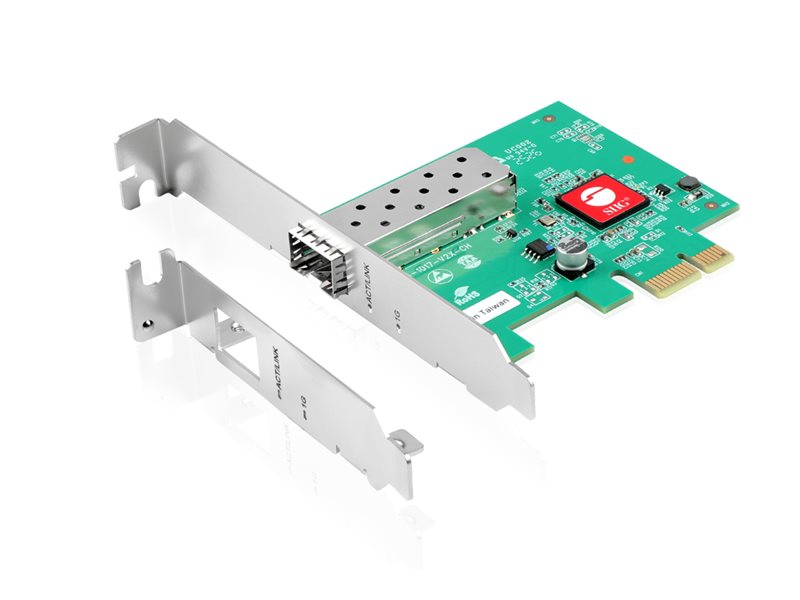

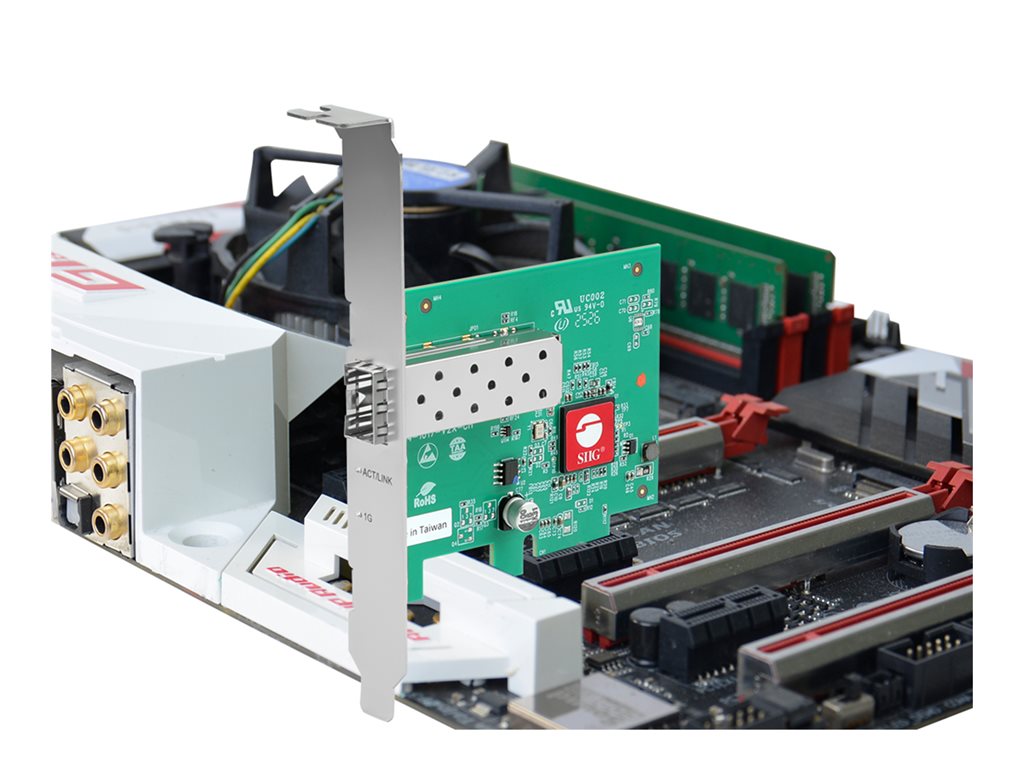

Network adapter - PCIe 2.0 low profile - SFP (mini-GBIC) - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | SIIG - network adapter - PCIe 2.0 - SFP (mini-GBIC) - TAA Compliant |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Ports | SFP (mini-GBIC) |
| Dimensions (WxDxH) | 0.8 in x 4.8 in x 3.6 in |
| Weight | 1.06 oz |
| Cabling Type | Ethernet 10/100/1000Base-T, Ethernet 1000Base-X |
| Data Link Protocol | 100Mb LAN, 1GbE, 10Mb LAN |
| Data Transfer Rate | 1.25 Gbps |
| Capacity | Jumbo frame size: 9.6 KB |
| Processor | 1 x Broadcom BCM5720 |
| Compliant Standards | IEEE 1588-2008, IEEE 802.1as, IEEE 802.3x, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3ap, IEEE 802.3z |
| System Requirements | Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows Server 2012 R2 (32/64 bits), Microsoft Windows Server 2016 (32/64 bits), Microsoft Windows Server 2019 (32/64 bit) |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000 - SFP (mini-GBIC) - female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Ports | SFP (mini-GBIC) |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10/100/1000Base-T, Ethernet 1000Base-X |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, Ethernet |
| Data Transfer Rate | 1.25 Gbps |
| Capacity | Jumbo frame size: 9.6 KB |
| Status Indicators | Link/activity |
| Features | SGMII, SerDes technology, IOV, flow control, EEE, Power Management Protocol Offload, WOL, VLAN Tagging |
| Compliant Standards | IEEE 1588-2008, IEEE 802.1as, IEEE 802.3x, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3ap, IEEE 802.3z |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows Server 2012 R2 (32/64 bits), Microsoft Windows Server 2016 (32/64 bits), Microsoft Windows Server 2019 (32/64 bit) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Processor / Memory | |
| Processor | 1 x Broadcom BCM5720 |
| Dimensions & Weight | |
| Width | 0.8 in |
| Depth | 4.8 in |
| Height | 3.6 in |
| Weight | 1.06 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.4 in |
| Shipping Depth | 5.5 in |
| Shipping Height | 0.9 in |
| Shipping Weight | 3.88 oz |
