Router 1GbE - TAA Compliant
| Main Specifications | |
|---|---|

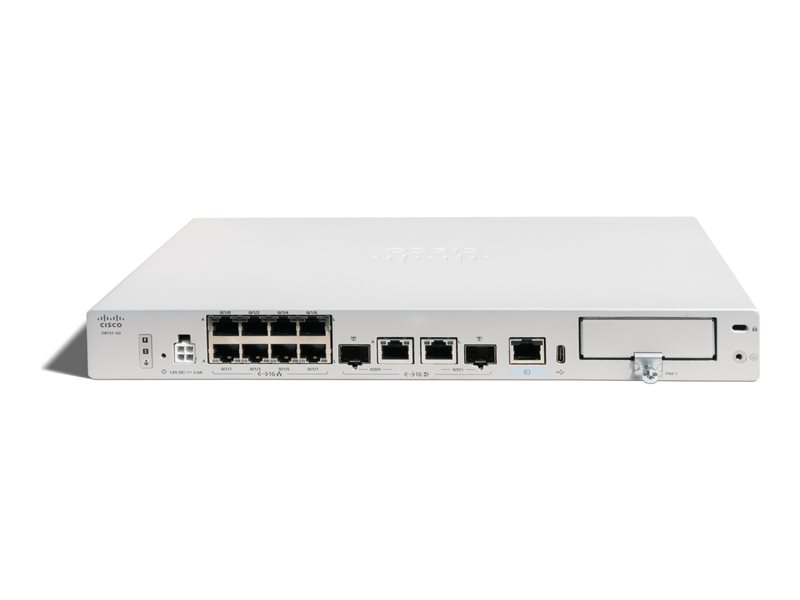

| Product Description | Cisco C8151-G2 - router - desktop - TAA Compliant |
| Device Type | Router |
| Enclosure Type | Desktop - 1U |
| Data Link Protocol | Gigabit Ethernet |
| Performance | Forwarding throughput (512-byte packet size): 5.6 Gbps ¦ IPsec throughput: 1.5 Gbps ¦ SD-WAN throughput: 900 Mbps ¦ Threat protection (EMIX): 1 Gbps |
| Features | SD-WAN support, QoS, reset button, security slot (Kensington security lock compatible), fanless |
| Dimensions (WxDxH) | 8.5 in x 12.7 in x 1.6 in |
| Weight | 5.09 lbs |
| System Requirements | Cisco IOS XE 17.18.1 or later |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Router |
| Enclosure Type | Desktop - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Performance | Forwarding throughput (512-byte packet size): 5.6 Gbps ¦ IPsec throughput: 1.5 Gbps ¦ SD-WAN throughput: 900 Mbps ¦ Threat protection (EMIX): 1 Gbps |
| Features | SD-WAN support, QoS, reset button, security slot (Kensington security lock compatible), fanless |
| Compliant Standards | UL 60950-1, CSA 60950-1, UL 62368-1, CSA 62368-1, EN 62368-1, IEC 62368-1, EN 55032, 47 CFR Part 15, ICES-003, VCCI-CISPR 32, AS/NZS CISPR 32, CNS 15936, EN 300 386, EN 55035, EN55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, EN 61000-6-1 |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Status Indicators | Status, beaconing |
| Expansion / Connectivity | |
| Interfaces | LAN: 6 x 1Gb Ethernet - RJ-45 ¦ WAN: 2 x 1Gb Ethernet - RJ-45 ¦ WAN: 2 x 1Gb Ethernet - SFP (mini-GBIC) ¦ USB 3.0: Type C ¦ Console: 1 x RJ-45 ¦ WAN / LAN: 2 x 1Gb Ethernet - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x Pluggable Interface Module (PIM) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - return to factory - 2 years - response time: 10 days |
| Miscellaneous | |
| MTBF | 100,000 hours |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter - 66 watt |
| Software / System Requirements | |
| OS Required | Cisco IOS XE 17.18.1 or later |
| Software Requirements | Cisco Catalyst SD-WAN Manager 20.18.1 or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 8.5 in |
| Depth | 12.7 in |
| Height | 1.6 in |
| Weight | 5.09 lbs |
