Barcode scanner - handheld - SR - 2D imager - decoded - RS-232, USB
| Main Specifications | |
|---|---|

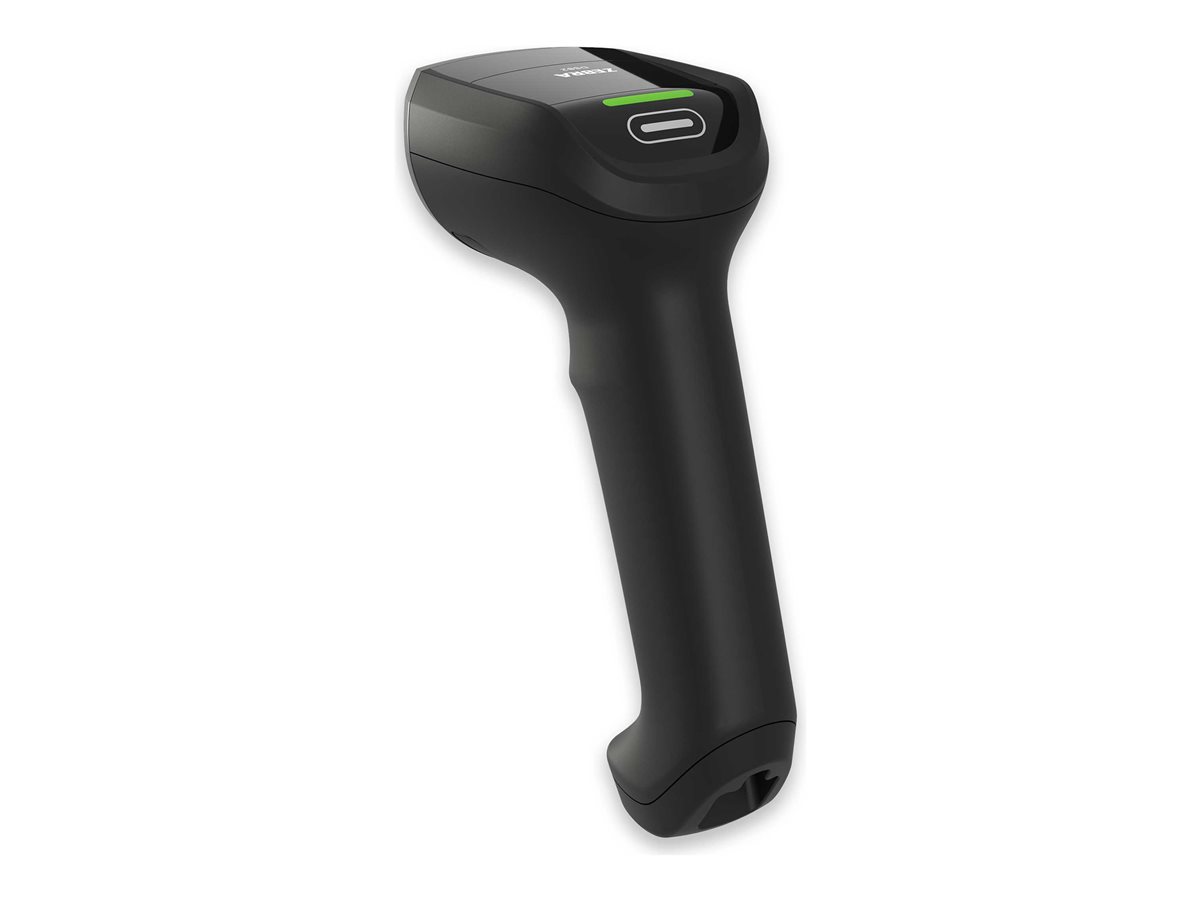

| Product Description | Zebra DS82 Series DS8208 - barcode scanner |
| Type | Barcode scanner - handheld - RS-232, USB - decoded |
| Color | Midnight black |
| Minimum Bar Width | 3 mil |
| Scan Engine Focus Range | Standard Range (SR) |
| Scan Element Type | 2D imager - green LED |
| Sensor Resolution | 1600 x 1200 |
| Connectivity Technology | Wired |
| Dimensions (WxDxH) | 2.7 in x 4.1 in x 6.5 in |
| Weight | 6.23 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Type | Barcode scanner - handheld |
| Color | Midnight black |
| Expansion / Connectivity | |
| Interfaces | 1 x USB / RS-232 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-6-2, EN 60601-1-2, IP52, EN 300 328, EN 301 489-1, EN 62479, EN 62368-1, IEC 62368-1, IEC/EN 62471, EN 55032, UL 62368-1, EN 55035, FCC CFR47 Part 2.1093, EN 301 489-17, EN/IEC 63000:2018, EN 50663, FIPS 140-3, ICES-003 issue 7 Class B, FCC 47 CFR Part 15 Subpart B Class B, RSS-102 Issue 6, EN 303 417, CAN/CSA-C22.2 No. 62368-1-19 |
| Power | |
| Electric Current Required | 450 mA (operating), 90 mA (standby) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Drop Specification | 10 ft to concrete |
| Dimensions & Weight | |
| Width | 2.7 in |
| Depth | 4.1 in |
| Height | 6.5 in |
| Weight | 6.23 oz |
| Barcode | |
| Interface Type | RS-232, USB |
| Minimum Bar Width | 3 mil |
| Scan Engine Focus Range | Standard Range (SR) |
| Scan Element Type | 2D imager - green LED |
| Sensor Resolution | 1600 x 1200 |
| Light Source Wave Length | 524 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 41 in |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Decode Capability | EAN/JAN, Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR code, Han Xin, Korean 3 of 5, Base 32, US currency serial number, Composite Codes, SecurPharm, Digimarc Barcode, Postal Code, Aztec, MICR |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | LED indicator, vibration |
| Features | White LEDs illumination, 8 kV ESD protection (direct discharge), 8 kV ESD protection (indirect discharge), 16 kV ESD protection (air discharge) |
