LED monitor - 22" (21.5" viewable) - touchscreen - 1920 x 1080 Full HD (1080p) @ 100 Hz - IPS - 312 cd/m² - 1300:1 - HDMI, VGA, DisplayPort - speakers
| Main Specifications | |
|---|---|

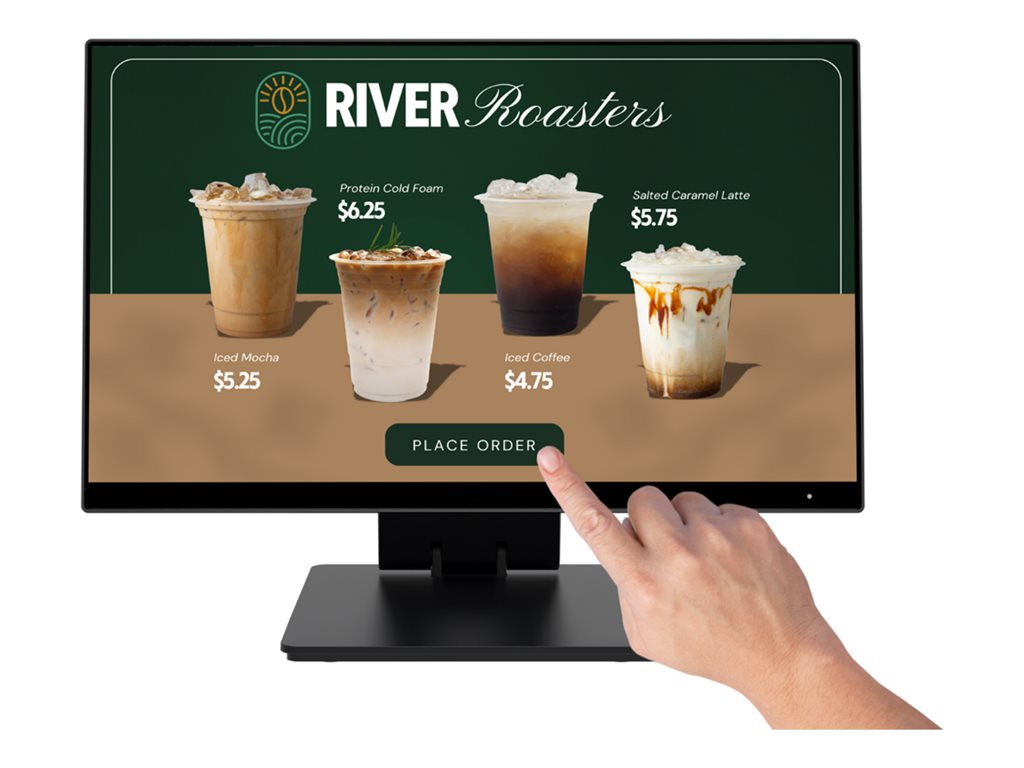

| Product Description | Planar Helium PCT2275 - LED monitor - Full HD (1080p) - 22" |
| Device Type | LED-backlit LCD monitor - 22" - touchscreen |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2465919 |
| Energy Class | Class E |
| Features | Touchscreen, USB 3.2 Gen 1 hub |
| Panel Type | IPS |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 100 Hz |
| Pixel Pitch | 0.24795 mm |
| Brightness | 312 cd/m² |
| Contrast Ratio | 1300:1 |
| Color Support | 16.7 million colors |
| Input Connectors | HDMI, VGA, DisplayPort |
| Display Position Adjustments | Tilt |
| Screen Coating | Planar ERO protective glass, anti-glare |
| Voltage | AC 100/240 V (50/60 Hz) |
| Dimensions (WxDxH) - with stand | 19.3 in x 8.1 in x 14.6 in |
| Weight | 11.68 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2465919 |
| Energy Class | Class E |
| Diagonal Size | 22" |
| Viewable Size | 21.5" |
| Built-in Devices | USB 3.2 Gen 1 hub |
| Panel Type | IPS |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 100 Hz |
| Pixel Pitch | 0.24795 mm |
| Brightness | 312 cd/m² |
| Brightness w/touchscreen | 250 cd/m² |
| Contrast Ratio | 1300:1 |
| Color Support | 16.7 million colors |
| Screen Coating | Planar ERO protective glass, anti-glare |
| Backlight Technology | LED backlight |
| Features | Bezeless, dual-hinge stand, edge-to-edge glass, MPP2.0 Active Pen compatible |
| Dimensions (WxDxH) | 19.3 in x 8.1 in x 14.6 in - with stand |
| Weight | 11.68 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years - response time: 2 days |
| Miscellaneous | |
| Features | Security lock slot (cable lock sold separately) |
| Included Accessories | Screwdriver, stand |
| Cables Included | 1 x HDMI cable ¦ 1 x USB cable - USB Type A to B |
| Security Slot Type | Kensington security slot |
| Power | |
| Input Voltage | AC 100/240 V (50/60 Hz) |
| Power Consumption SDR (On mode) | 14 kWh/1000h |
| Power Consumption (Typical) | 30 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Power Consumption (Off Mode) | 0.3 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Audio | |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Connectivity | |
| Interfaces | HDMI ¦ VGA (HD-15) ¦ DisplayPort (HDCP) ¦ USB 3.2 Gen 1 upstream (Type B) ¦ 2 x USB 3.2 Gen 1 downstream (Type A) ¦ Audio line-in ¦ Audio line-out |
| Dimensions & Weight | |
| Dimensions & Weight Details | Without stand - width: 19.3 in - depth: 2 in - height: 14.6 in - weight: 6.5 lbs ¦ With stand - width: 19.3 in - depth: 8.1 in - height: 14.6 in - weight: 11.7 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 16.75 lbs |
| Input | |
| Type | Touchscreen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Mechanical | |
| Display Position Adjustments | Tilt |
| Tilt Angle | -5/+90 |
