Expansion module - Gigabit Ethernet / 10 Gigabit SFP+ x 48 + 10 Gigabit SFP+ x 2 - for P/N: FN-CABLE-QSFP28-5, FN-CABLE-SFP+5, FN-TRAN-SFP+SRI, FOR-FN-TRAN-SFP+SR
| Main Specifications | |
|---|---|

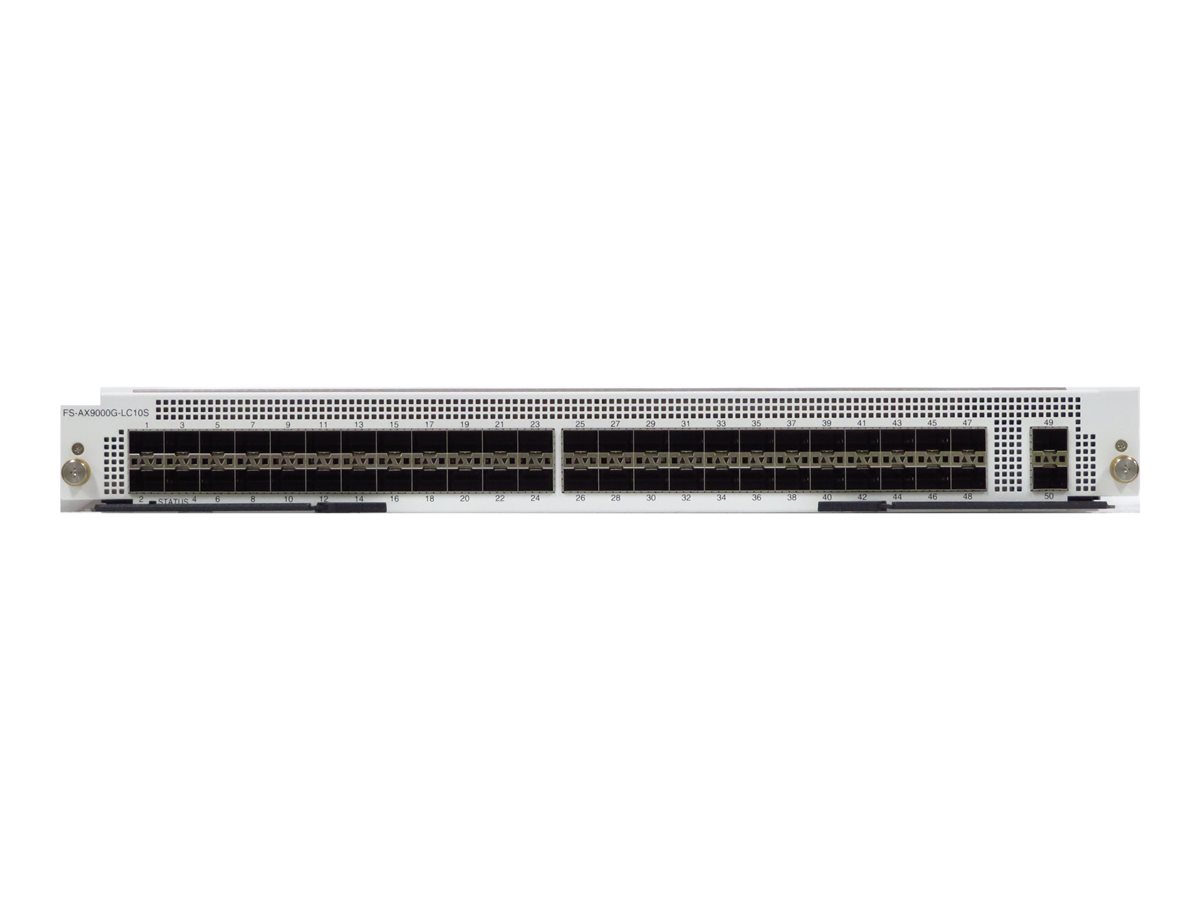

| Product Description | Fortinet FortiSwitch FS-AX9000G-LC10S - expansion module - Gigabit Ethernet / 10 Gigabit SFP+ x 48 + 10 Gigabit SFP+ x 2 |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports | Gigabit Ethernet / 10 Gigabit SFP+ x 48 + 10 Gigabit SFP+ x 2 |
| Dimensions (WxDxH) | 17.2 in x 19.5 in x 1.9 in |
| Weight | 14.77 lbs |
| Data Link Protocol | 10GbE, 1GbE |
| Data Transfer Rate | 10 Gbps |
| Capacity | Packet buffer memory: 8 MB |
| Compliant Standards | IEEE 802.3ae, IEEE 802.3z |
| Designed For | P/N: FN-CABLE-QSFP28-2, FN-CABLE-QSFP28-3, FN-CABLE-QSFP28-5, FN-CABLE-SFP+5, FN-CABLE-SFP28-3, FN-CABLE-SFP28-5, FN-TRAN-LX, FN-TRAN-QSFP28-SR, FN-TRAN-SFP+LR, FN-TRAN-SFP+SR, FN-TRAN-SFP+SRI, FN-TRAN-SFP28-SR, FN-TRAN-SX, FOR-FN-TRAN-SFP+SR |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 48 x 1 Gigabit Ethernet/10Gb Ethernet - SFP/SFP+ ¦ 2 x 10 Gigabit Ethernet - SFP+ |
| Networking | |
| Ports | Gigabit Ethernet / 10 Gigabit SFP+ x 48 + 10 Gigabit SFP+ x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Capacity | Packet buffer memory: 8 MB |
| Status Indicators | Status |
| Features | Hot swappable, modular design, FEC |
| Compliant Standards | IEEE 802.3ae, IEEE 802.3z |
| Processor / Memory | |
| Flash Memory | 20 GB |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 19.5 in |
| Height | 1.9 in |
| Weight | 14.77 lbs |
| Compatibility Information | |
| Designed For | P/N: FN-CABLE-QSFP28-2, FN-CABLE-QSFP28-3, FN-CABLE-QSFP28-5, FN-CABLE-SFP+5, FN-CABLE-SFP28-3, FN-CABLE-SFP28-5, FN-TRAN-LX, FN-TRAN-QSFP28-SR, FN-TRAN-SFP+LR, FN-TRAN-SFP+SR, FN-TRAN-SFP+SRI, FN-TRAN-SFP28-SR, FN-TRAN-SX, FOR-FN-TRAN-SFP+SR |
