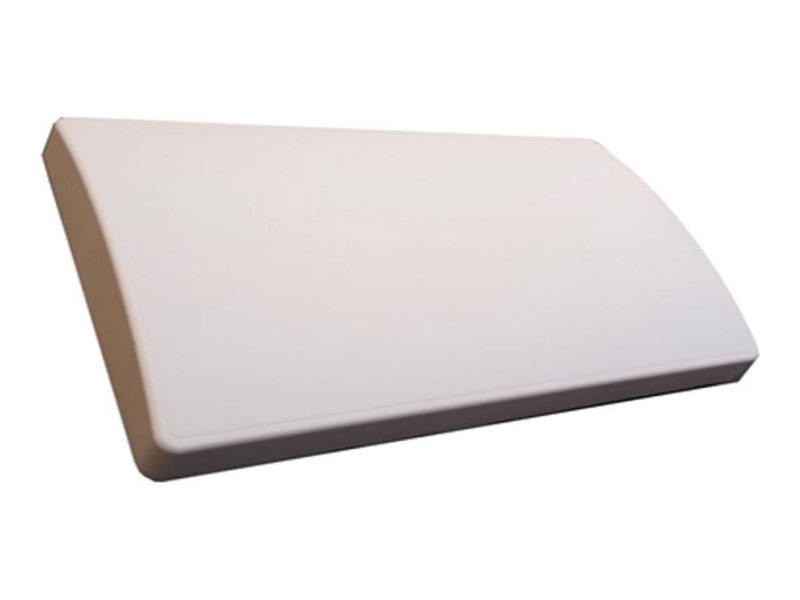

Antenna - Wi-Fi - 13 dBi - directional - outdoor, indoor
| Main Specifications | |
|---|---|
| Product Description | Fortinet antenna |
| Product Type | Antenna |
| Package Content | Strong Arm Mount (SAM) |
| Dimensions (WxDxH) | 24 in x 2.8 in x 14 in |
| Weight | 9.5 lbs |
| Intended For | Wi-Fi |
| Antenna Placing / Mounting | Outdoor, indoor |
| Compatibility | 802.11ax, 802.11be |
| Frequency Range | 2.4 GHz, 5 GHz, 6 GHz |
| Gain | 13 dBi |
| Directivity | Directional |
| General | |
| Product Type | Antenna |
| Package Content | Strong Arm Mount (SAM) |
| Width | 24 in |
| Depth | 2.8 in |
| Height | 14 in |
| Weight | 9.5 lbs |
| Miscellaneous | |
| Features | Front-to-back ratio ?21 dB, port-to-port isolation ?15 dB (for 2.4 GHz), port-to-port isolation ?35 dB (for 5 GHz), port-to-port isolation ?35 dB (for 6 GHz), vertical polarisation |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Cabling & Wiring | |
| Connector Provided | 4 x N connector female |
| Antenna | |
| Intended For | Wi-Fi |
| Antenna Placing / Mounting | Outdoor, indoor |
| Compatibility | 802.11ax, 802.11be |
| Frequency Range | 2.4 GHz, 5 GHz, 6 GHz |
| Gain | 13 dBi |
| Directivity | Directional |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Horizontal Beamwidth | 115° |
| Vertical Beamwidth | 11° |
| Impedance | 50 ohm |
