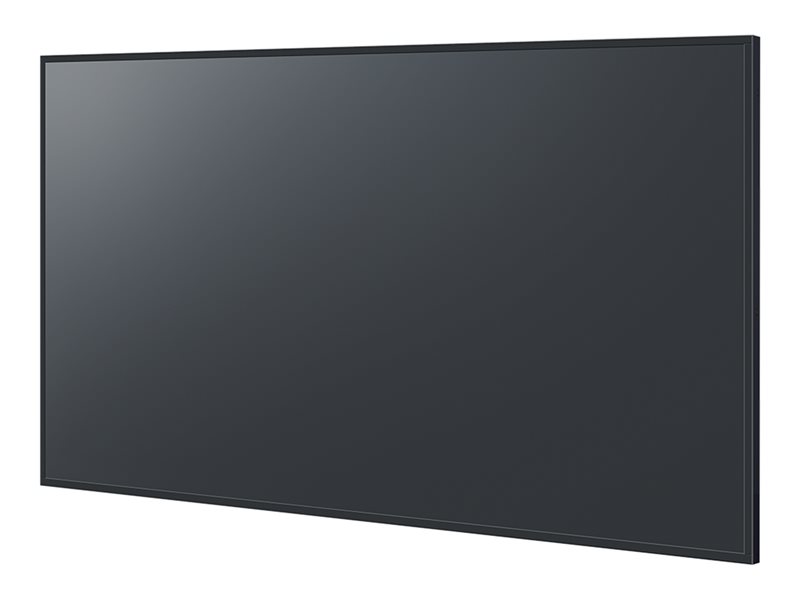

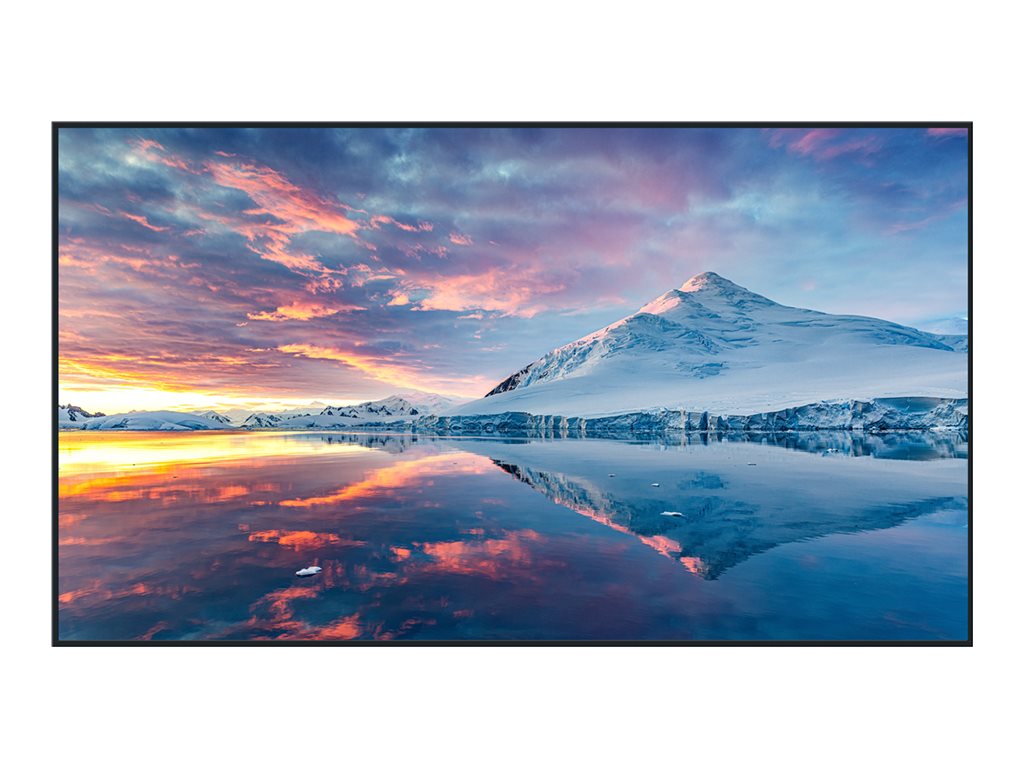

55" Diagonal Class (54.63" viewable) - EQ3 Series LED-backlit LCD display - digital signage - 4K UHD (2160p) 3840 x 2160 - Direct LED - black
| Main Specifications | |
|---|---|
| Product Description | Panasonic TH-55EQ3W EQ3 Series - 55" Class (54.63" viewable) LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2363412 |
| Diagonal Class | 55" |
| Diagonal Size | 54.63" |
| Commercial Use | Yes - digital signage |
| Color | Black |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | LAN |
| PC Interface | VGA (HD-15) |
| Technology | ADS |
| LCD Backlight Technology | Direct LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | 20° tilt, HDMI power management, PC power management, remote lock, PJLink, USB File Play, USB auto-play, memory viewer |
| Picture Enhancements | Dynamic contrast |
| Speaker System | 2 speakers |
| USB | Yes |
| Included Accessories | Remote control, usb cover, 2 x clampers |
| Voltage | AC 110-240 V (50/60 Hz) |
| Energy Class | Class G |
| Power Consumption Operational | 142 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) | 48.9 in x 2.6 in x 28.1 in |
| Weight | 34.39 lbs |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2363412 |
| Energy Class | Class G |
| Power Consumption Operational | 142 watt |
| Power Consumption SDR (On mode) | 147 kWh/1000h |
| Diagonal Class | 55" |
| Diagonal Size | 54.63" |
| Commercial Use | Yes - digital signage |
| Series | EQ3 Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| PC Interface | VGA (HD-15) |
| Modes | Portrait mode, landscape mode |
| Picture Enhancements | Dynamic contrast |
| Width | 48.9 in |
| Depth | 2.6 in |
| Height | 28.1 in |
| Weight | 34.39 lbs |
| Enclosure Color | Black |
| Miscellaneous | |
| Included Accessories | Usb cover, 2 x clampers |
| Compliant Standards | CEC, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-19, EN 62368-1:2014, BS EN 62368-1:2014, Class A, FCC 47 CFR Part 15 Subpart B, ICES-003 issue 7, EN 55032:2015, EN 55032:2015/A11:2020, EN 55035:2017, EN 55035:2017/A11:2020, EN 61000-3-2:2014, EN 61000-3-3:2013 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 110-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| Power Consumption (Off Mode) | 0.3 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Display | |
| LCD Display Technology | ADS |
| Color Support | 1060000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| LCD Backlight Technology | Direct LED |
| Coating | Anti-glare, 25% haze |
| Image Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 50000:1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Backlight Life | 50,000 hour(s) |
| Commercial Features | 20° tilt, HDMI power management, PC power management, remote lock, PJLink, USB File Play, USB auto-play, memory viewer |
| Operation Hours / Days | 18 / 7 |
| Additional Features | Dynamic Backlight Control, AMX Device Discovery, scheduled timer |
| Connections | |
| Connector Type | 3 x HDMI input ¦ VGA input ¦ Audio line-out ¦ Audio line-in ¦ USB 2.0 ¦ LAN ¦ Serial input |
| Remote Control | |
| Type | Remote control |
| Battery Form Factor | AAA type |
| Battery Included | Yes |
| Battery Included Qty | 2 |
| Battery Required Qty | 2 |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 watt |
| Speakers | 2 x speaker - 10 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 53.1 in |
| Depth (Shipping) | 6.3 in |
| Height (Shipping) | 33.9 in |
| Weight (Shipping) | 50.71 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| LAN Protocol | Fast Ethernet |
| Stands & Mounts | |
| Flat Panel Mount Interface | 400 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 1 |
