Receipt printer - two-color (monochrome) - dot-matrix - Roll (3 in) - 16.9 cpi - 25 pin - up to 4.7 lines/sec - LAN - cutter - gray
| Main Specifications | |
|---|---|

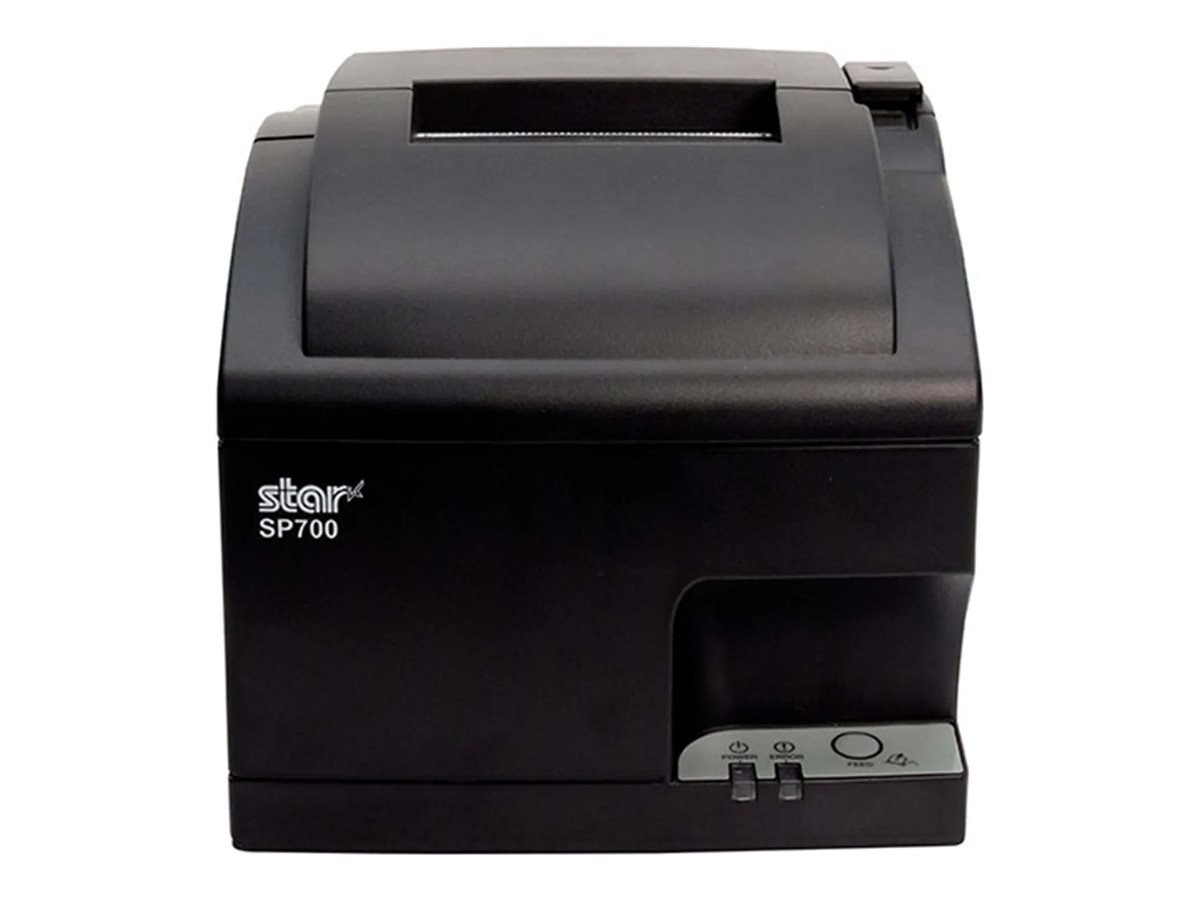

| Product Description | Star SP742 - receipt printer - two-color (monochrome) - dot-matrix |
| Printer Type | Receipt printer - dot-matrix - 25 pin - two-color (monochrome) |
| Weight | 7.01 lbs |
| Max Media Size | Roll (3 in) |
| Max Media Size (Custom) | 3 in |
| Print Speed | Up to 4.7 lines/sec - max speed |
| Max Resolution (B&W) | 16.9 cpi |
| Cutter | Yes |
| Interface | LAN |
| Language Simulation | ESC POS |
| Media Type | Receipt paper |
| Printer Features | 22 million lines MCBF, drop-in paper loading, horizontal & vertical use |
| Enclosure Color | Gray |
| Manufacturer Warranty | 2-year warranty |
| Dimensions (WxDxH) | 6.3 in x 9.6 in x 6 in |
| General | |
| Printer Type | Receipt printer - dot-matrix - 25 pin - two-color (monochrome) |
| Enclosure Color | Gray |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, TUV, cUL, EN55022, VCCI Class A |
| Printer | |
| Print Speed | Up to 4.7 lines/sec - max speed |
| Connectivity Technology | Wired |
| Interface | LAN |
| Max Resolution (B&W) | 16.9 cpi |
| Language Simulation | ESC POS |
| Character Sizes (mm) | 0.059 in x 0.095 in, 0.047 in x 0.095 in |
| Columns | 42 |
| Auto Cutter | Yes |
| Printer Features | 22 million lines MCBF, drop-in paper loading, horizontal & vertical use |
| Media Handling | |
| Media Type | Receipt paper |
| Max Media Size | Roll (3 in) |
| Max Media Size (Custom) | 3 in |
| Media Sizes | Roll (3 in), Roll (2.3 in), Roll (2.7 in) |
| Max Printing Width | 2.48 in |
| Media Thickness Range | 0.0026 in - 0.0033 in |
| Roll Maximum Outer Diameter | 3.3 in |
| Media Feeders | 1 x manual - 1 roll - Roll (3 in) |
| Power | |
| Power Device | Power supply - internal |
| Power Consumption Operational | 36 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 6.3 in |
| Depth | 9.6 in |
| Height | 6 in |
| Weight | 7.01 lbs |
