Network surveillance / panoramic camera - fisheye - outdoor, indoor - weatherproof - color (Day&Night) - 12 MP - 4000 x 3000 - fixed focal - audio - GbE - MJPEG, H.264, H.265 - DC 12 V / PoE
| Main Specifications | |
|---|---|

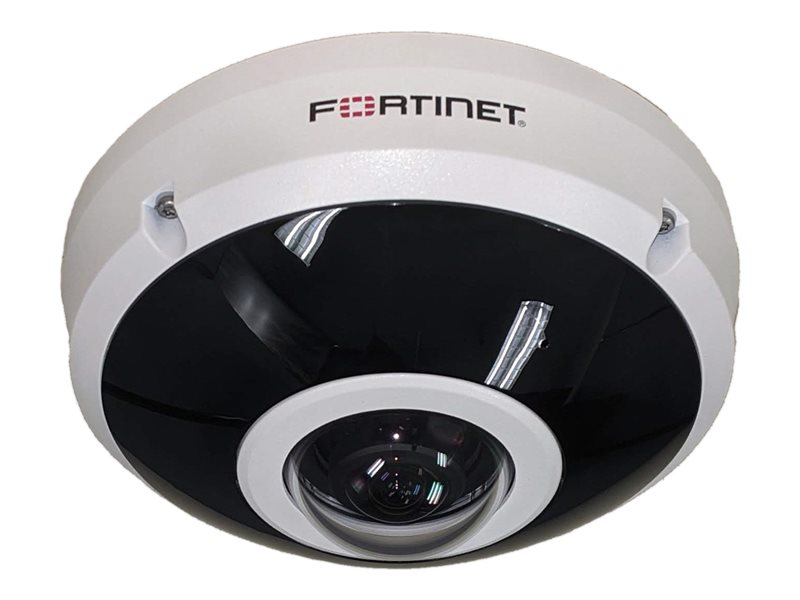

| Product Description | Fortinet FortiCamera FE120B - network surveillance / panoramic camera - fisheye |
| Device Type | Network surveillance / panoramic camera - fixed - fisheye - outdoor, indoor - weatherproof |
| Audio | Yes: two-way audio capability, built-in microphone |
| Camera Mount Type | Surface mount, wall mount, ceiling mount, pole mount |
| Dimensions (WxDxH) | 5.9 in x 5.9 in x 2.7 in |
| Weight | 24.72 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 4000 x 3000 |
| Frame Rate (max) | 30 frames per second |
| Optical Sensor Type | CMOS - 1/2.3" - 12 MP |
| Minimum Illumination | 0.1 lux - color - F1.4 ¦ 0.005 lux - B&W - F2.0 |
| Focal Length Control | Fixed focal |
| Focal Length | 1.22 mm |
| Lens Iris | F/2.0 |
| Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | DC 12 V / PoE |
| Features | Progressive scanning, ONVIF (Profile S) support, ONVIF (Profile G) support, Shutter WDR, 3D Noise Reduction Technology, ONVIF (Profile T) support |
| Environmental Parameters (operating) | -4 °F - 122 °F; 0 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance / panoramic camera |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Audio Formats | RTSP |
| Form Factor | Fisheye |
| Camera Mount Type | Surface mount, wall mount, ceiling mount, pole mount |
| Connectivity Technology | Wired |
| Width | 5.9 in |
| Depth | 5.9 in |
| Height | 2.7 in |
| Weight | 24.72 oz |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, IP66, IK10, IEEE 802.3af |
| Power | |
| Power Requirements | DC 12 V / PoE |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor, indoor - weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 4000 x 3000 |
| Minimum Illumination | 0.1 lux - color - F1.4 ¦ 0.005 lux - B&W - F2.0 |
| Infrared LEDs | Yes |
| Infrared Distance | 66 ft |
| Digital Video Capture Resolution | 1280 x 960, 4000 x 3000, 1920 x 1920, 1280 x 1280, 1024 x 1024, 3000 x 3000, 320 x 320, 2560 x 2560, 720 x 720 |
| Frame Rate (max) | 30 frames per second |
| Features | Progressive scanning, ONVIF (Profile S) support, ONVIF (Profile G) support, Shutter WDR, 3D Noise Reduction Technology, ONVIF (Profile T) support |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 1.22 mm |
| Lens Iris | F/2.0 |
| Image Sensor | |
| Type | 12 MP CMOS 1/2.3" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | RTSP, ONVIF |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
