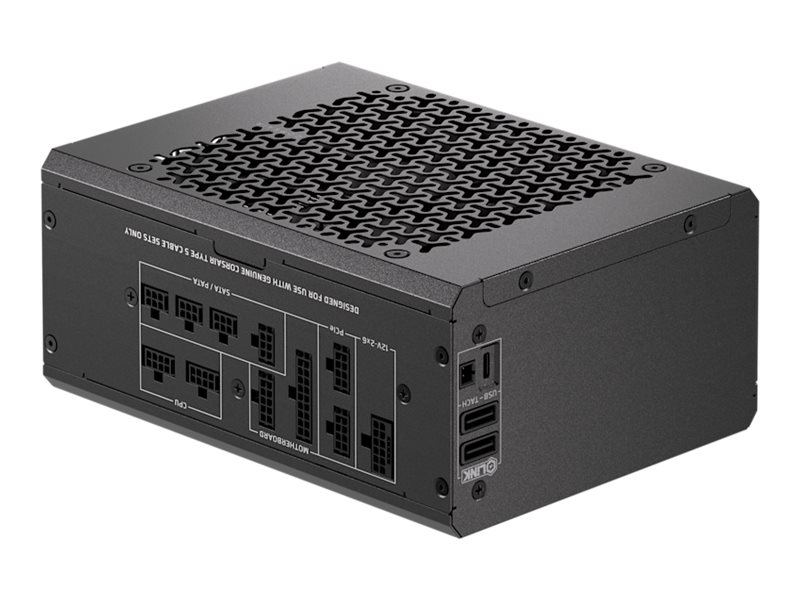

Power supply (internal) - ATX12V 3.1/ EPS12V - Cybenetics Platinum - AC 100-240 V - 1200 Watt - North America
| Main Specifications | |
|---|---|
| Product Description | CORSAIR HXi SHIFT Series HX1200i - power supply - 1200 Watt |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V |
| Cybenetics Certification | Cybenetics Platinum |
| Weight | 8.77 lbs |
| Localization | North America |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 1200 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 100 A ¦ +5VSB - 3.5 A |
| Output connectors | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 12VHPWR ¦ 8 x 15 pin Serial ATA power ¦ 8 x 4 pin internal power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section |
| Modular Cable Management | Yes |
| Cooling System | 140 mm fan |
| Dimensions (WxDxH) | 5.9 in x 7.9 in x 3.4 in |
| Manufacturer Warranty | 10-year warranty |
| General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V |
| PSU Form Factor | ATX |
| Localization | North America |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Cables Included | AC power cable ¦ Power 24 pin ATX with detachable 4 pin section modular cable 2 ft ¦ 2 x power 8 pin EPS12V modular cable 2 ft ¦ 2 x 8 pin PCI Express power with detachable 2 pin section modular cable 2 ft ¦ 16-pin 12VHPWR to 2x8 pin PCI Express power modular cable 2 ft ¦ 16-pin 12VHPWR power modular cable 2 ft ¦ 2 x 15 pin Serial ATA power modular cable 2.6 ft ¦ 2 x 4 pin power modular cable 2.5 ft ¦ USB-C cable 1.7 ft ¦ iCUE Link to iCUE LINK cable 2 ft ¦ iCUE Link to 90° iCUE LINK cable 7.9 in |
| MTBF | 100,000 hours |
| Cooling System | 140 mm fan |
| Features | Fully modular, side connections, iCUE LINK System HUB connection, Zero RPM fan mode, Cybenetics A++, DSP technology, fluid dynamic bearing cooling fan, Modern Standby compatible, overvoltage protection, overcurrent protection, overheat protection, overpower protection, short-circuit protection |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 12VHPWR ¦ 8 x 15 pin Serial ATA power ¦ 8 x 4 pin internal power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 1200 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 100 A ¦ +5VSB - 3.5 A |
| Modular Cable Management | Yes |
| Cybenetics Certification | Cybenetics Platinum |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 7.9 in |
| Height | 3.4 in |
| Weight | 8.77 lbs |
