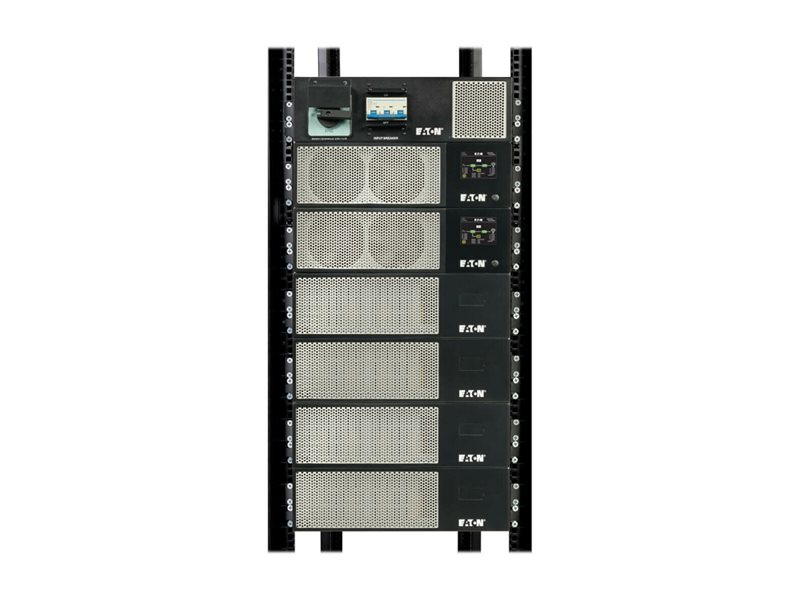

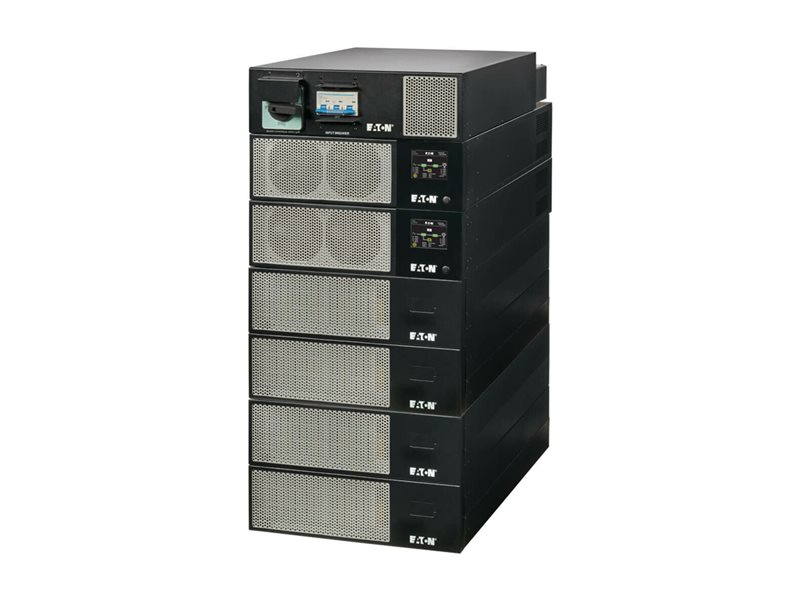

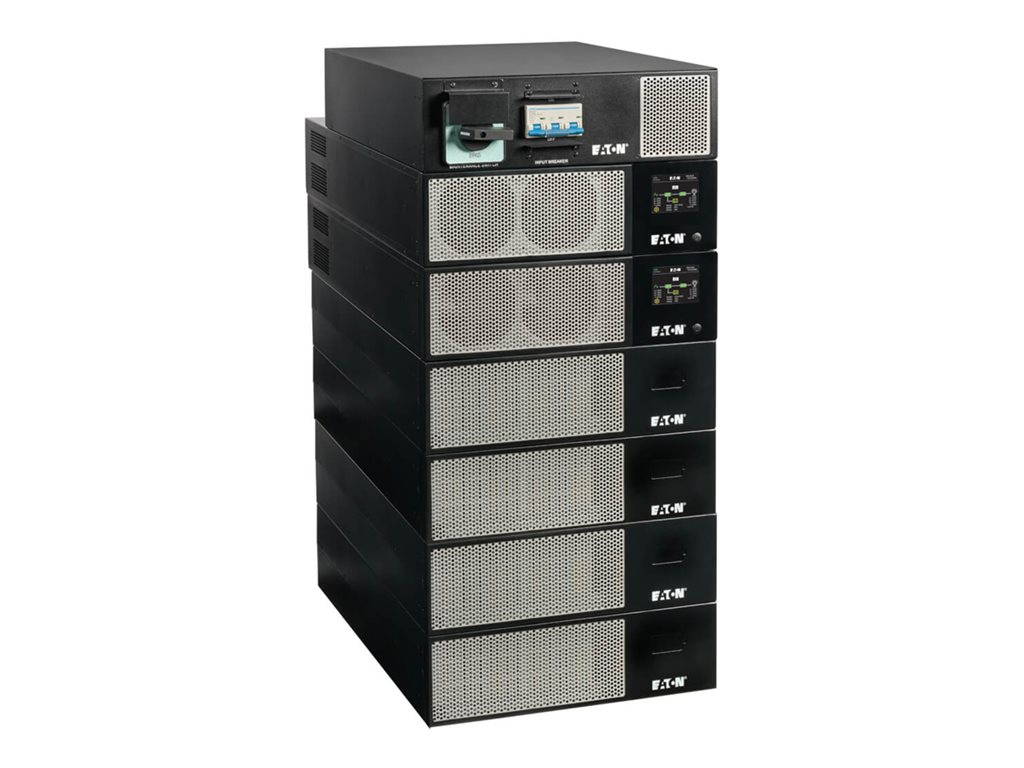

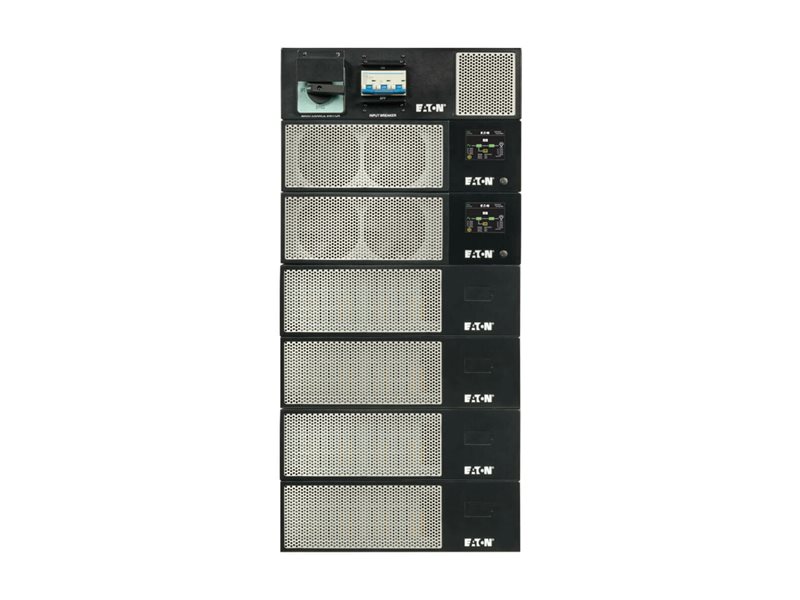

UPS (rack-mountable) - AC 120/208 V - 13000 Watt - 13000 VA - 3-phase WYE - 80 x battery - valve regulated lead-acid (VRLA) - 10 Ah - RS-232, USB, Ethernet 10/100/1000 - 21U - 19"
| Main Specifications | |
|---|---|
| Product Description | Eaton 93PX - UPS - 13000 Watt - 13000 VA - VRLA - 10 Ah |
| Device Type | UPS - rack-mountable |
| Rack Size | 19" - 21U |
| Weight | 899.48 lbs |
| Input Wiring | 3-phase WYE |
| Input Voltage | AC 120/208 V |
| Output Voltage | 120/208 V ± 1% |
| Power Capacity | 13000 Watt / 13000 VA |
| Power Redundancy | Yes |
| Input Connectors | Hardwire |
| Output connectors | Hardwire 5-wire |
| Battery | Expandable valve regulated lead-acid (VRLA) - 10 Ah |
| Batteries Qty | 80 |
| Run Time (Up To) | 23 min at full load |
| Networking | RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | BOOTP, DHCP, HTTPS, MIB 2, NTP, SNMP 1, SNMP 2c, SNMP 3 |
| Included Accessories | 2 network management cards, external battery pack, maintenance bypass |
| Dimensions (WxDxH) | 17.2 in x 32.2 in x 36 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 21U |
| Rack Size | 19" |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x dry contact input ¦ 1 x dry contact output ¦ 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | United States and Canada: limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 2 network management cards, external battery pack, maintenance bypass |
| Rack Mounting Kit | Included |
| Features | 3.5" touch screen LCD display, built-in maintenance bypass, 3:1 max crest factor, double conversion, Enhanced Battery Management (EBM), Zero Touch Provisioning (ZTP) |
| Compliant Standards | Plug and Play, RoHS, ISTA, EN 61000-4-5, IEC 61000-4-5, EN 61000-3-12:2011, IEC 62040-2:2016, IEC 62040-1:2017+A1:2021+A2:2022, FCC 47 CFR Part 15 Subpart B Class A, ICES-003 issue 7, UL 1778 5th edition, CAN/CSA C22.2 No. 107.3-14 (3rd Ed)+GI1 |
| Networking | |
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | BOOTP, DHCP, HTTPS, MIB 2, NTP, SNMP 1, SNMP 2c, SNMP 3 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Sound Emission | 60 dB |
| Battery | |
| Type | Expandable |
| Quantity | 80 |
| Technology | Valve regulated lead-acid (VRLA) |
| Voltage Provided | DC 120 V |
| Capacity | 10 Ah |
| Run Time (Up To) | 23 min at full load ¦ 53 min at half load |
| Power Device | |
| UPS Technology | On-line |
| Supported Battery Technology | Valve regulated lead-acid (VRLA) |
| Power Redundancy | Yes |
| Power Redundancy Scheme | N+1 |
| Input Voltage | AC 120/208 V |
| Frequency Provided | 50/60 Hz ± 4Hz |
| Input Wiring | 3-phase WYE |
| Frequency Required | 60 Hz |
| Input Connectors | Hardwire |
| Power Output Connectors Details | Hardwire 5-wire |
| Output Voltage | 120/208 V ± 1% - 50/60 Hz |
| Power Capacity | 13000 Watt / 13000 VA |
| Output Waveform | Pure sine wave |
| Circuit Protection | Circuit breaker |
| Efficiency | 97% Eco mode, 91% online mode, 91% Battery mode |
| Power Factor (PF) | 1.0 |
| Total Harmonic Distortion (THD) | 4 % |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 32.2 in |
| Height | 36 in |
| Weight | 899.48 lbs |
