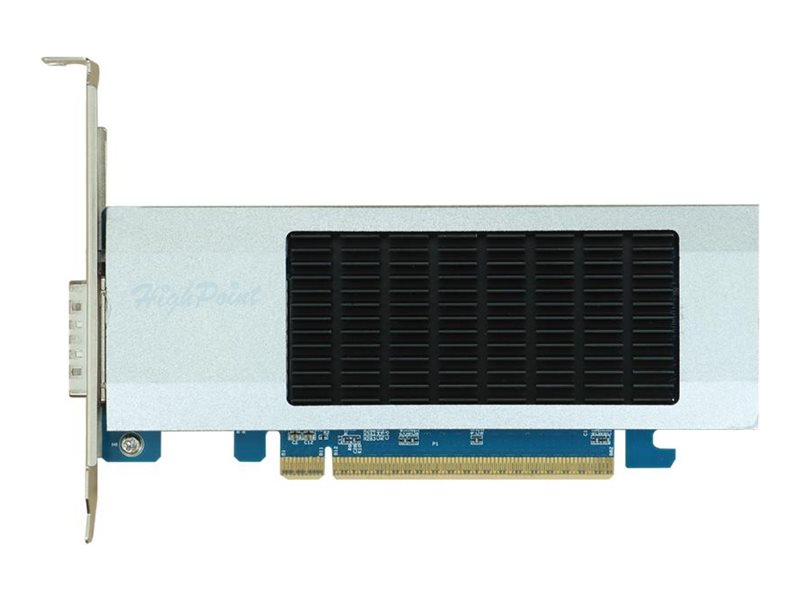

Host adapter - 3 Channel - PCIe switch - NVMe - low profile - RAID 0, 1, 10 - PCIe 5.0 x16
| Main Specifications | |
|---|---|
| Product Description | HighPoint Rocket R7638D - host adapter - PCIe switch - NVMe - PCIe 5.0 x16 |
| Device Type | Host adapter - plug-in card - PCIe switch - low profile |
| Bus Type | PCIe 5.0 x16 |
| Interface | NVMe |
| Data Transfer Rate | 64 GBps |
| Supported Devices | Solid state drive |
| Channel Qty | 3 |
| Max Storage Devices Qty | 16 |
| RAID Level | RAID 0, RAID 1, RAID 10 |
| System Requirements | Microsoft Windows 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows Server 2025, Debian, Fedora, Proxmox, Red Hat Enterprise Linux, Rocky Linux, Ubuntu |
| Dimensions (WxDxH) | 6.5 in x 0.8 in x 2.7 in |
| Weight | 7.41 oz |
| General | |
| Device Type | Host adapter - plug-in card - PCIe switch - low profile |
| Host Bus | PCIe 5.0 x16 |
| Expansion / Connectivity | |
| Interfaces | 1 x CDFP - CDFP Device (external) ¦ 2 x NVMe - Mini Cool Edge IO (MCIO) x8 (internal) |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Features | Diagnostic LED, electrical power measuring, LED status indicators, hot plug, full-height, SecureBoot, Self-Encrypting Drive (SED) support |
| MTBF | 5,000,000 hours |
| Software / System Requirements | |
| OS Required | Microsoft Windows 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows Server 2025, Debian, Fedora, Proxmox, Red Hat Enterprise Linux, Rocky Linux, Ubuntu |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 131 °F |
| Storage Controller | |
| Interface | NVMe |
| Data Transfer Rate | 64 GBps |
| Supported Devices | Solid state drive |
| Channel Qty | 3 |
| Max Storage Devices Qty | 16 |
| RAID Level | RAID 0, RAID 1, RAID 10 |
| Dimensions & Weight | |
| Width | 6.5 in |
| Depth | 0.8 in |
| Height | 2.7 in |
| Weight | 7.41 oz |
