Wireless access point - Unleashed, indoor - Wi-Fi 7 - Wi-Fi 7, 802.1x - 2.4 GHz, 5 GHz - cloud-managed - desktop / wall / ceiling mountable
| Main Specifications | |
|---|---|

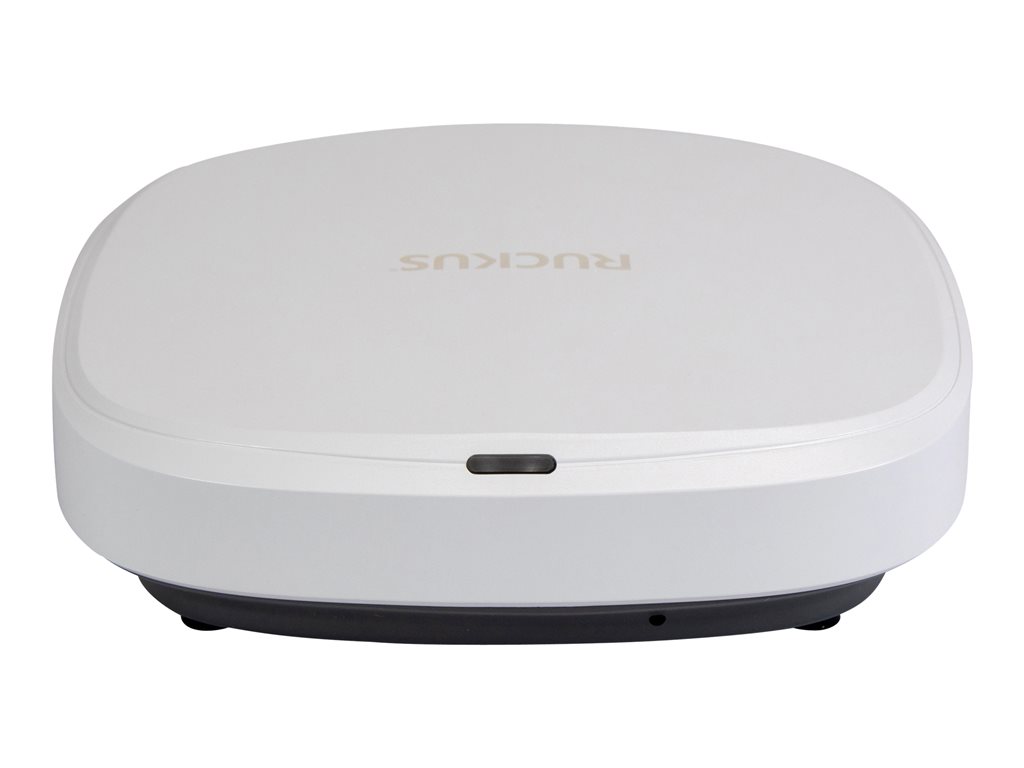

| Product Description | Ruckus R370 - wireless access point - Unleashed, indoor - Wi-Fi 7, 802.1x - cloud-managed |
| Device Type | Wireless access point |
| Form Factor | Desktop / wall / ceiling mountable - indoor |
| Localization | United States |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7) |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 688 Mbps ¦ Maximum data rate (5 GHz): 2882 Mbps |
| Capacity | Concurrent users: 256 ¦ Maximum number of configured SSIDs: 16 |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 5.9 in x 5.9 in x 1.5 in |
| Weight | 13.76 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 5.9 in |
| Depth | 5.9 in |
| Height | 1.5 in |
| Weight | 13.76 oz |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 1 x 2.5Gb Ethernet - RJ-45 ¦ 1 x USB 2.0 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | EN 60950-1, EN 60601-1-2, EN 61000-4-2, EN 50121-1, EN 50121-4, UL 2043, EN 62311, WEEE, RoHS, ISTA 2A, EN 61000-4-3, EN 61000-4-5 |
| Networking | |
| Form Factor | Desktop / wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 3.57 Gbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7) |
| Network / Transport Protocol | IPv4, IPv6 |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 688 Mbps ¦ Maximum data rate (5 GHz): 2882 Mbps |
| Capacity | Concurrent users: 256 ¦ Maximum number of configured SSIDs: 16 |
| Features | 802.1x authentication, 2x2 SU-MIMO technology, 2x2 MU-MIMO technology, Wireless Intrusion Prevention System (WIPS), Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, WMM Power Save, Low Density Parity Check (LDPC), STBC support, HotSpot 2.0, Captive Portal, WISPr authentication, ChannelFly, background scan based, adaptive band balancing, client load balancing, Airtime Fairness, QoS, SmartRoam, SmartMesh, self-healing network, VLAN pooling, port-based VLAN, SpeedFlex |
| Encryption Algorithm | WPA-PSK, WPA-TKIP, WPA2, WPA3-Personal, WPA3-Enterprise, AES, WPA3, Dynamic PSK |
| Authentication Method | Basic Service Set Identifier (BSSID), RADIUS |
| Compliant Standards | IEEE 802.11i, IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11a, IEEE 802.11g, IEEE 802.11b, IEEE 802.1x |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter / power injector (not included) |
| Power Consumption Operational | 12.94 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | Up to 95% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7 in |
| Shipping Depth | 6.1 in |
| Shipping Height | 2.8 in |
| Shipping Weight | 19.19 oz |
| Antenna | |
| Antenna | Internal |
| Gain Level | 4 dBi |
