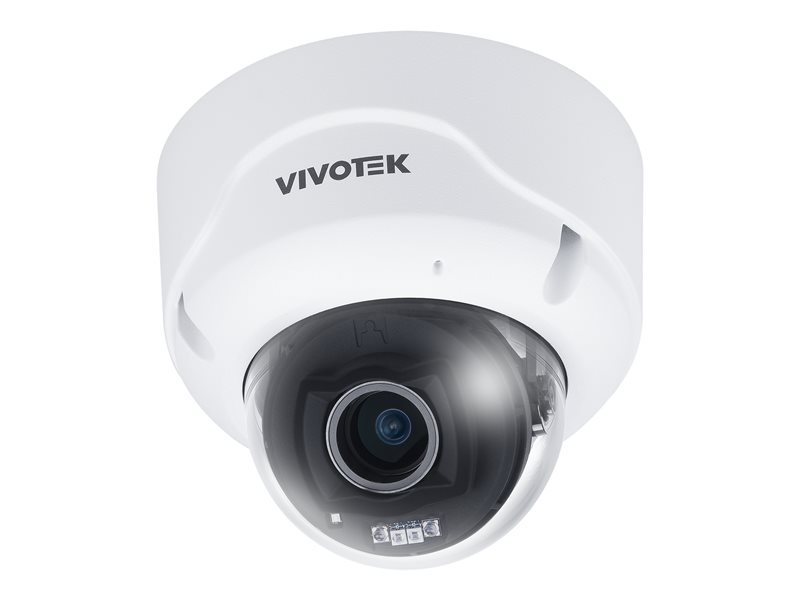

Network surveillance camera - dome - color (Day&Night) - 5 MP - 2560 x 1920 - vari-focal - audio - LAN 10/100 - PoE Class 3 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Vivotek VORTEX Premium FD839-EHTV-V2 - network surveillance camera - dome - TAA Compliant |
| Device Type | Network surveillance camera - fixed - dome |
| Audio | Yes: two-way audio capability, built-in microphone |
| Dimensions (WxDxH) | 5.3 in x 5.3 in x 4.6 in |
| Weight | 34.92 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 4.3 x |
| Max Resolution | 2560 x 1920 |
| Frame Rate (max) | 15 frames per second |
| Optical Sensor Type | Progressive Scan CMOS - 1/2.8" - 5 MP |
| Minimum Illumination | 0.04 lux - color - F1.6 ¦ 0.005 lux - B&W - F1.6 ¦ 0 lux - IR - infrared LEDs on |
| Focal Length Control | Vari-focal |
| Focal Length | 2.8 mm - 12 mm |
| Focus Adjustment | Remote |
| Lens Iris | F/1.6-3.3 (P-Iris) |
| Panning Range (degree) | 350 |
| Tilting Range (degree) | 80 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 3 |
| Features | 350° rotation, IR-cut filter, Smart IR, Wide Dynamic Range (WDR) Pro, WebRTC compatible, secure boot, signed firmware, video encryption, HTTPs encryption, TLS encryption protocol, 6 access users, 5m microphone pickup range, metal housing, Audio Detection, Tampering detection, intrusion detection, Line Crossing Detection, loitering detection, unattended object detection, missing object detection, AI Analytics |
| TAA Compliant | Yes |
| Manufacturer Warranty | 10-year warranty |
| Environmental Parameters (operating) | -31 °F - 140 °F; 98% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 5.3 in |
| Depth | 5.3 in |
| Height | 4.6 in |
| Weight | 34.92 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out ¦ Digital input ¦ Digital output |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | TLS 1.2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Included Accessories | Alignment sticker, screw pack, L-shaped wrench |
| TAA Compliant | Yes |
| Compliant Standards | IEEE 802.3af, IP66, IK10, FCC, NDAA, UL |
| Power | |
| Power Requirements | PoE Class 3 |
| Power Device | 12.4 watt |
| Software / System Requirements | |
| Software Included | VORTEX VSaaS xPro License (1 year) |
| Environmental Parameters | |
| Min Operating Temperature | -31 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 98% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed |
| Max Digital Video Resolution | 2560 x 1920 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Minimum Illumination | 0.04 lux - color - F1.6 ¦ 0.005 lux - B&W - F1.6 ¦ 0 lux - IR - infrared LEDs on |
| Infrared LEDs | 4 |
| Infrared Distance | 131 ft |
| Digital Video Capture Resolution | 2560 x 1920, 1280 x 960 |
| Frame Rate (max) | 15 frames per second |
| Flash Memory | 256 GB |
| Features | 350° rotation, IR-cut filter, Smart IR, Wide Dynamic Range (WDR) Pro, WebRTC compatible, secure boot, signed firmware, video encryption, HTTPs encryption, TLS encryption protocol, 6 access users, 5m microphone pickup range, metal housing, Audio Detection, Tampering detection, intrusion detection, Line Crossing Detection, loitering detection, unattended object detection, missing object detection, AI Analytics |
| Lens Construction | |
| Type | Vari-focal |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.6-3.3 (P-Iris) |
| Focus Adjustment | Remote |
| Horizontal Field of View (degree) | 28.7 - 95.4 |
| Vertical Field of View (degree) | 21.5 - 68.8 |
| Diagonal Field of View (degree) | 35.9 - 129.6 |
| Image Sensor | |
| Type | 5 MP Progressive Scan CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, RTSP, RTP, RTCP, SSL, TCP/IP, UDP |
| Panning | |
| Range (degree) | 350 |
| Tilting | |
| Range (degree) | 80 |
