Control processor - 2nd generation - plug-in module
| Main Specifications | |
|---|---|

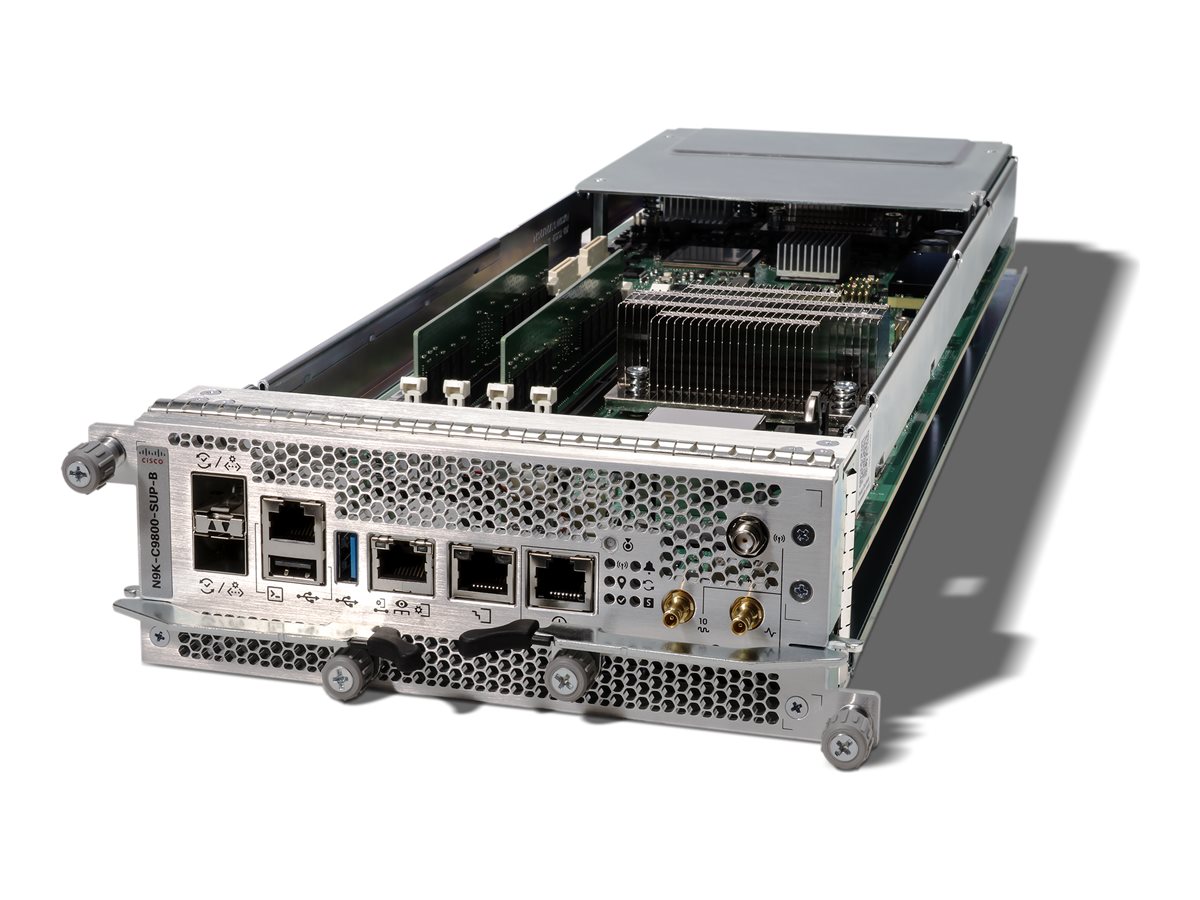

| Product Description | Cisco Nexus 9800 Supervisor - control processor - 2nd generation |
| Device Type | Control processor |
| Form Factor | Plug-in module |
| Processor | Intel 2.7 GHz |
| RAM | 64 GB |
| Hard Drive | 256 GB x 1 |
| General | |
| Device Type | Control processor |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 2.0 - Type B ¦ 1 x USB 3.0 - Type A ¦ 1 x 10/100/1000Base-T (management) - RJ-45 ¦ 1 x management - SFP+ ¦ 1 x RS-232 ¦ 1 x synchronization / timing ¦ 1 x synchronization ¦ 1 x ToD timing port ¦ 1 x GNSS ¦ 1 x PPS input/output timing port ¦ 1 x 10 MHz input/output timing port |
| Networking | |
| Form Factor | Plug-in module |
| Processor / Memory / Storage | |
| Processors Installed | Intel 2.7 GHz |
| RAM | 64 GB DDR4 SDRAM |
| Hard Drive | SSD 256 GB x 1 - NVMe |
