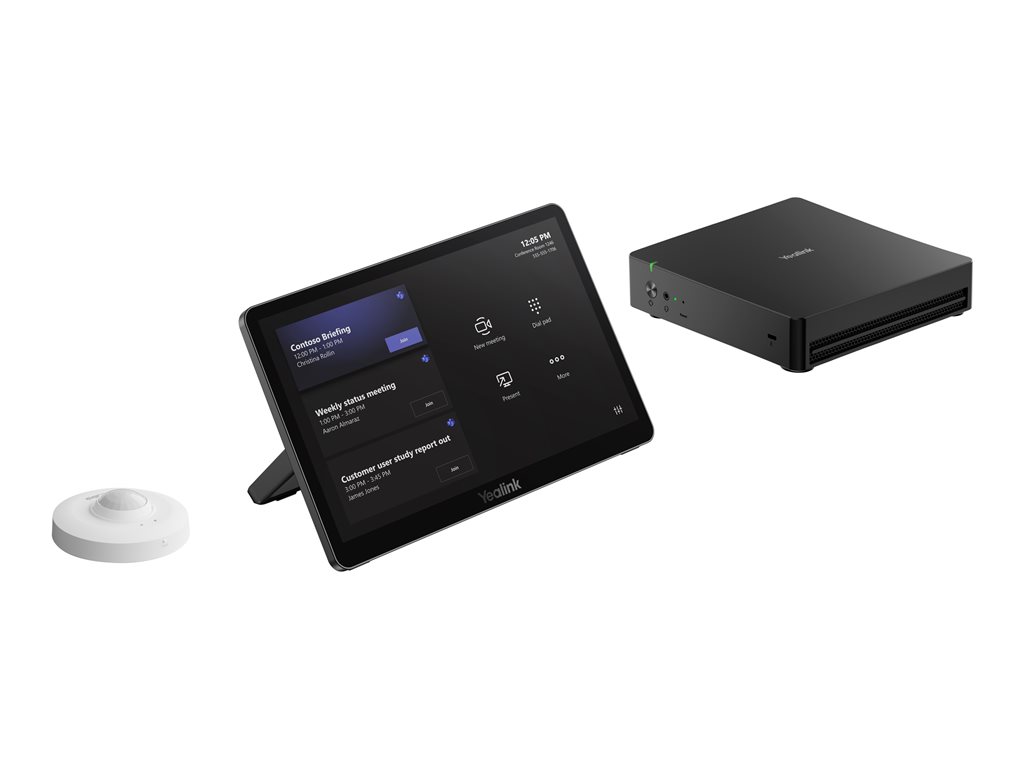

Video conferencing kit (MTouch Plus Gen 3 touch panel, MCore 4 Gen 4 Mini-PC, RoomSensor)
| Main Specifications | |
|---|---|
| Product Description | Yealink MVC Series MCoreKit-C5U - video conferencing kit |
| Device Type | Video conferencing kit |
| Kit Content | MTouch Plus Gen 3 touch panel, MCore 4 Gen 4 Mini-PC, RoomSensor |
| Display | 11.6" IPS / 1920 x 1080 |
| Video Output | 4K |
| Input Device | 11.6" touchscreen (wireless, wired) |
| PC Configuration | Core Ultra 5 125H, 16GB RAM, 256GB SSD |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | MTouch Plus Gen 3 touch panel, MCore 4 Gen 4 Mini-PC, RoomSensor |
| Expansion / Connectivity | |
| Interfaces | 3 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x Yealink Mtouch port - RJ-45 ¦ 1 x network - RJ-45 ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x audio - mini-phone 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Software / System Requirements | |
| Software Included | Windows 11 IoT Enterprise 64-bit, Windows 11 IoT Enterprise License, Microsoft Teams Rooms, Yealink RoomConnect |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% |
| Input Device | |
| Type | 11.6" touchscreen |
| Connectivity Technology | Wireless, wired |
| Display | |
| Technology | IPS |
| Diagonal Size | 11.6" |
| Native Resolution | 1920 x 1080 |
| Video Output | |
| Max External Resolution | 4K |
| PC Configuration | Core Ultra 5 125H, 16GB RAM, 256GB SSD |
