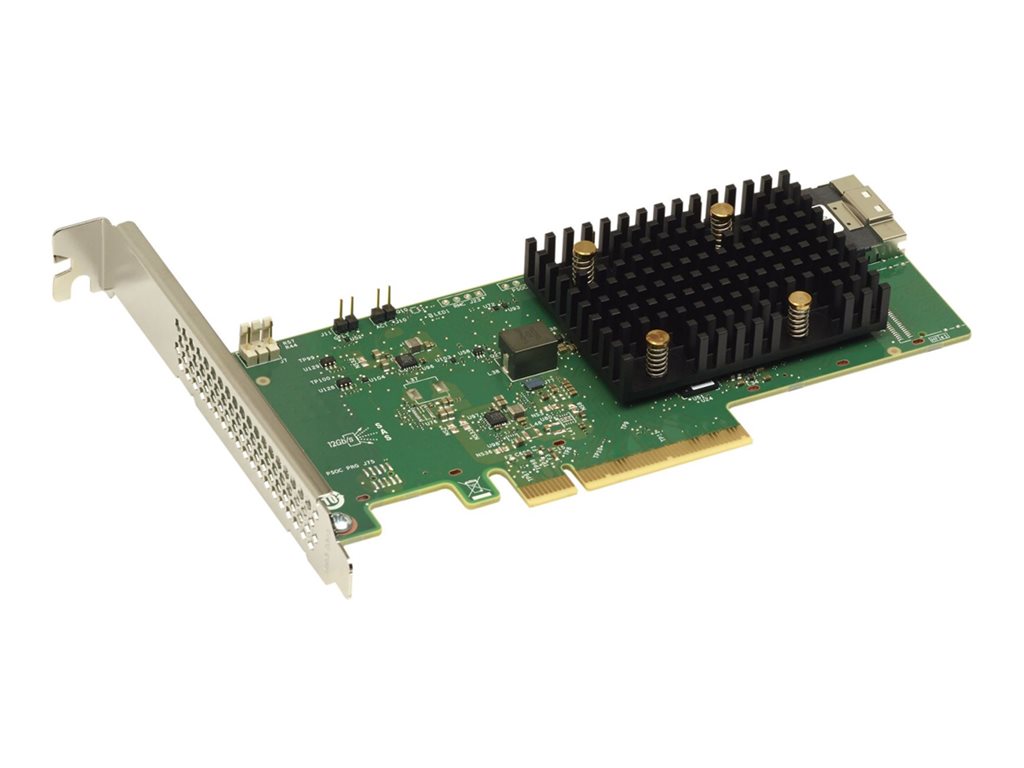

Storage controller (RAID) - 8 Channel - SATA / SAS 12Gb/s - low profile - RAID 0, 1, 10, JBOD - PCIe 4.0 x8
| Main Specifications | |
|---|---|
| Product Description | Lenovo ThinkSystem 545-8i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 4.0 x8 |
| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Bus Type | PCIe 4.0 x8 |
| Interface | SATA / SAS 12Gb/s |
| Data Transfer Rate | 12 Gbit/s |
| Supported Devices | Disk array (RAID), solid state drive |
| Channel Qty | 8 |
| Max Storage Devices Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 10, JBOD |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Host Bus | PCIe 4.0 x8 |
| Expansion / Connectivity | |
| Interfaces | 1 x SAS 12Gb/s - Slim SAS (SFF-8654) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Features | FastPath, SafeStore, Self-Encrypting Drive (SED) support, Online Capacity Expansion (OCE), Online RAID Level Migration (RLM) |
| Compliant Standards | WEEE, IEC/EN/UL 60950, RoHS, EN55022, EN55024, RRA 2013-24 & 25, AS/NZS CISPR 22, VCCI V-3, CNS 13438, ICES-003 Class B, FCC CFR 47 Part 15 Class B |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Storage Controller | |
| Interface | SATA / SAS 12Gb/s |
| Data Transfer Rate | 12 Gbit/s |
| Supported Devices | Disk array (RAID), solid state drive |
| Channel Qty | 8 |
| Max Storage Devices Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 10, JBOD |
| Processor | Broadcom SAS 3808 |
