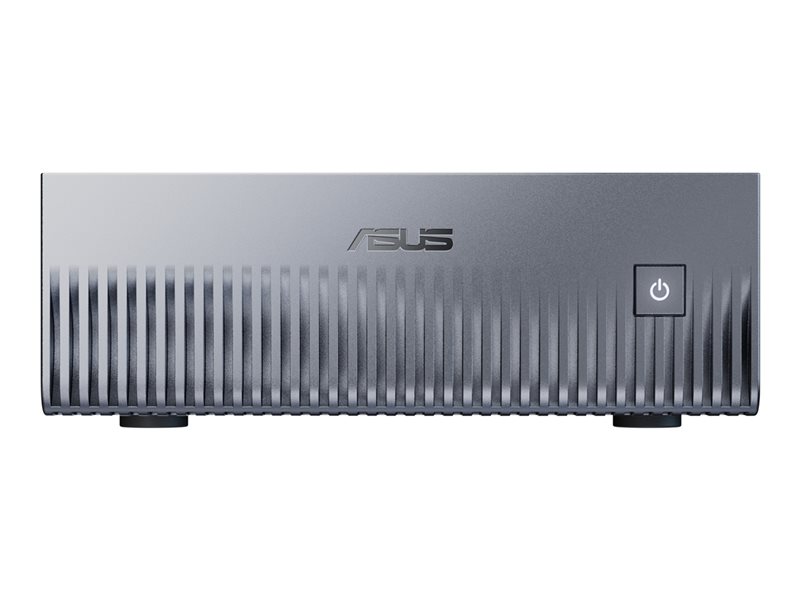

Compact PC GB10 Grace Blackwell Superchip v9.2-A - RAM 128 GB - SSD 4 TB - NVMe - NVIDIA Blackwell - IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet - Ubuntu - monitor: none - stellar gray
| Main Specifications | |
|---|---|
| Product Description | ASUS Ascent GX10 GG0016BN - compact PC GB10 Grace Blackwell Superchip v9.2-A - 128 GB - SSD 4 TB |
| Type | Personal computer - compact PC |
| Processor | NVIDIA GB10 Grace Blackwell Superchip v9.2-A (20-core) |
| RAM | 128 GB LPDDR5X SDRAM |
| Hard Drive | SSD 4 TB - PCI Express 5.0 - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | NVIDIA Blackwell |
| Networking | 802.11a, Wi-Fi 5, Wi-Fi 6, Wi-Fi 7, 802.11b/g/n, Bluetooth, 1GbE, 2.5GbE, 5GbE, 10GbE |
| OS Provided | Ubuntu |
| Color | Stellar gray |

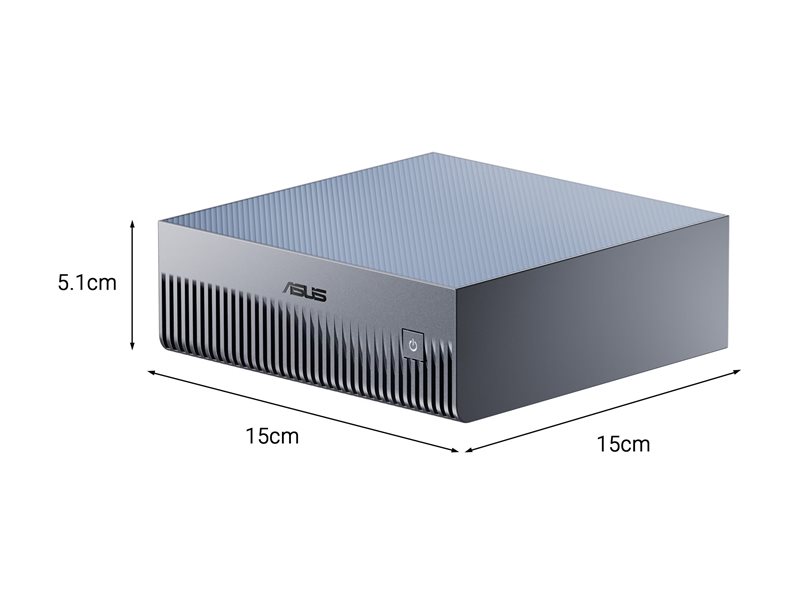

| Dimensions (WxDxH) | 5.9 in x 5.9 in x 2 in |
| Weight | 3.26 lbs |
| Manufacturer Warranty | Limited warranty - 1 year |
| General | |
| Type | Personal computer |
| Product Form Factor | Compact PC |
| Color | Stellar gray |
| Expansion / Connectivity | |
| Slots | 1 (total) / 1 (free) x expansion slot (for NIC adapter) ¦ 1 (total) / 0 (free) x M.2 Card - 2242 (PCIe 5.0 x4 mode) |
| Interfaces | 3 x USB-C 3.2 Gen 2x2/DisplayPort (3 rear) ¦ 1 x USB-C 3.2 Gen 2x2/DisplayPort (1 rear) (Power Delivery 3.1) ¦ 1 x HDMI (1 rear) ¦ 1 x LAN (10Gigabit Ethernet) (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Power cable |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | DisplayPort 2.1, BSMI, CB, FCC, UL, C-Tick, CCC, VCCI |
| RAM | |
| Installed Size | 128 GB |
| Technology | LPDDR5X SDRAM |
| Configuration Features | Provided memory is soldered |
| Networking | |
| Wireless LAN Supported | Yes |
| Wireless NIC | AzureWave AW-EM637 |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Bluetooth 5.4, Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power adapter |
| Power Provided | 240 watt |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | NVIDIA Blackwell |
| Video Interfaces | HDMI, USB-C |
| Operating System / Software | |
| OS Provided | Ubuntu |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 4 TB |
| Interface Type | PCI Express 5.0 |
| Features | NVM Express (NVMe) |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 5.9 in |
| Height | 2 in |
| Weight | 3.26 lbs |
| Processor / Chipset | |
| CPU | NVIDIA GB10 Grace Blackwell Superchip v9.2-A |
| Number of Cores | 20-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
