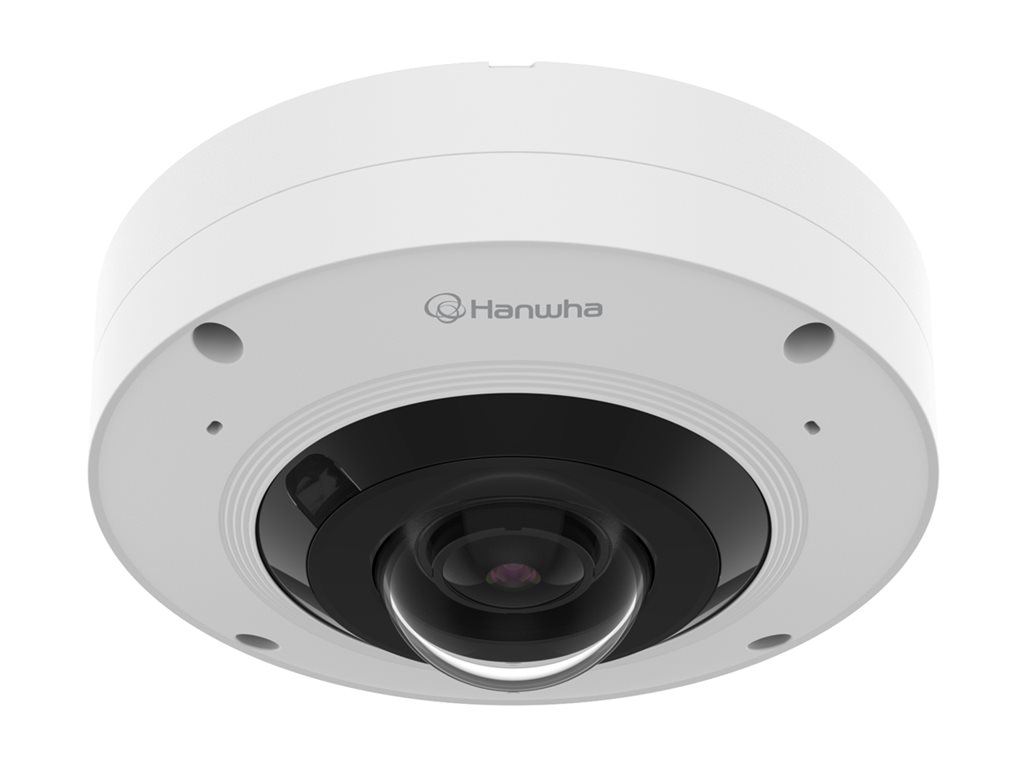

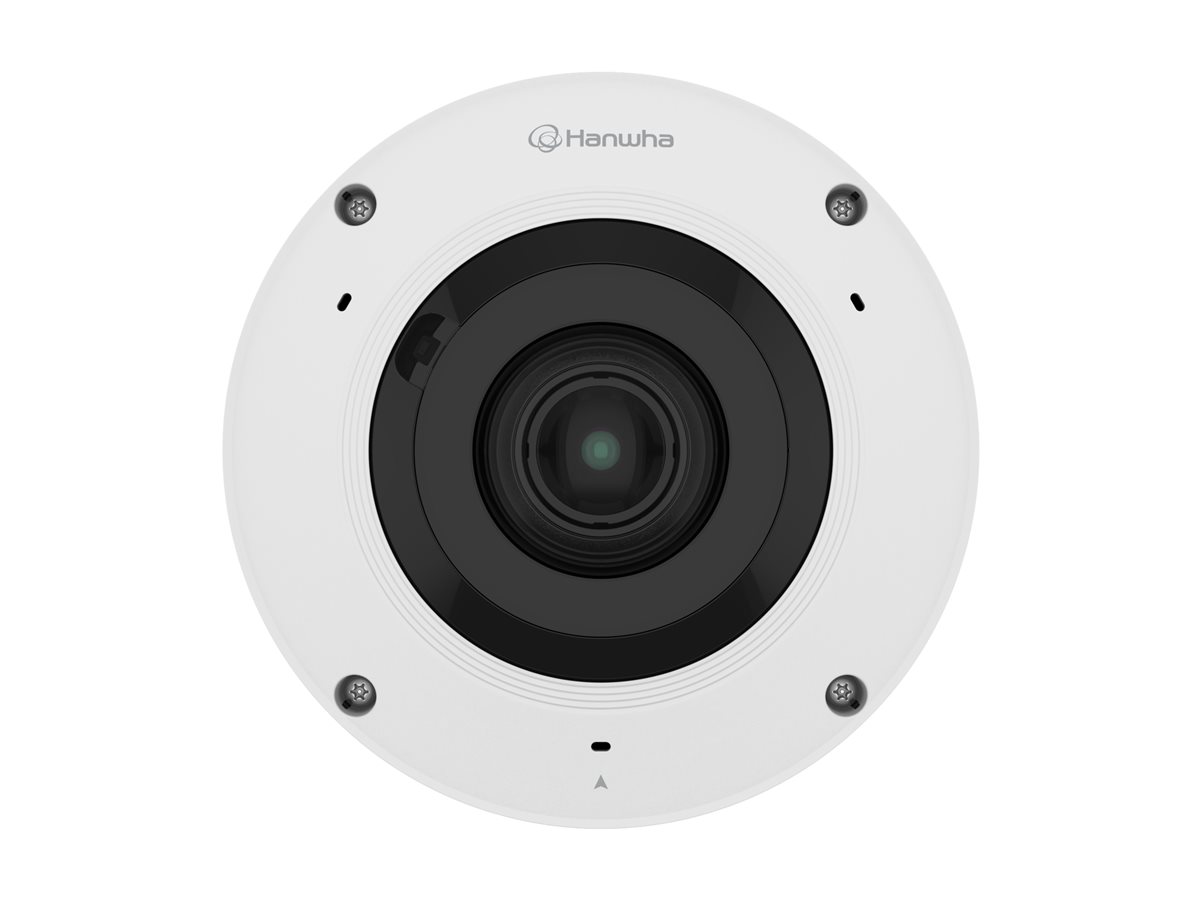

Network surveillance camera - fisheye - outdoor - color (Day&Night) - 6 MP - 2560 x 2560 - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Plus Class 4 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Hanwha Vision WiseNet X XNF-A8014RV - network surveillance camera - fisheye - TAA Compliant |
| Device Type | Network surveillance camera - fixed - fisheye - outdoor |
| Audio | Yes: built-in three microphones |
| Dimensions (WxDxH) | 6.3 in x 6.3 in x 3 in |
| Weight | 2.25 lbs |
| Color | White, RAL 9003 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2560 x 2560 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/1.6" - 6 MP |
| Minimum Illumination | 0.02 lux - color - 30 IRE - shutter 1/30 sec ¦ 0.001 lux - B&W - 30 IRE - shutter 1/30 sec |
| Focal Length Control | Fixed focal |
| Focal Length | 1.76 mm |
| Focus Adjustment | (min distance 19.7 in) |
| Lens Iris | F/1.8 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / PoE Plus Class 4 |
| Features | Digital image rotation, auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), WiseNR II, Samsung Super Noise Reduction (SSNRV), Digital Image Stabilization (DIS), Defog, auto gain control, auto white balance, digital PTZ function, image flip, image mirror, alarm function, Handover, email upload, FTP alerts, object classification, clothes color detection, Vehicle Detection, Virtual Line detection, entrance / exit detection, appearing / disappearing detection, intrusion detection, loitering detection, Tampering detection, shock detection, Audio Detection, WiseStream support, Variable Bitrate (VBR), Constant Bitrate (CBR), Unicast Streaming, Multicast Streaming, notification picture to E-mail, notification picture to FTP, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, hard-coated dome, aluminum enclosure |
| TAA Compliant | Yes |
| Environmental Parameters (operating) | -40 °F - 131 °F; 0 - 100% RH relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in three microphones |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711 |
| Form Factor | Fisheye |
| Connectivity Technology | Wired |
| Width | 6.3 in |
| Depth | 6.3 in |
| Height | 3 in |
| Weight | 2.25 lbs |
| Expansion / Connectivity | |
| Ports | Audio line-in/microphone ¦ Audio line out ¦ LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2, FIPS 140-3 |
| Miscellaneous | |
| TAA Compliant | Yes |
| Compliant Standards | IEEE 802.1x, AES-256, ETSI EN 303 645, IEEE 802.3af, IEEE 802.3at, RoHS 2011/65/EU, EN/IEC 63000:2018, EN 50121-4, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, RCM, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, EN 50121-3-2, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC 62471, IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA TS-2 2013 (2.2.7-2.2.8-2.2.9), NEMA 250 Type 4X, EN 50155, IEC 62236-4, EN 50498, IEC/EN61373, EN 45545, IEC 62236-3-2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, EN 62676-4 |
| Color | White, RAL 9003 |
| Power | |
| Power Requirements | DC 12 V / PoE Plus Class 4 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 100% RH |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2560 x 2560 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/30000 sec |
| Minimum Illumination | 0.02 lux - color - 30 IRE - shutter 1/30 sec ¦ 0.001 lux - B&W - 30 IRE - shutter 1/30 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 56 ft |
| Digital Video Capture Resolution | 2560 x 2560, 2560 x 1920, 2560 x 1280, 2560 x 640, 1920 x 960, 1920 x 480, 1792 x 1344, 1600 x 1600, 1280 x 1280, 1280 x 960, 1280 x 640, 1280 x 320, 1024 x 768, 1024 x 512, 1024 x 256, 800 x 800, 800 x 600, 640 x 640, 640 x 480, 640 x 320, 640 x 160, 480 x 480, 320 x 240, 160 x 160 |
| Frame Rate (max) | 30 frames per second |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Features | Digital image rotation, auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), WiseNR II, Samsung Super Noise Reduction (SSNRV), Digital Image Stabilization (DIS), Defog, auto gain control, auto white balance, digital PTZ function, image flip, image mirror, alarm function, Handover, email upload, FTP alerts, object classification, clothes color detection, Vehicle Detection, Virtual Line detection, entrance / exit detection, appearing / disappearing detection, intrusion detection, loitering detection, Tampering detection, shock detection, Audio Detection, WiseStream support, Variable Bitrate (VBR), Constant Bitrate (CBR), Unicast Streaming, Multicast Streaming, notification picture to E-mail, notification picture to FTP, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, hard-coated dome, aluminum enclosure |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 1.76 mm |
| Lens Iris | F/1.8 |
| Min Focus Distance | 19.7 in |
| Horizontal Field of View (degree) | 185 |
| Vertical Field of View (degree) | 185 |
| Diagonal Field of View (degree) | 185 |
| Image Sensor | |
| Type | 6 MP CMOS 1/1.6" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | SUNAPI, IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, RTCP, RTSP, NTP, HTTP, HTTPS, DHCP, FTP, SFTP, ICMP, IGMP, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, CDP, SRTP, MQTT, SMTP, Syslog, TCP, SNMP 1, SNMP 2c, SNMP 3, SSL, TLS |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 2 |
