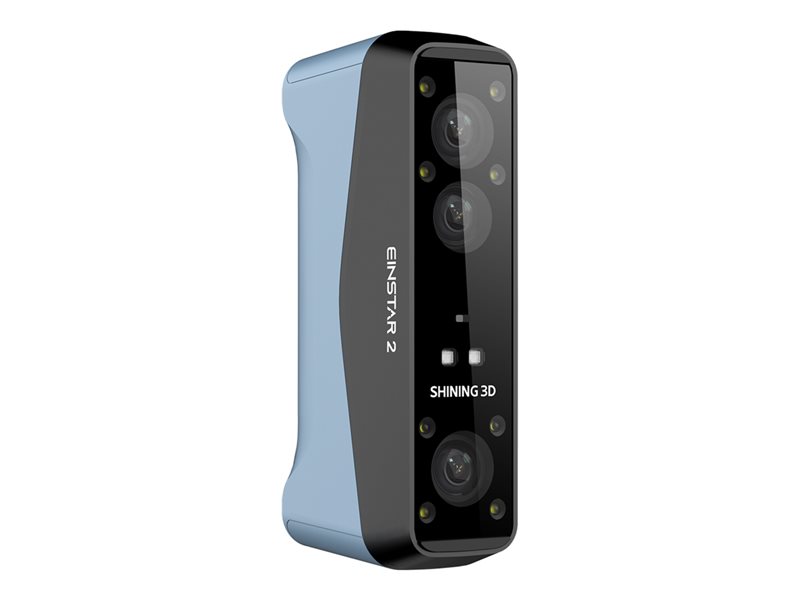

3D scanner - handheld - cameras - USB-C
| Main Specifications | |
|---|---|
| Product Description | Afinia Einstar 2 - 3D scanner - handheld - USB-C |
| Device Type | 3D scanner - handheld |
| Interface Type | USB-C |
| Scanning Sensor Type | Cameras |
| Light Source | IR VCSEL / blue laser |
| Scan Speed | 2500000 points/sec, 90 fps |
| Max Scan Size | 19.69 in x 19.69 in x 19.69 in |
| Min Scan Size | 1 x 1 x 1 cm |
| Battery | 2 |
| System Requirements | Windows 11 Pro (version 22H2) |
| Dimensions (WxDxH) | 1.5 in x 2.4 in x 5.1 in |
| Weight | 14.81 oz |
| General | |
| Type | 3D scanner - handheld |
| Interface Type | USB-C |
| Expansion / Connectivity | |
| Interfaces Details | USB 3.0 - Type C |
| Miscellaneous | |
| Included Accessories | Carrying case, calibration board, universal holder, power adapter, power cable, reflective markers |
| Cables Included | 1 x USB-C cable |
| Compliant Standards | RoHS, FCC, WEEE, FDA, SRRC, IP50 |
| Media Handling | |
| Max Scan Size | 19.69 in x 19.69 in x 19.69 in |
| Min Scan Size | 1 x 1 x 1 cm |
| Power | |
| Power Device | External power adapter |
| Software / System Requirements | |
| Software Included | ExStar Hub |
| OS Required | Windows 11 Pro (version 22H2) |
| System Requirements Details | Core i7 RAM 32 GB |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Battery | |
| Battery Installed | 2 |
| Capacity | 5500 mAh |
| Run Time (Up To) | 3 hours |
| Scanner | |
| Scanning Sensor Type | Cameras |
| Lamp / Light Source Type | IR VCSEL / blue laser |
| Scan Speed | 2500000 points/sec, 90 fps |
| Scanner Features | 17 parallel laser lines, outdoor scanning, IR rapid scan mode, 2 depth cameras, white flash LED, indicator light, swappable batteries, RGB camera, full color scanning, reflective surfaces scanning, portrait scanning, Laser HD mode, Wi-Fi Direct, black surfaces scanning, metallic surfaces scanning |
| Output File Formats | STL, OBJ, PLY, 3MF, ASC |
| Dimensions & Weight | |
| Width | 1.5 in |
| Depth | 2.4 in |
| Height | 5.1 in |
| Weight | 14.81 oz |
