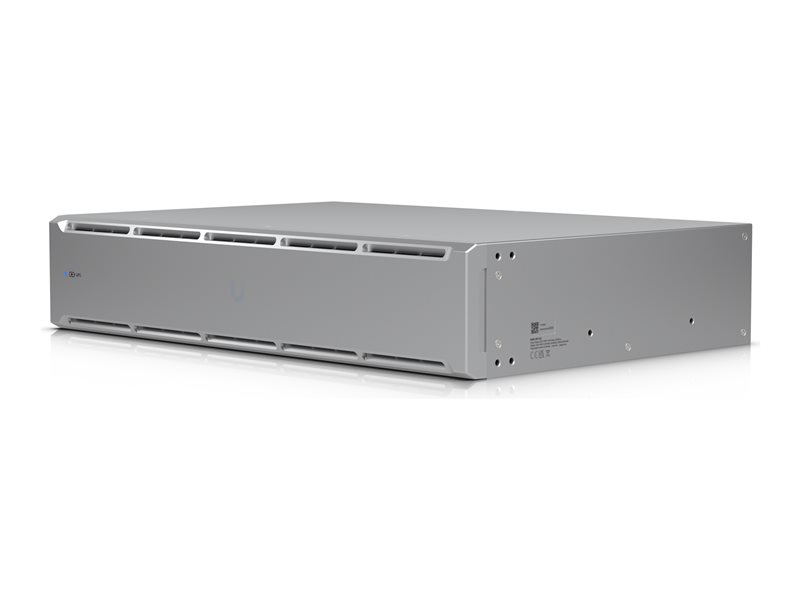

UPS (rack-mountable) - AC 230 V - 1000 Watt - 1500 VA - 9 Ah - Ethernet 10/100 - output connectors: 8 - 2U
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti UniFi - UPS - 1000 Watt - 1500 VA |
| Device Type | UPS - rack-mountable |
| Rack Size | 2U |
| Weight | 30.2 lbs |
| Input Voltage | AC 230 V |
| Output Voltage | AC 220-240 V ± 10% |
| Power Capacity | 1000 Watt / 1500 VA |
| Input Connectors | 1 x power IEC 60320 C14 |
| Output connectors | 4 x power IEC 60320 C13 (surge) - 230 V ¦ 4 x power IEC 60320 C13 (UPS and surge) - 230 V |
| Battery | Lead acid - 9 Ah |
| Run Time (Up To) | 2.3 min at full load |
| Networking | Ethernet 10/100 |
| Dimensions (WxDxH) | 17.4 in x 11.8 in x 3.4 in |
| General | |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Fast Ethernet) - RJ-45 |
| Miscellaneous | |
| Cables Included | AC input cable - external ¦ 2 x output cable - external |
| Rack Mounting Kit | Included |
| Features | Graceful shutdown technology, on/off power switch, reset button, steel enclosure, overload protection, short-circuit protection, LED indicator, low-battery alert |
| Compliant Standards | IEC 62040-1 |
| Networking | |
| Remote Management Interface | Ethernet 10/100 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Battery | |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 2.3 min at full load ¦ 8 min at half load |
| Recharge Time | 8 hours |
| Transfer Time | 10 ms |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 170 - 280 V |
| Frequency Provided | 50/60 Hz ± 5Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 4 x power IEC 60320 C13 (surge) - 230 V ¦ 4 x power IEC 60320 C13 (UPS and surge) - 230 V |
| Output Voltage | AC 220-240 V ± 10% - 50/60 Hz |
| Max Electric Current | 10 A |
| Power Capacity | 1000 Watt / 1500 VA |
| Dataline Surge Protection | Ethernet 10/100/1000Base-T - RJ-45 - 1 input line / 1 output line |
| Output Waveform | Simulated sine wave |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 11.8 in |
| Height | 3.4 in |
| Weight | 30.2 lbs |
