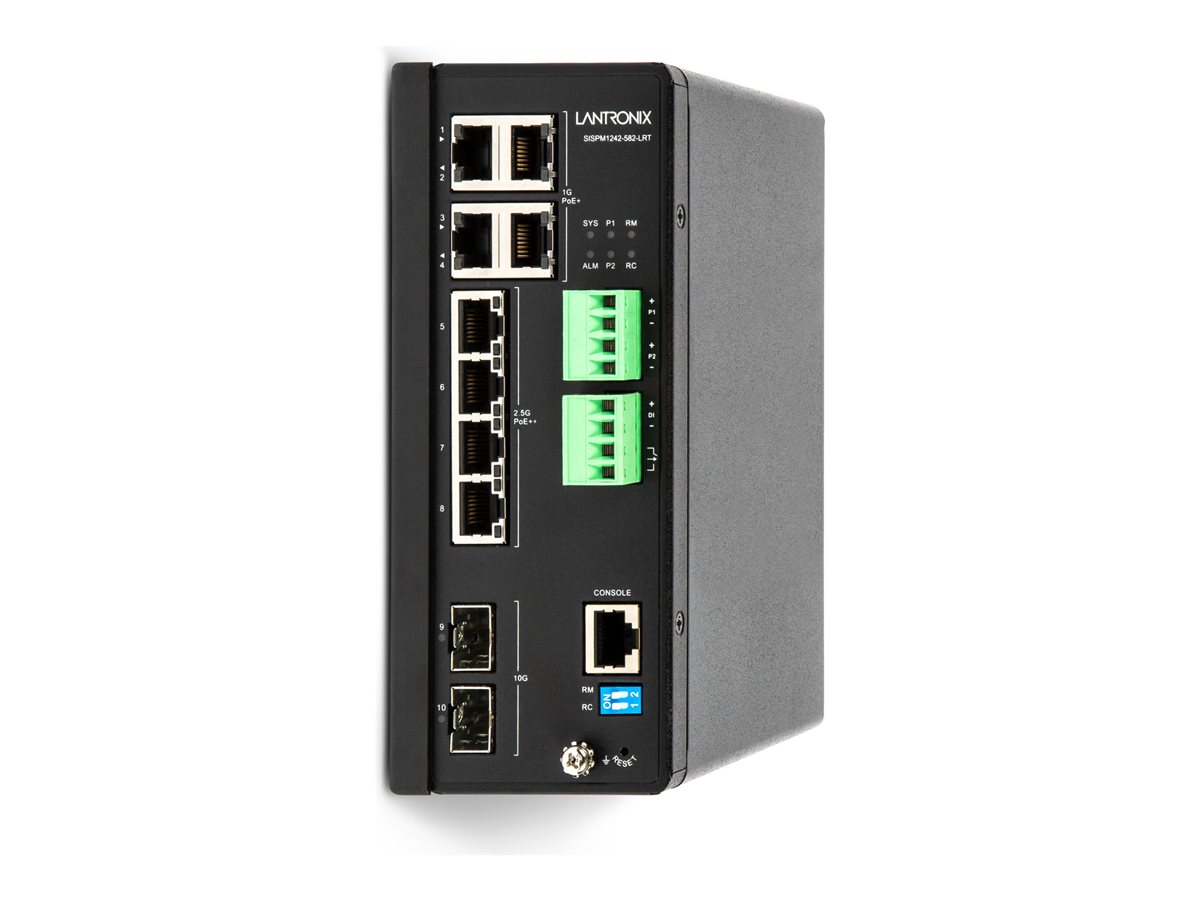

Switch - hardened - managed - 4 x 10/100/1000 (PoE+) + 4 x 100/1000/2.5G (PoE++) + 2 x 1/10 Gigabit SFP - DIN rail mountable - PoE++ (360 W) - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix SISPM1242-582-LRT - switch - hardened - 10 ports - managed - TAA Compliant |
| Device Type | Switch - 10 ports - managed |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 4 x 100/1000/2.5G (PoE++) + 2 x 1/10 Gigabit SFP |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 360 W |
| Performance | Switching capacity: 68 Gbps |
| Capacity | ACL entries: 512 ¦ VLAN entries: up to 4000 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, static IP routing, OSPFv2, OSPFv3, RIP-1, RIP-2 |
| Remote Management Protocol | DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, CLI, IPv4, IPv6, RADIUS, TACACS+, TLS, RSTP |
| Features | Store-and-forward technology, CSMA/CD, PoE scheduling, APR, DHCP support, Always on PoE, DMS, web-based management, trunking, LACP, MLD snooping, MLD snooping v2, MVR, port rate limiting, Port Scheduling, QoS, Ingress Layer 2 MAC ACLs, 802.1x authentication, IP source guard, Port Security, Storm Control, DHCP snooping, loop protection, secure web gateway, STP support, MSTP support, port-based VLAN, QinQ VLAN, firmware upgradable, MAC based VLAN, Private VLAN, VLAN management, Voice VLAN, MRP, dynamic routing, DHCP relay, DHCP server, port mirroring, Syslog support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3ah, IEEE 802.3bt, IEEE 802.1ag, IEEE 802.3az, IEEE 1588v2, ITU-T Y.1731, ITU-T G.8031, ITU-T G.8032, IEEE 802.1x |
| Power | DC 52 - 57 V |
| Dimensions (WxDxH) | 2.4 in x 5.1 in x 6.6 in |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Switch - 10 ports - managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 4 x 100/1000/2.5G (PoE++) + 2 x 1/10 Gigabit SFP |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 360 W |
| Performance | Switching capacity: 68 Gbps |
| Capacity | ACL entries: 512 ¦ VLAN entries: up to 4000 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, static IP routing, OSPFv2, OSPFv3, RIP-1, RIP-2 |
| Remote Management Protocol | DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, CLI, IPv4, IPv6, RADIUS, TACACS+, TLS, RSTP |
| Features | Store-and-forward technology, CSMA/CD, PoE scheduling, APR, DHCP support, Always on PoE, DMS, web-based management, trunking, LACP, MLD snooping, MLD snooping v2, MVR, port rate limiting, Port Scheduling, QoS, Ingress Layer 2 MAC ACLs, 802.1x authentication, IP source guard, Port Security, Storm Control, DHCP snooping, loop protection, secure web gateway, STP support, MSTP support, port-based VLAN, QinQ VLAN, firmware upgradable, MAC based VLAN, Private VLAN, VLAN management, Voice VLAN, MRP, dynamic routing, DHCP relay, DHCP server, port mirroring, Syslog support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3ah, IEEE 802.3bt, IEEE 802.1ag, IEEE 802.3az, IEEE 1588v2, ITU-T Y.1731, ITU-T G.8031, ITU-T G.8032, IEEE 802.1x |
| Status Indicators | Alarm, system, power 1, power 2, port status |
| Expansion / Connectivity | |
| Interfaces | 4 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x 100/1000/2.5G RJ-45 PoE++ ¦ 2 x 1/10Gbit LAN SFP ¦ 1 x console RJ-45 management |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | DIN-rail bracket |
| Compliant Standards | NDAA, IP30, FCC Class A certified, NEMA TS-2, UL 2108, EN 62368-1, UL 62368-1 |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | DC 52 - 57 V |
| Power Consumption Operational | 13 Watt |
| Software / System Requirements | |
| Software Included | Percepxion IoT Edge Solutions Platform |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Dimensions & Weight | |
| Width | 2.4 in |
| Depth | 5.1 in |
| Height | 6.6 in |
