Conference camera - indoor - color (Day&Night) - 8.4 MP - 1920 x 1080 - motorized - HDMI, 3G-SDI - GbE - YUY2, MJPEG, H.264, AVC, H.265, HEVC - DC 12 V / PoE
| Main Specifications | |
|---|---|
| Product Description | PTZOptics Studio SE PT12X-STUDIO-SE-GY-G3 - conference camera |
| Device Type | Conference camera - fixed - indoor |
| Dimensions (WxDxH) | 3 in x 5.7 in x 3.1 in |
| Weight | 23.98 oz |
| Color | Gray |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 12 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080/25p, 1080/29.97PsF, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60i, 1080/60p, 720/30p, 720/50p, 720/59.94p, 720/60p |
| Optical Sensor Type | CMOS - 1/2.8" - 8.4 MP |
| Minimum Illumination | 0.5 lux F1.8 - AGC on |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.1 mm - 49.2 mm |
| Lens Iris | F/1.8-2.68 |
| Interfaces | HDMI, 3G-SDI, Ethernet 10Base-T/100Base-TX/1000Base-T |
| Control Interface | RS-485 |
| Cables Included | 1 - USB-C to USB-A cable - external |
| Voltage | DC 12 V / PoE |
| Features | 80.2° field of view, 255 preset positions, 0.1° preset accuracy, image flip, image mirror, image freeze, aluminum/plastic housing, NDI|HX3 technology, Scalable Video Coding (SVC), USB video class (UVC 1.1), auto color correction, auto tracking, Smartphone Monitoring |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | 14 °F - 104 °F |
| General | |
| Device Type | Conference camera |
| Connectivity Technology | Wired |
| Width | 3 in |
| Depth | 5.7 in |
| Height | 3.1 in |
| Weight | 23.98 oz |
| Expansion / Connectivity | |

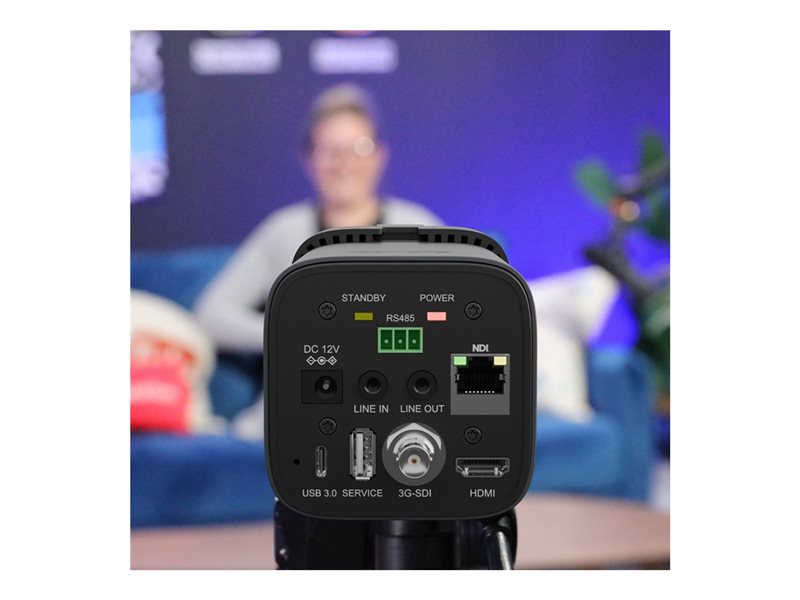

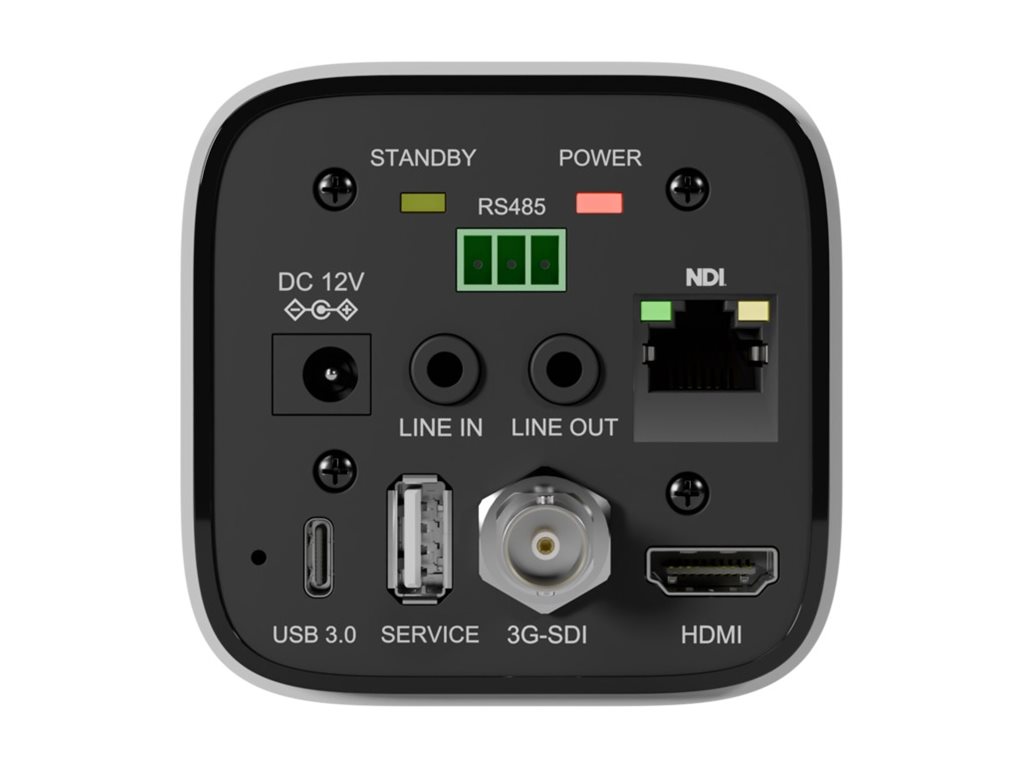

| Ports | NDI/power - RJ-45 ¦ HDMI ¦ 3G-SDI - BNC ¦ USB 2.0 - 4 pin USB Type A ¦ Serial RS-485 - terminal block ¦ USB 3.0 - 24-pin USB-C ¦ Audio line in - 3.5 mm jack ¦ Audio line out - 3.5 mm jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | Remote control, 2 AAA batteries, lens cap |
| Cables Included | 1 x USB-C to USB-A cable - external |
| Compliant Standards | IEEE 802.3at, NDAA Section 889 |
| Color | Gray |
| Power | |
| Power Requirements | DC 12 V / PoE - 2 A |
| Power Device | Power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Camera | |
| Type | Color - Day&Night - fixed - indoor |
| Digital Video Format | YUY2, MJPEG, H.264, AVC, H.265, HEVC |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080/25p, 1080/29.97PsF, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60i, 1080/60p, 720/30p, 720/50p, 720/59.94p, 720/60p |
| Digital Zoom | 16 |
| Exposure Range | 1/30 sec - 1/10000 sec |
| Minimum Illumination | 0.5 lux F1.8 - AGC on |
| Infrared LEDs | 4 |
| Infrared Distance | 30 ft |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Features | 80.2° field of view, 255 preset positions, 0.1° preset accuracy, image flip, image mirror, image freeze, aluminum/plastic housing, NDI|HX3 technology, Scalable Video Coding (SVC), USB video class (UVC 1.1), auto color correction, auto tracking, Smartphone Monitoring |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 12 x |
| Focal Length | 4.1 mm - 49.2 mm |
| Lens Iris | F/1.8-2.68 |
| Horizontal Field of View (degree) | 6.9 - 72.5 |
| Vertical Field of View (degree) | 3.9 - 44.8 |
| Image Sensor | |
| Type | 8.4 MP CMOS 1/2.8" |
| Interfaces | |
| Video | HDMI, 3G-SDI |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | NDI HX3, TCP/IP, UDP, HTTP, RTSP, RTMPS, RTMP, ONVIF, SRT |
| Control Interface | RS-485 |
