IP speaker - for PA system - PoE, PoE-Plus - 30 watt - white
| Main Specifications | |
|---|---|
| Product Description | Bogen Nyquist NQ-IPHRN01 - IP speaker - for PA system |
| Product Type | IP speaker - for PA system |
| Protection | Waterproof, dustproof |
| Enclosure Design | Horn |
| Speaker Type | Active |
| Continuous Power | 30 watt |
| Frequency Response | 350 - 7500 Hz |
| Nominal Impedance | 8 ohm |
| Amplifier | Integrated |
| Interfaces | PoE, PoE-Plus |
| Color | White |
| Power | DC 24 V |

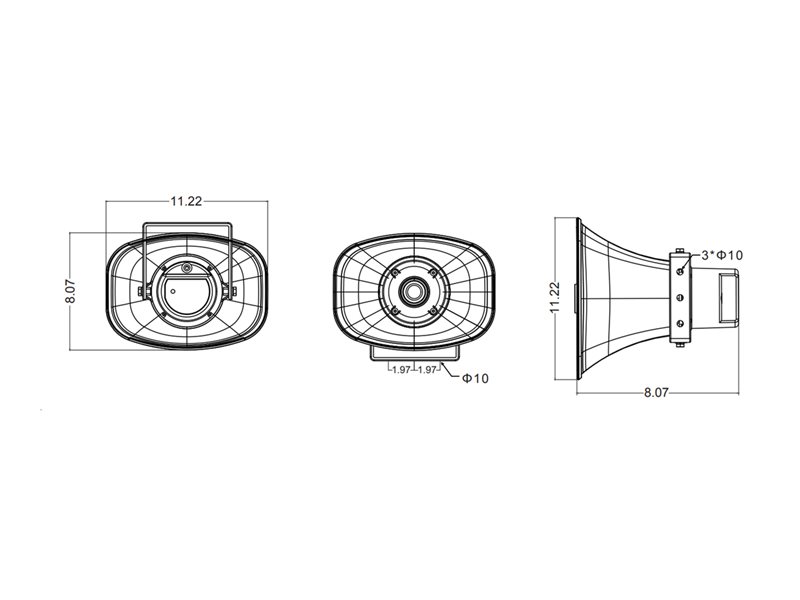

| Dimensions (WxDxH) | 11.2 in x 11.2 in x 8.1 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | IP speaker - for PA system |
| Features | Talkback speaker, HD intercom support |
| Microphone | Yes |
| Protection | Waterproof, dustproof |
| Enclosure Color | White |
| Enclosure Design | Horn |
| Enclosure Material | ABS plastic |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | 2 phoenix connectors, 2-pin connector, 3-pin connector, RJ45 connector |
| Compliant Standards | IP66, IEEE 802.3af, IEEE 802.3at |
| Power | |
| Power Source | DC power adapter, Power over Ethernet (PoE) |
| Voltage Required | DC 24 V |
| Connections | |
| Connector Type | LAN (RJ-45) ¦ Power input (power DC jack) ¦ Audio input (terminal block) ¦ Audio output (terminal block) |
| Dimensions & Weight | |
| Width | 11.2 in |
| Depth | 11.2 in |
| Height | 8.1 in |
| Speaker System | |
| Speaker Type | Active |
| Continuous Power | 30 watt |
| Continuous Power Details | 8 W (PoE), 15 W (PoE+) |
| Frequency Response | 350 - 7500 Hz |
| Nominal Impedance | 8 ohm |
| Max Output Level (Max SPL) | 120 dB |
| Sensitivity | 107 dB (1W@1m) |
| Amplifier | Integrated |
| Interfaces | IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus) |
| VoIP Protocols | SIP |
| Voice Codecs | Opus |
| Network Protocols | SIP, HTTP, DHCP |
| Recommended Placing | Indoor / outdoor |
