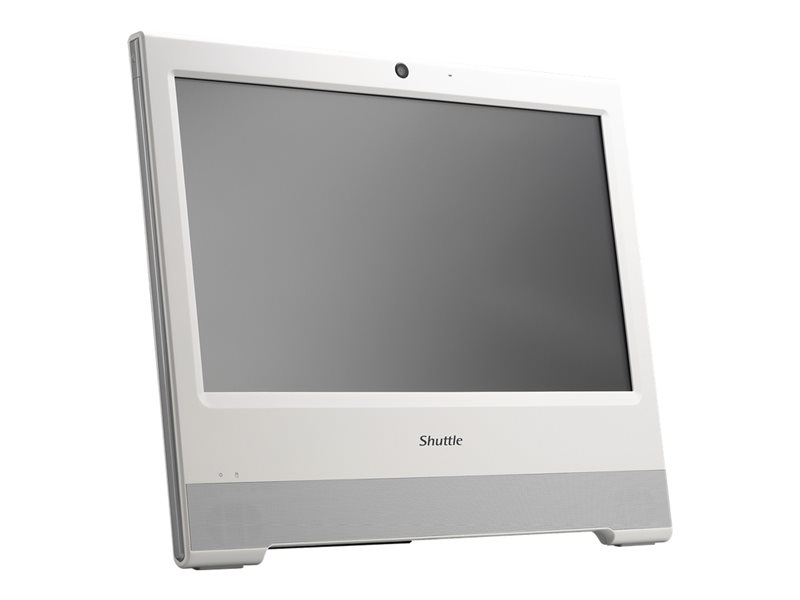

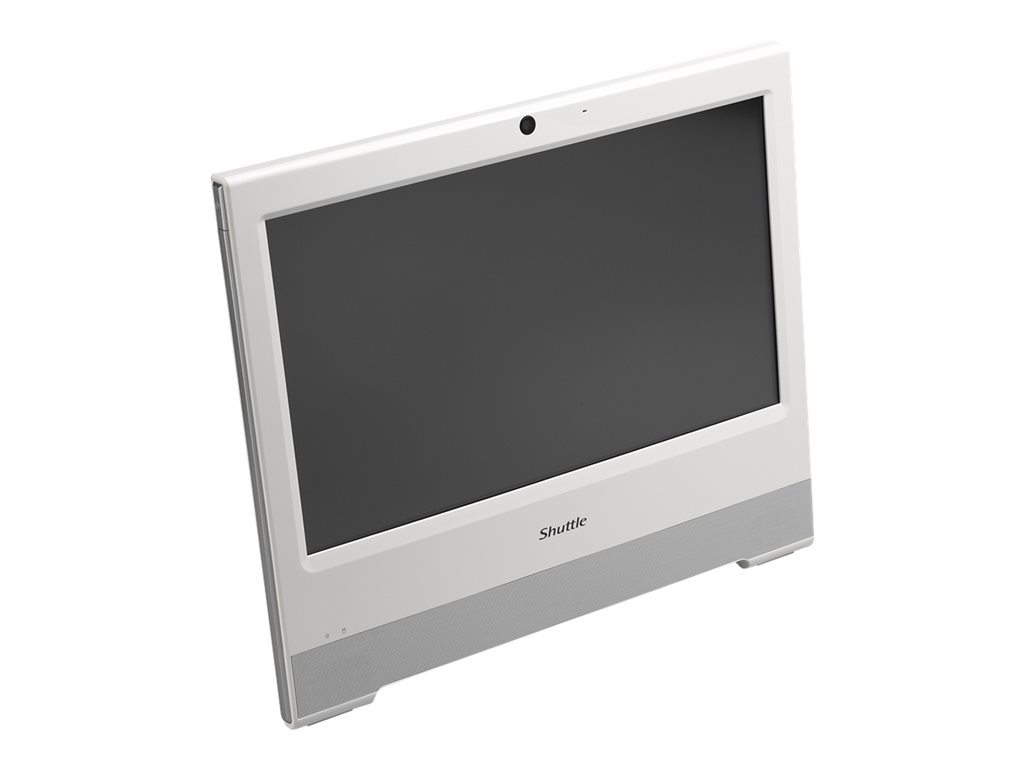

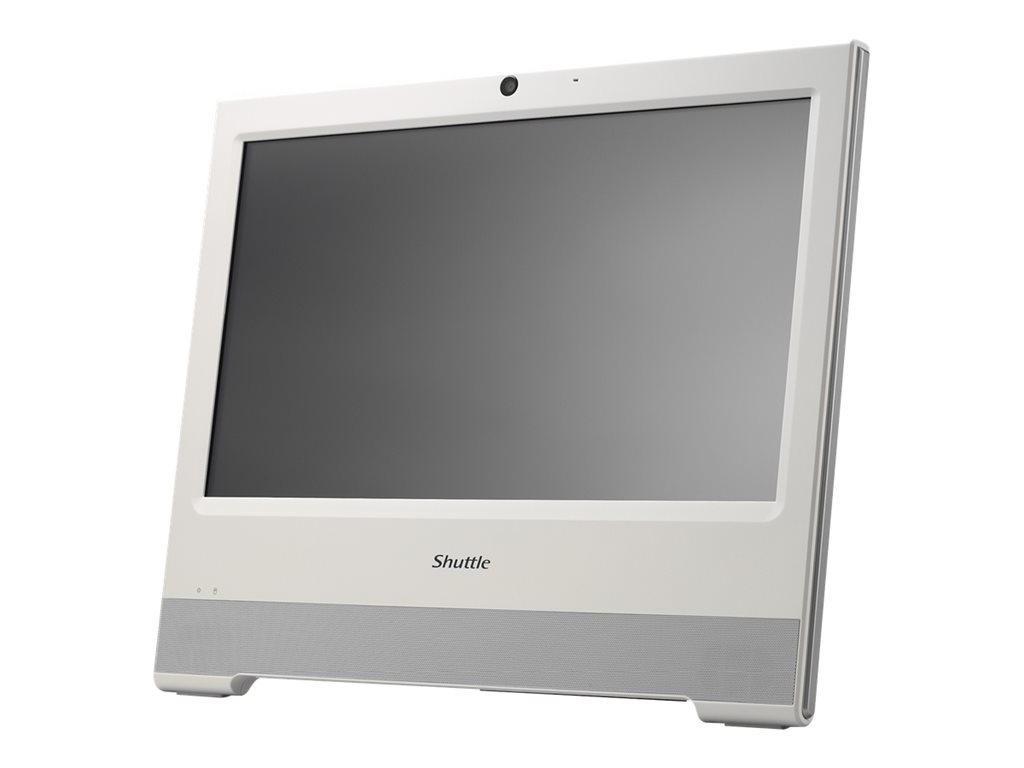

Barebone - all-in-one 1 x Core i3 10110U / up to 4.1 GHz Ultra Low Power - RAM 0 GB - UHD Graphics - Gigabit Ethernet - monitor: LED 15.6" 1366 x 768 (HD) touchscreen - white
| Main Specifications | |
|---|---|
| Product Description | Shuttle XPC X50V8U3 - all-in-one Core i3 10110U 2.1 GHz - 0 GB - no HDD - LED 15.6" |
| Type | PC barebone - all-in-one |
| Processor | 1 x Intel Core i3 (10th Gen) 10110U / 2.1 GHz (up to 4.1 GHz, Ultra Low Power (Dual-Core) |
| Cache Memory | 4 MB |
| Cache Per Processor | 4 MB |
| RAM | 0 GB (installed) / 64 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s); NVMe (NVM Express) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Monitor | 15.6" - LED - 1366 x 768 (HD) - 16:9 - touchscreen |
| Graphics Controller | Intel UHD Graphics |
| Camera | Yes |
| Audio Output | Stereo |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 4.2 |
| Power | (50/60 Hz) |
| OS Provided | No operating system |
| Color | White |
| Dimensions (WxDxH) | 15.4 in x 1.7 in x 12.9 in |
| Weight | 7.72 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| General | |
| Type | PC barebone |
| Product Form Factor | All-in-one |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Color | White |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 (Key B-M) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module) |
| Interfaces | 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out/headphones - mini-jack ¦ 1 x microphone - mini-jack ¦ 4 x USB 3.2 Gen 1 |
| Miscellaneous | |
| Included Accessories | Screw set |
| Cables Included | Serial ATA cable |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm |
| Compliant Standards | BSMI, CB, FCC, RoHS, ETL, Energy-Related Products (ErP) Lot 6, IP54, EMI, ErP 2009/125/EC, EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU |
| RAM | |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 2 (empty) |
| Features | Unbuffered |
| Networking | |
| Wireless LAN Supported | Yes |
| Wireless NIC | Realtek RTL8821CE-CG |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Features | Wake on LAN (WoL), PXE support |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 65 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Cache Memory | |
| Installed Size | 4 MB |
| Cache Per Processor | 4 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED |
| Touchscreen | Yes |
| Diagonal Size | 15.6" |
| Native Resolution | 1366 x 768 (HD) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 220 cd/m² |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | VGA, HDMI |
| Audio Output | |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Operating System / Software | |
| OS Provided | No operating system |
| Storage Controller (2nd) | |
| Type | 1 x NVMe |
| Controller Interface Type | NVM Express |
| Channel Qty | 1 |
| Hard Drive | |
| Type | No HDD |
| Camera | |
| Camera | Yes |
| Resolution | 1920 x 1080 |
| Audio Input | |
| Type | Microphone |
| Dimensions & Weight | |
| Width | 15.4 in |
| Depth | 1.7 in |
| Height | 12.9 in |
| Weight | 7.72 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 9.26 lbs |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Processor / Chipset | |
| CPU | Intel Core i3 (10th Gen) 10110U |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Power Efficiency | Ultra Low Power |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
