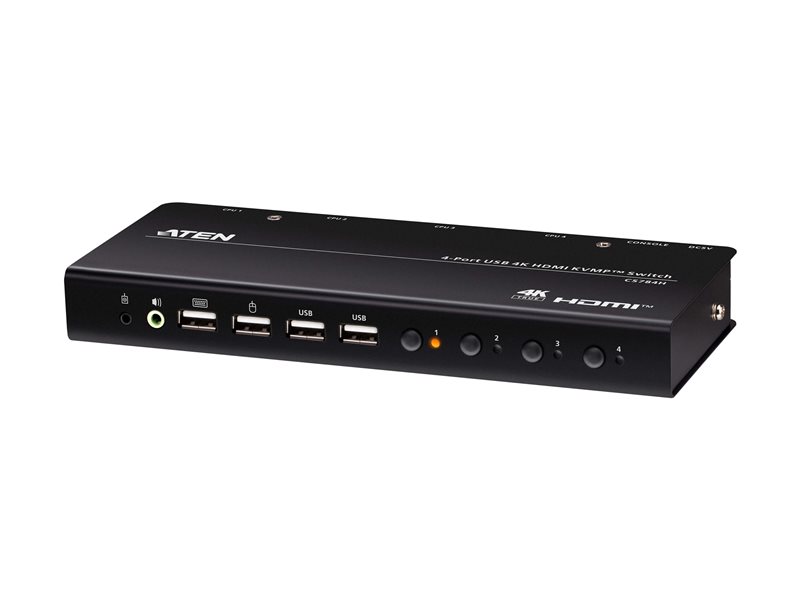

KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop
| Main Specifications | |
|---|---|
| Product Description | ATEN CS784H - KVM / audio / USB switch - 4 ports |
| Device Type | KVM / audio / USB switch - 4 ports |
| Subtype | HDMI |
| Ports | 4 x KVM / audio / USB |
| KVM Users Qty | 1 local user |
| Features | Metal housing, plastic housing |
| Compliant Standards | USB 2.0 |
| Dimensions (WxDxH) | 8 in x 3.2 in x 1 in |
| Weight | 16.58 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Ports | 4 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 5120 x 1440 @ 60 Hz |
| Features | Metal housing, plastic housing, ATEN Video DynaSync |
| Compliant Standards | USB 2.0 |
| Built-in Devices | USB hub |
| Status Indicators | Online |
| Expansion / Connectivity | |

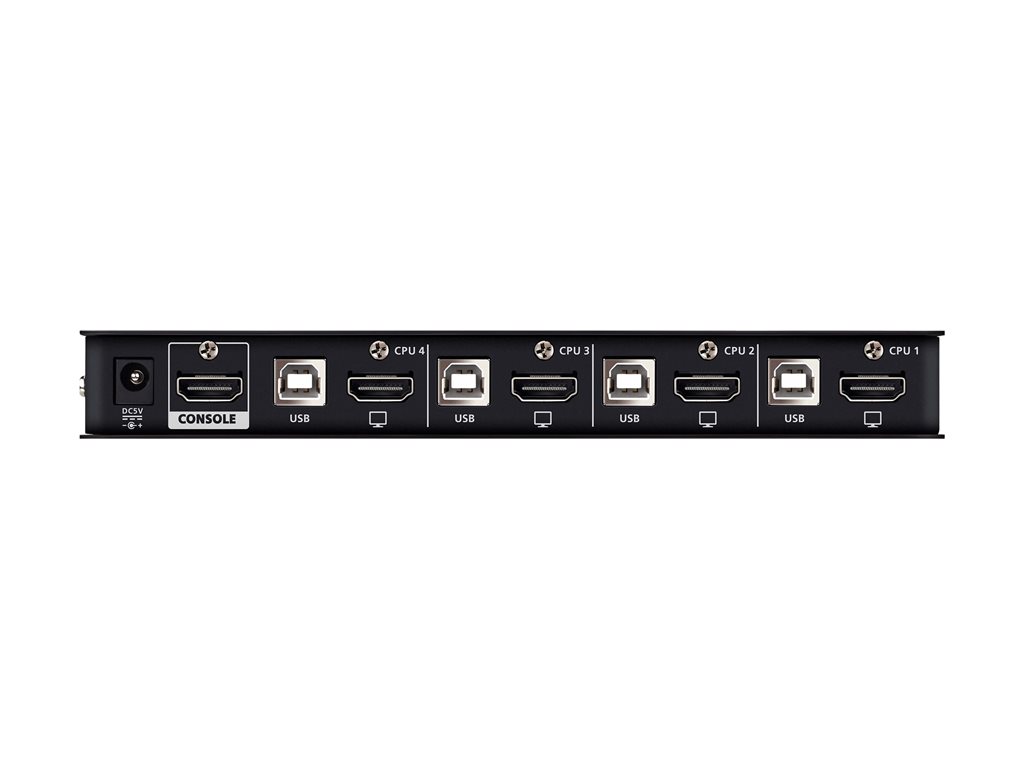

| Interfaces | 1 x keyboard (USB) Type A console ¦ 1 x mouse (USB) Type A console ¦ 2 x HDMI Type A console ¦ 4 x audio mini-jack console ¦ 4 x keyboard (USB) / mouse (USB) Type B ¦ 4 x HDMI Type A ¦ 2 x USB 2.0 Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Remote port selector switch, power adapter |
| Cables Included | 4 x HDMI cable ¦ 4 x USB cable |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 1.7 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 8 in |
| Depth | 3.2 in |
| Height | 1 in |
| Weight | 16.58 oz |
