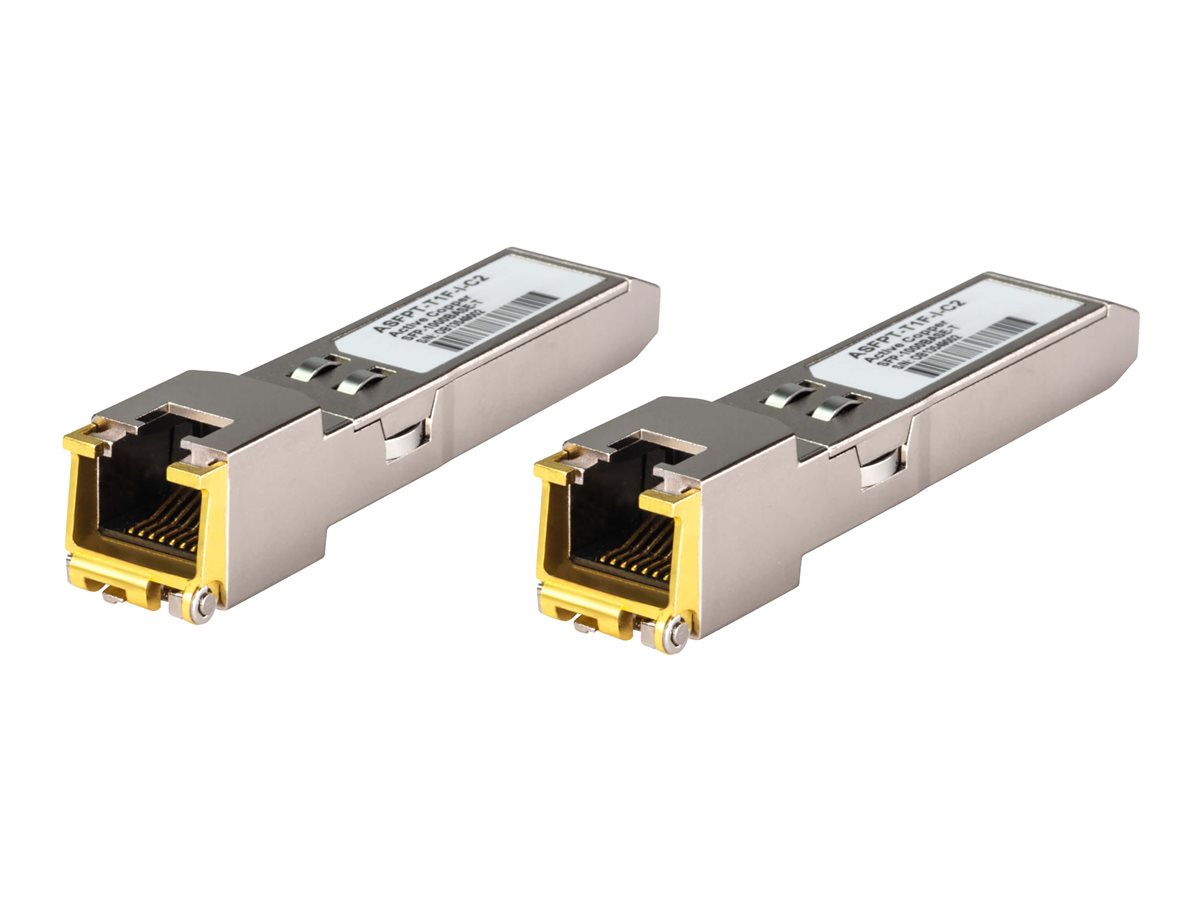

SFP (mini-GBIC) transceiver module - 1GbE - over CAT 5e/6/6a - 1000Base-T, 100Base-TX, 10Base-T - RJ-45 - up to 328 ft (pack of 2)
| Main Specifications | |
|---|---|
| Product Description | ATEN - SFP (mini-GBIC) transceiver module - 1GbE, 10Mb LAN, 100Mb LAN |
| Device Type | SFP (mini-GBIC) transceiver module - RJ-45 |
| Packaged Quantity | 2 (specifications are for single item) |
| Form Factor | Plug-in module |
| Cabling Type | 1000Base-T, 100Base-TX, 10Base-T |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 1GbE, 10Mb LAN, 100Mb LAN |
| Transmission Medium | CAT 5e/6/6a |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 0.5 in x 2.7 in x 0.5 in |
| Weight | 0.71 oz |
| General | |
| Packaged Quantity | 2 (specifications are for single item) |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T, 100Base-TX, 10Base-T |
| Data Link Protocol | 1GbE, 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 1 Gbps |
| Max Transfer Distance | 328 ft |
| Features | Hot-pluggable, copper conductor |
| Compliant Standards | IEEE 802.3ab |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.7 in |
| Height | 0.5 in |
| Weight | 0.71 oz |
