Control module
| Main Specifications | |
|---|---|

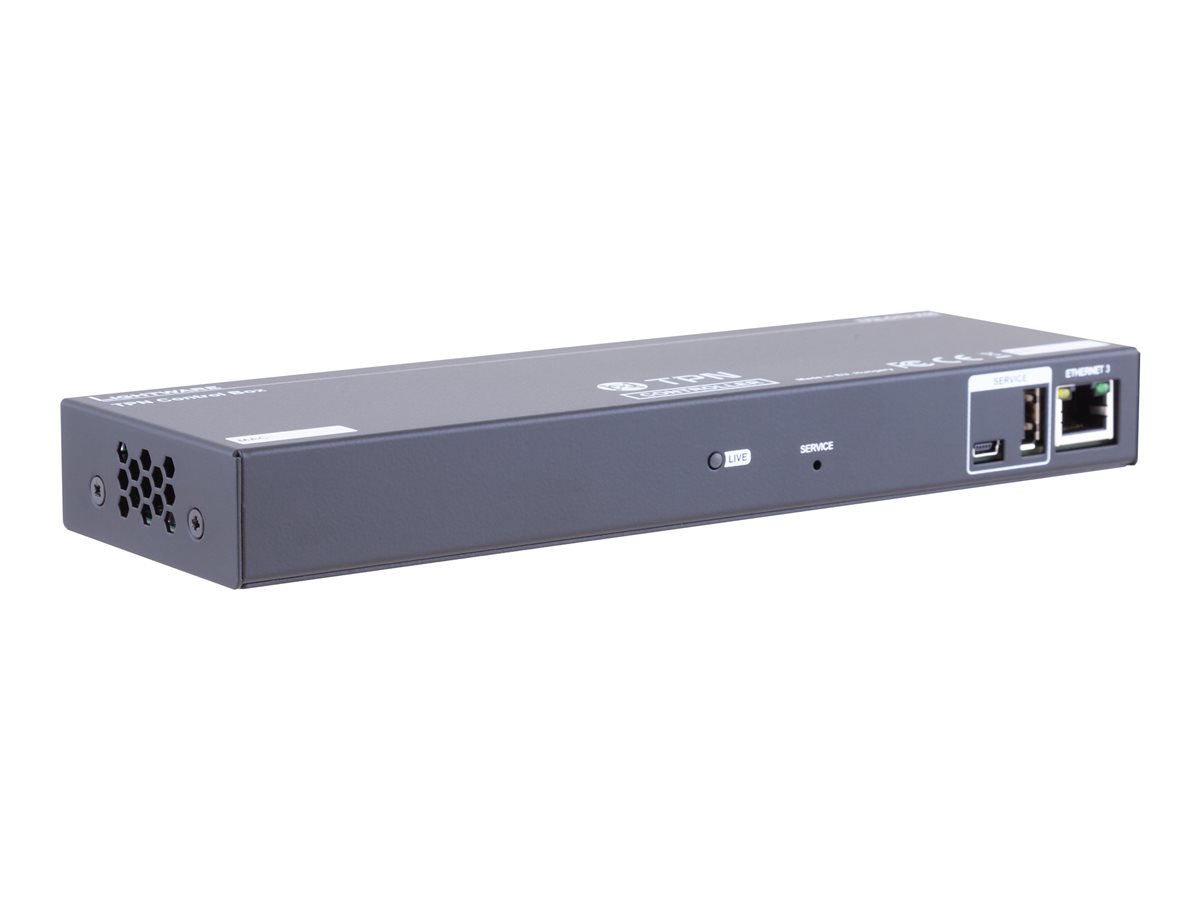

| Product Description | Lightware TPN-CTU-X50 control module |
| Type | Control module |
| Dimensions (WxDxH) | 8.7 in - 2.7 in - 1 in |
| Weight | 15.8 oz |
| Manufacturer Warranty | 3 years |
| General | |
| Type | Control module |
| Width | 8.7 in |
| Depth | 2.7 in |
| Height | 1 in |
| Weight | 15.8 oz |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | AC 120/230 V AC 100-240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 7.5 Watt |
| Low Voltage Power | DC 5 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Kit Content | |
| Kit Content | (1) x controller module - Lightware TPN-CTU-X50 ¦ (1) x power adapter ¦ (3) x power plug adapter ¦ (2) x 3-pole Phoenix connector ¦ 3-pole Phoenix connector ¦ 8-pole Phoenix connector ¦ (2) x screw |
| Terminals | |
| Terminals | (3) x network - RJ-45 ¦ (1) x GPIO - 8 pin Phoenix type ¦ (1) x sensor port - 3 pin Phoenix type - male ¦ (2) x RS-232 - 3 pin Phoenix type - male ¦ (1) x service port - mini-USB Type B ¦ (1) x service port - 4 pin USB type A |
| Studio & Production Equipment | |
| Features | SDVoE compliant, EDID support, HDCP manager, LED indicator, firmware upgradable |
