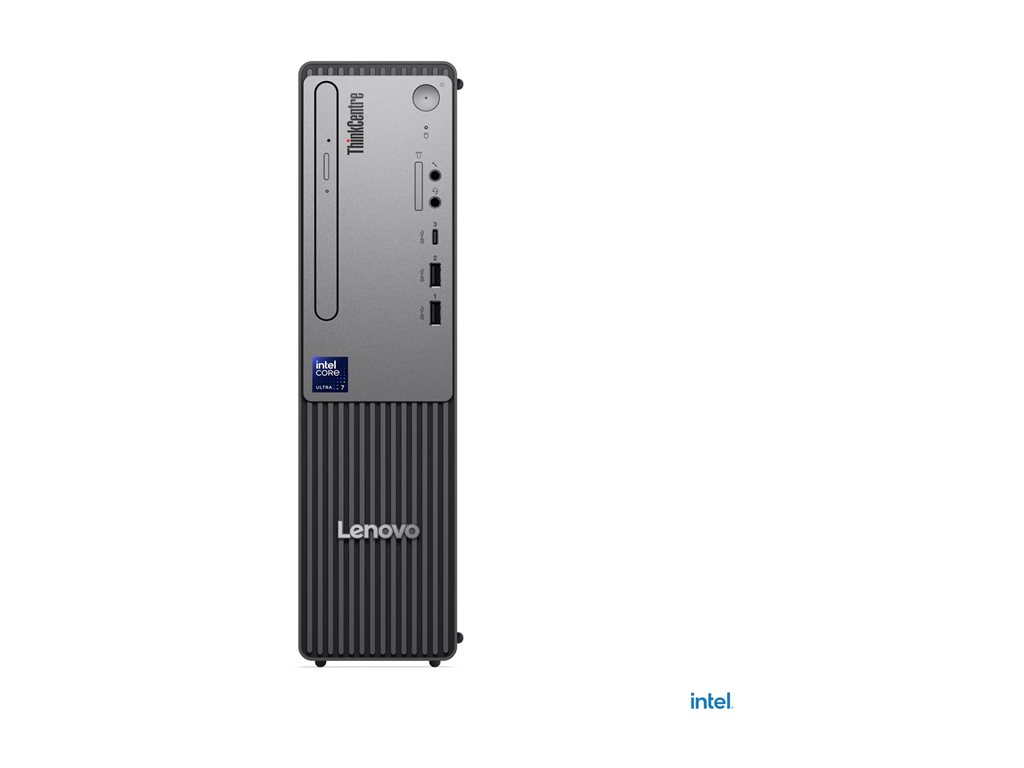

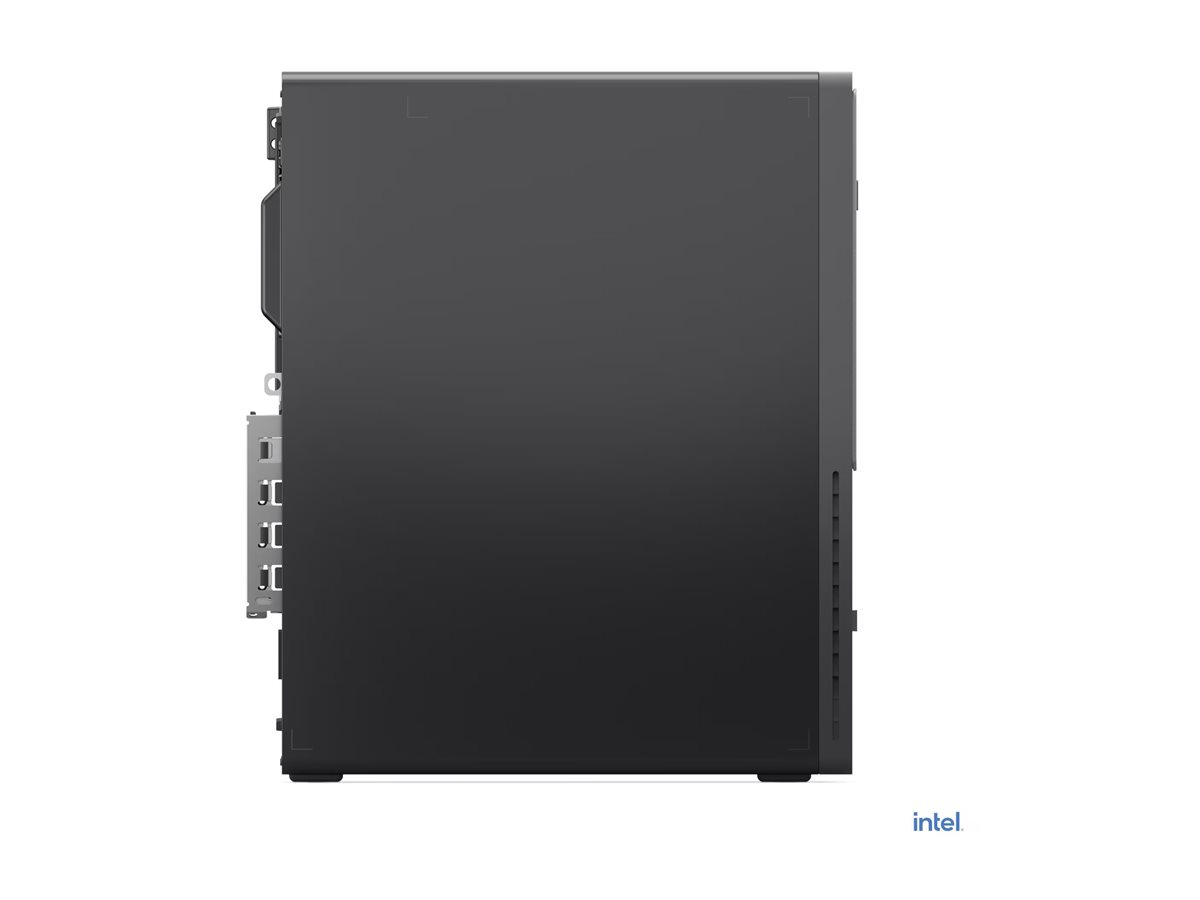

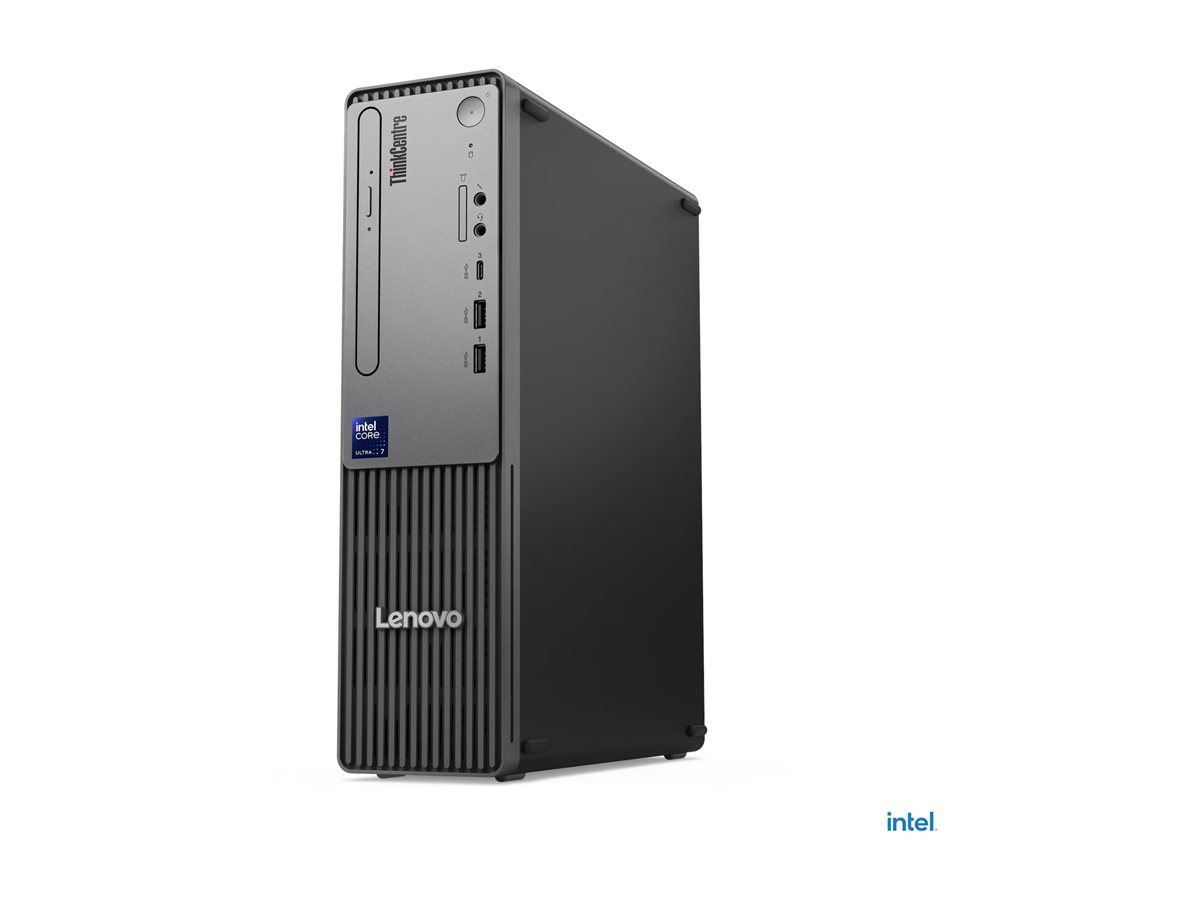

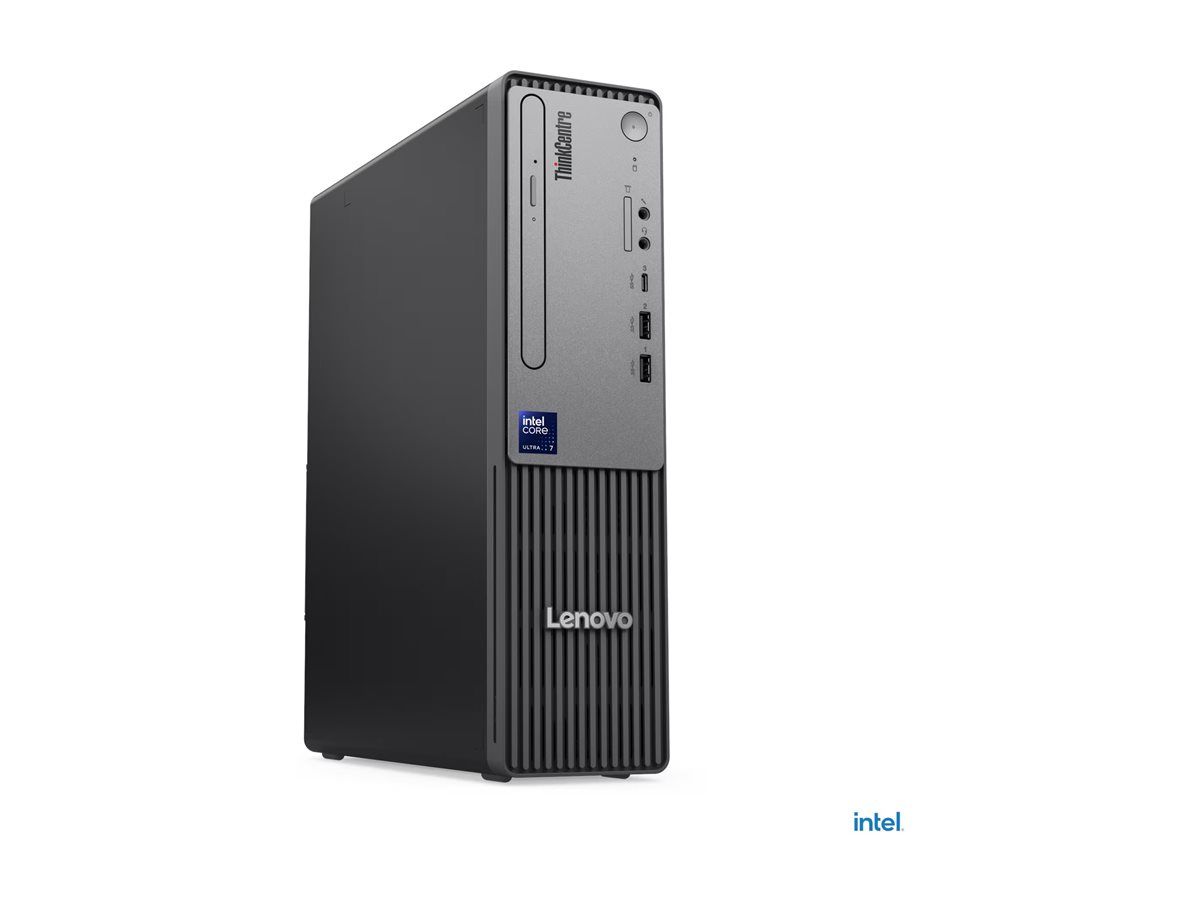

SFF Core Ultra 7 265 / up to 5.3 GHz - RAM 16 GB - SSD 512 GB - TCG Opal Encryption 2, NVMe - Intel Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: US English - raven black - Lenovo TopSeller
| Main Specifications | |
|---|---|
| Product Description | Lenovo ThinkCentre neo 50s Gen 6 - SFF Core Ultra 7 265 - 16 GB - SSD 512 GB - US English |
| Type | Personal computer - SFF |
| Localization | Language: English / region: United States |
| Processor | Intel Core Ultra 7 (Series 2) 265 (up to 5.3 GHz, (20-core) |
| Cache Memory | 30 MB |
| Cache Per Processor | 30 MB |
| RAM | 16 GB (installed) / 64 GB (max) - DDR5 SDRAM |
| Hard Drive | SSD 512 GB - PCI Express 4.0 x4 - M.2 2280 - TCG Opal Encryption 2, NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel Graphics shared video memory (UMA) |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6E, Bluetooth 5.3 |
| Keyboard | US English |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Color | Raven black |
| Dimensions (WxDxH) | 36.4 in x 11.5 in x 13.4 in |
| Weight | 10.19 lbs |
| Manufacturer Selling Program | Lenovo TopSeller |
| Environmental Standards | EPEAT Gold |
| Manufacturer Warranty | Limited warranty - 1 year - on-site |
| General | |
| Type | Personal computer |
| Product Form Factor | SFF |
| Built-in Devices | Speaker |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Raven black |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Slots | 2 (total) / 1 (free) x M.2 Card - 2280 (for SSD) ¦ 1 PCIe 4.0 x16 - low-profile ¦ 1 PCIe 3.0 x1 - low-profile |

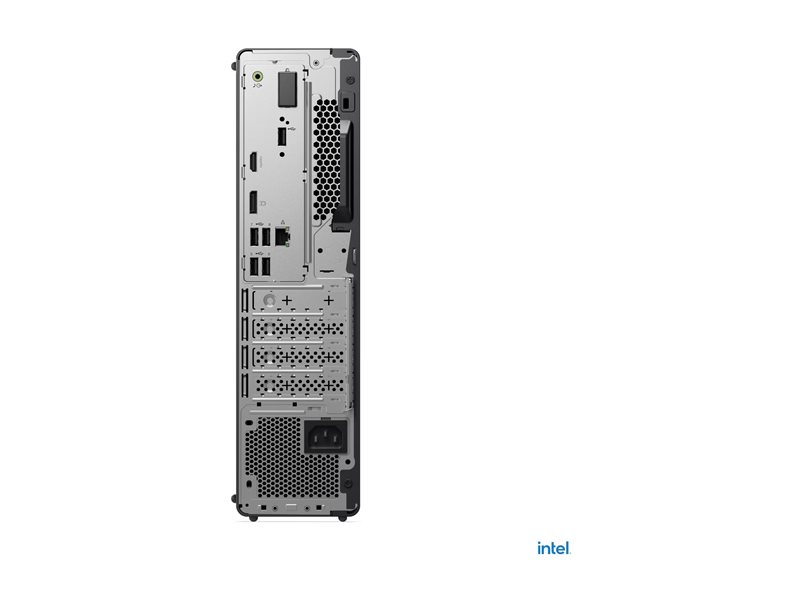

| Interfaces | 1 x USB-C 3.2 Gen 1 (1 front) (15W charging) ¦ 2 x USB 3.2 Gen 1 (2 front) ¦ 1 x headphones/microphone (1 front) ¦ 1 x microphone (1 front) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, FIPS 140-2, WEEE, REACH, TCG Certified |
| Manufacturer Selling Program | Lenovo TopSeller |
| RAM | |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 5600 MT/s |
| Rated Memory Speed | 5600 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 2 (total) / 1 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Configuration Features | 1 x 16 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 200 watt |
| Efficiency | 90% |
| Cache Memory | |
| Installed Size | 30 MB |
| Cache Per Processor | 30 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel Graphics shared video memory (UMA) |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 4.0 x4 |
| Features | TCG Opal Encryption 2, NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 36.4 in |
| Depth | 11.5 in |
| Height | 13.4 in |
| Weight | 10.19 lbs |
| Keyboard | |
| Keyboard Name | Lenovo Calliope Keyboard |
| Interface | USB |
| Localization & Layout | US English |
| Mouse | |
| Mouse Name | Lenovo Calliope Mouse |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Core Ultra 7 (Series 2) 265 |
| Max Turbo Speed | 5.3 GHz |
| Number of Cores | 20-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel B860 |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Gold |
