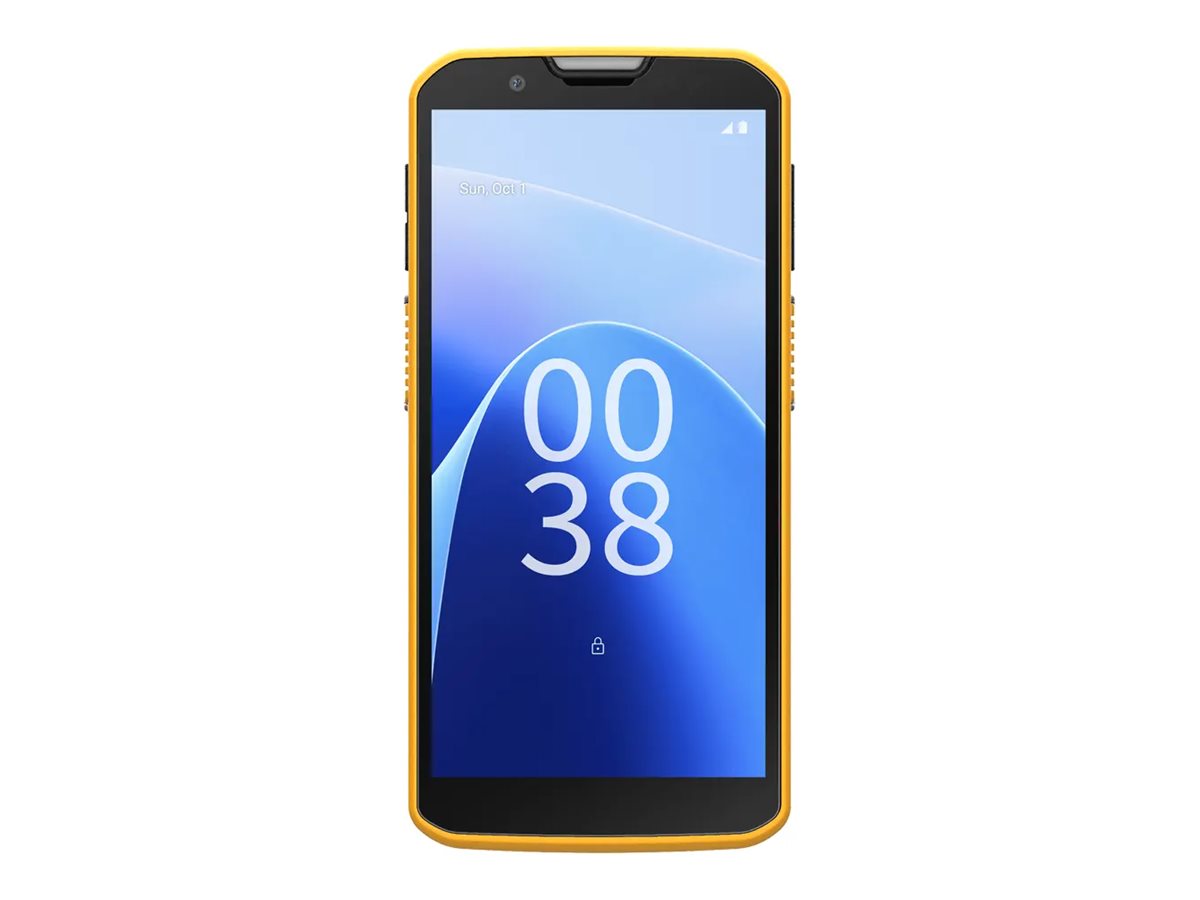

Data collection terminal - rugged - Android 13 - 128 GB UFS card - 6" color (1080 x 2160) - rear camera + front camera - barcode reader - (2D imager) - USB host - microSD slot - Wi-Fi 6E, Bluetooth, NFC - 4G, 5G - LTE
| Main Specifications | |
|---|---|
| Product Description | CipherLab RS38 - data collection terminal - Android 13 - 128 GB - 6" - 4G, 5G |
| Product Type | Data collection terminal - rugged |
| Operating System | Android 13 |
| Display | 6" color - 1080 x 2160 - Multi-Touch |
| Processor | Qualcomm QCM4490 (8-core) |
| Processor Clock Speed | 2.4 GHz |
| Storage | 128 GB UFS card |
| RAM | 8 GB |
| Supported Flash Memory Cards | microSD, microSDHC, microSDXC |
| Cellular Technology | 4G, 5G |
| Cellular Protocols | GSM, WCDMA, LTE, 5G NR |
| Wireless Connectivity | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2, NFC |
| Rear Camera | 16 Megapixel |
| Front Camera | 8 Megapixel |
| Navigation System | A-GPS/GPS/GNSS/GLONASS/Galileo/Beidou/QZSS |
| Barcode Reader | Yes (2D imager) |
| RFID Specification | ISO 14443A, ISO 14443B, Felica, ISO 15693 |
| Features | USB host |
| Battery Run Time | Up to 21 hours |
| Dimensions (WxDxH) | 3.1 in x 0.6 in x 6.5 in |
| Weight | 11.11 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Product Type | Data collection terminal - rugged |
| Operating System | Android 13 |
| Memory | |
| Storage | 128 GB UFS card |
| RAM | 8 GB - LPDDR5 SDRAM |
| Supported Flash Memory Cards | microSD, microSDHC, microSDXC |
| Max Supported Capacity | 1 TB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Sensors | Accelerometer, proximity sensor, magnetometer, barometer, motion sensor, eCompass, gyroscope |
| Features | LED indicator, 2x2 MiMo function, SE4770 Standard Range Array Imager, 1.8 m drop resistant |
| Vibrating Alert | Yes |
| Compliant Standards | FCC, IC, NCC, TBL, JRL, BIS, WPC, WEEE, RoHS, REACH, TSCA, BC, NRCAN, NBTC, IP65, IP68 |
| Processor | |
| Processor | Qualcomm QCM4490 |
| Processor Clock Speed | 2.4 GHz |
| Number of Cores | 8-core |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -22 °F |
| Max Storage Temperature | 158 °F |
| Input Device | |
| Type | Touchscreen |
| Battery | |
| Technology | Lithium ion |
| Capacity | 6800 mAh |
| Run Time | Up to 21 hours |
| Display | |
| Type | 6" color |
| Resolution | 1080 x 2160 |
| Touchscreen | Multi-Touch |
| Features | Corning Gorilla glass Victus, glove touch mode, capacitive touch screen, water resistant, anti-fingerprint (AF) coating |
| Communications | |
| SIM Card Type | Electronic SIM card (e-SIM), nano SIM |
| Cellular Technology | 4G, 5G |
| Cellular Protocols | GSM, WCDMA, LTE, 5G NR |
| Band | LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B38/B39/B40/B41/B42/B43/B48/B66/B71 / 5G FR1 n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
| Wireless Connectivity | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2, NFC |
| Dimensions & Weight | |
| Width | 3.1 in |
| Depth | 0.6 in |
| Height | 6.5 in |
| Weight | 11.11 oz |
| Barcodes | |
| Barcode Reader | Yes |
| Scan Element Type | 2D imager |
| RFID | |
| RFID Specification | ISO 14443A, ISO 14443B, Felica, ISO 15693 |
| Multimedia | |
| Audio | Three microphones, two speakers |
| Expansion and Connectivity | |
| Expansion Slots | 1 x microSD ¦ 1 x Nano-SIM card |
| Interfaces | 1 x USB-C 3.1 Gen 1 ¦ 1 x 8 pin connector |
| USB Host | Yes |
| Navigation System | |
| Receiver | A-GPS/GPS/GNSS/GLONASS/Galileo/Beidou/QZSS |
| Front Camera | |
| Sensor Resolution | 8 Megapixel |
| Rear Camera | |
| Sensor Resolution | 16 Megapixel |
| Light Source | LED flash |
| Features | Phase Detect Auto-Focus (PDAF) |
