Video/audio/infrared switch - 4K, HDR, HDBase-T, Matrix - desktop, rack-mountable
| Main Specifications | |
|---|---|

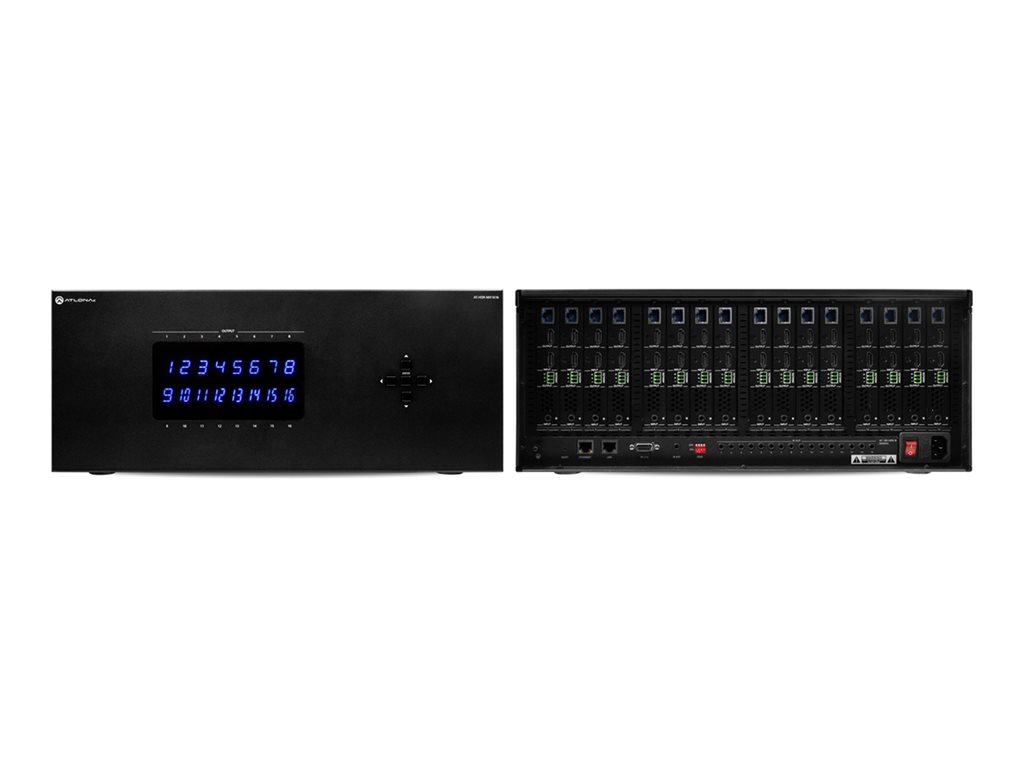

| Product Description | Atlona AT-HDR-MX1616 - video/audio/infrared switch - 4K, HDR, HDBase-T, Matrix - rack-mountable |
| Device Type | Video/audio/infrared switch |
| Enclosure Type | Rack-mountable 4U |
| Subtype | HDMI / HDBaseT |
| Features | 4:2:0 chroma subsampling support, 4:2:2 chroma subsampling support, 4:4:4 chroma subsampling support, 10-bit Deep Color support, 12-bit Deep Color support, 8-bit Deep Color support, Dolby Vision support, HDR support, HLG support, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, Dolby Atmos support, Dolby Digital Plus support, DTS Digital Surround support, DTS-HD Master Audio support, DTS:X support, mDNS, Telnet support, HTTP support, HTTPS support, DHCP support, static IP address support, active cooling |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 15.1 in x 6.9 in |
| Weight | 38.56 lbs |
| General | |
| Device Type | Video/audio/infrared switch |
| Enclosure Type | Desktop, rack-mountable 4U |
| Subtype | HDMI / HDBaseT |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Features | 4:2:0 chroma subsampling support, 4:2:2 chroma subsampling support, 4:4:4 chroma subsampling support, 10-bit Deep Color support, 12-bit Deep Color support, 8-bit Deep Color support, Dolby Vision support, HDR support, HLG support, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, Dolby Atmos support, Dolby Digital Plus support, DTS Digital Surround support, DTS-HD Master Audio support, DTS:X support, mDNS, Telnet support, HTTP support, HTTPS support, DHCP support, static IP address support, active cooling |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Built-in Devices | 5 control buttons, status LCD |
| Expansion / Connectivity | |
| Interfaces | 2 x LAN RJ-45 ¦ 16 x HDMI input Type A ¦ 16 x HDMI output Type A ¦ 16 x HDBaseT output RJ-45 ¦ 16 x audio output 3 pin captive screw ¦ 16 x IrDA input phone stereo 3.5 mm ¦ 16 x IrDA output phone stereo 3.5 mm ¦ 1 x serial (RS-232) DB-9 |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | CEC, FCC, NDAA Section 899 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 126 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 15.1 in |
| Height | 6.9 in |
| Weight | 38.56 lbs |
