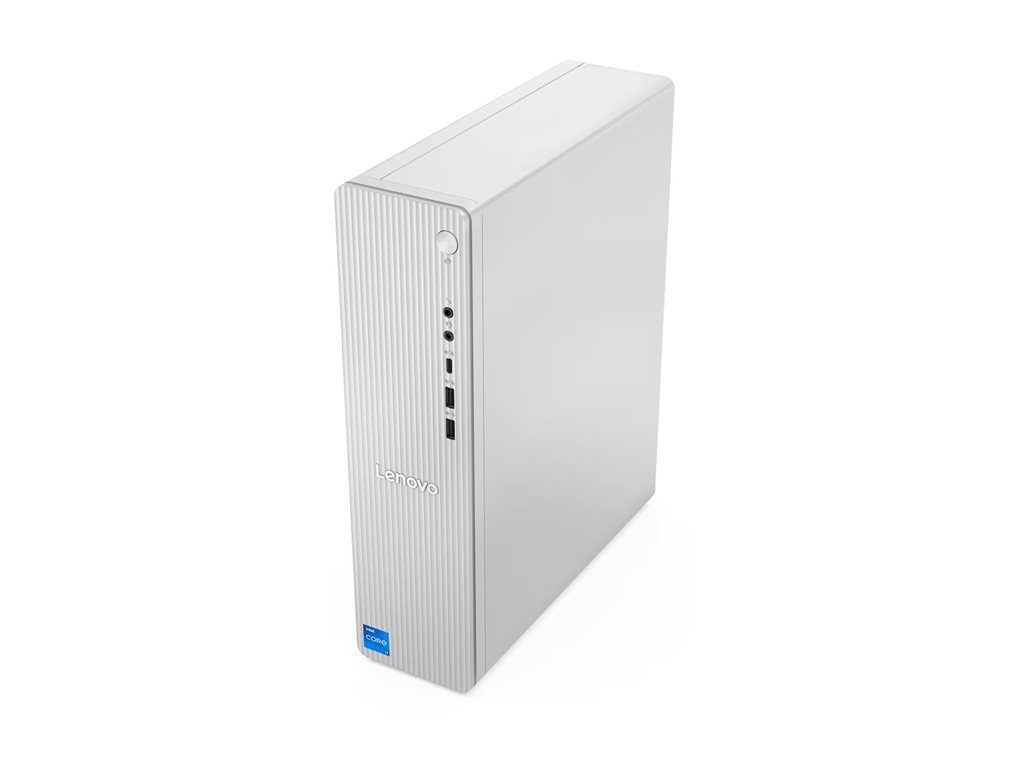

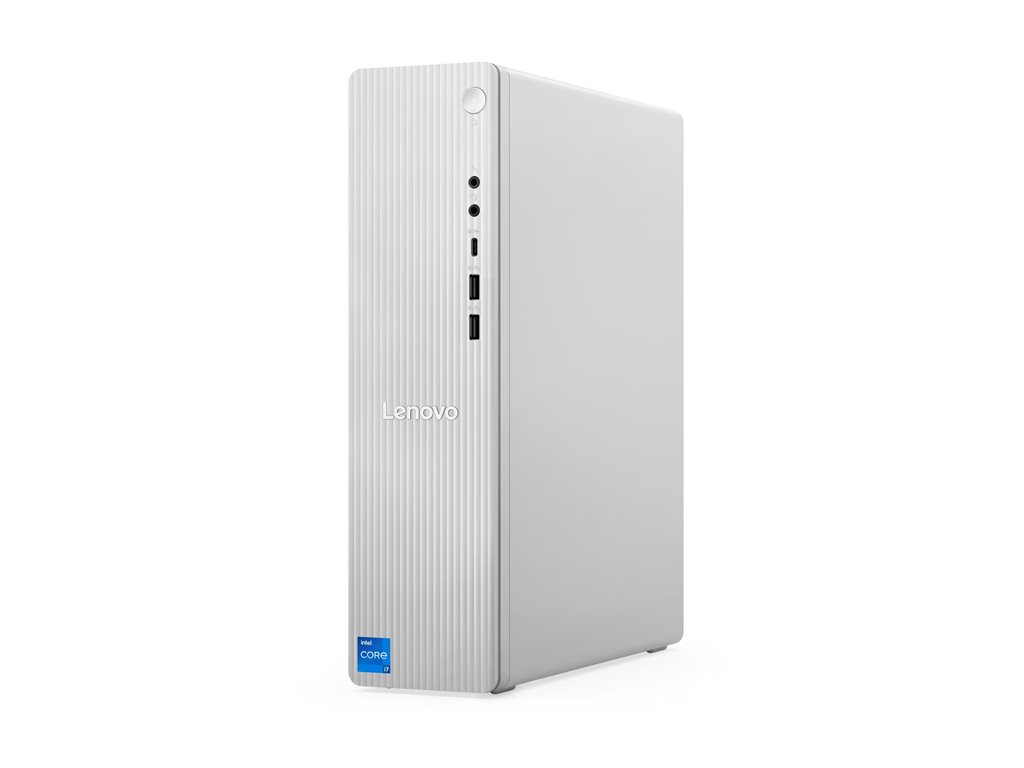

Tower Core i7 i7-14700 / up to 5.4 GHz - RAM 32 GB - SSD 1 TB - NVMe - UHD Graphics 770 - Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) - Win 11 Home - monitor: none - keyboard: English - luna gray
| Main Specifications | |
|---|---|
| Product Description | Lenovo IdeaCentre 08IRR9 - tower Core i7 i7-14700 2.1 GHz - 32 GB - SSD 1 TB - English |
| Type | Personal computer - tower |
| Localization | Language: English / region: United States |
| Processor | Intel Core i7 (14th Gen) i7-14700 / 2.1 GHz (up to 5.4 GHz, (20-core) |
| Cache Memory | 33 MB |
| Cache Per Processor | 33 MB |
| RAM | 32 GB (installed) / 32 GB (max) - DDR5 SDRAM |
| Hard Drive | SSD 1 TB - PCI Express 4.0 x4 - M.2 2280 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 770 shared video memory (UMA) |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 5.2, Wi-Fi 6 |
| Keyboard | English |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Home |
| Color | Luna gray |
| Dimensions (WxDxH) | 3.5 in x 11.5 in x 13.4 in |
| Weight | 9.37 lbs |
| General | |
| Type | Personal computer |
| Product Form Factor | Tower |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Luna gray |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |

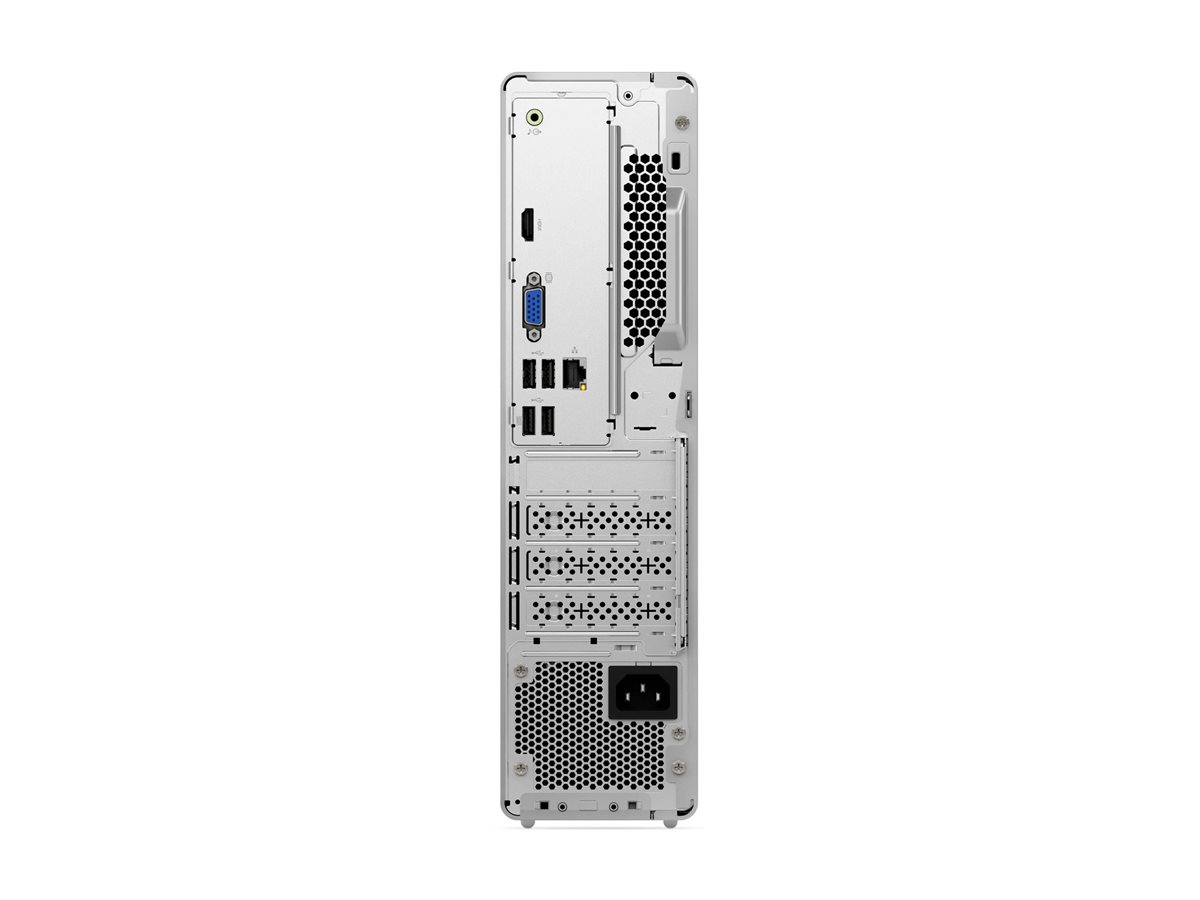

| Interfaces | 1 x USB-C 3.2 Gen 1 (1 front) (15W charging) ¦ 2 x USB 3.2 Gen 1 (2 front) ¦ 1 x headphones/microphone (1 front) ¦ 1 x microphone (1 front) ¦ 1 x USB 2.0 (1 rear) (Power On) ¦ 3 x USB 2.0 (3 rear) ¦ 1 x HDMI (1 rear) (TMDS compatible) ¦ 1 x VGA (1 rear) ¦ 1 x LAN (1 rear) ¦ 1 x audio line-out (1 rear) |
| Miscellaneous | |
| Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 3 |
| RAM | |
| Installed Size | 32 GB (installed) / 32 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 5600 MT/s |
| Rated Memory Speed | 5600 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 2 (total) |
| Features | Dual channel memory architecture |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 260 watt |
| Efficiency | 90% |
| Cache Memory | |
| Installed Size | 33 MB |
| Cache Per Processor | 33 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 shared video memory (UMA) |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Home English |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 x4 |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 3.5 in |
| Depth | 11.5 in |
| Height | 13.4 in |
| Weight | 9.37 lbs |
| Keyboard | |
| Keyboard Name | Lenovo Calliope Keyboard |
| Interface | USB |
| Localization & Layout | English |
| Mouse | |
| Mouse Name | Lenovo Calliope Mouse |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Core i7 (14th Gen) i7-14700 |
| Clock Speed | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
| Max Turbo Speed | 5.4 GHz (P-core) / 4.2 GHz (E-core) |
| Number of Cores | 20-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel B760 |
