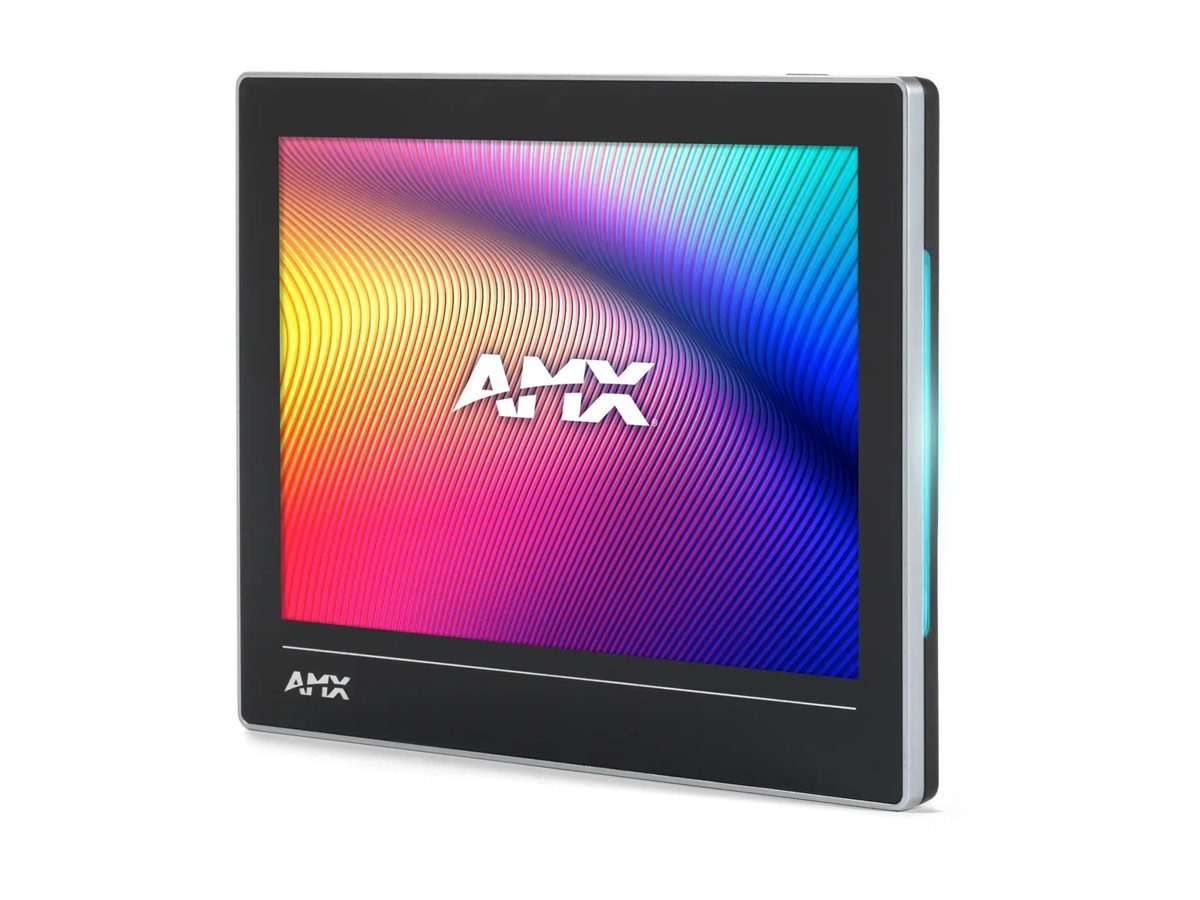

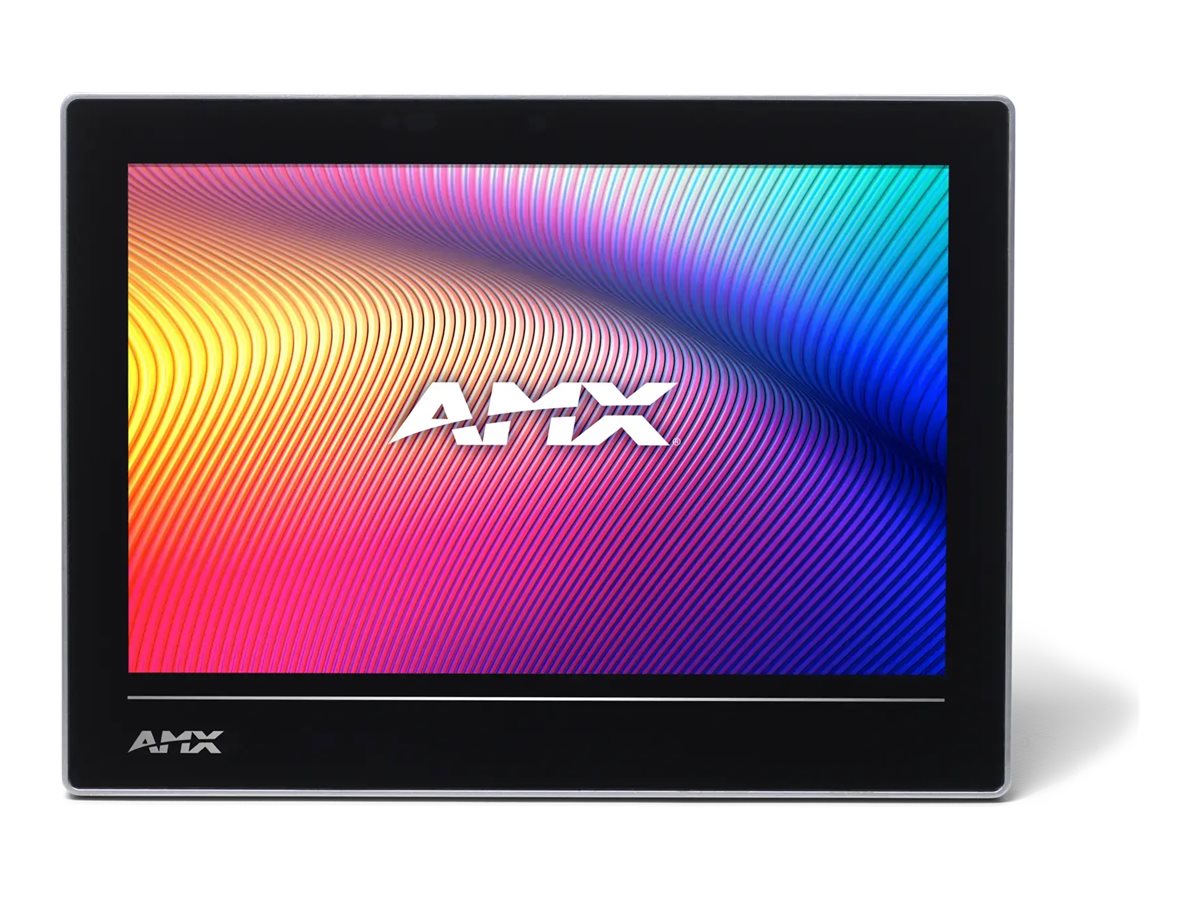

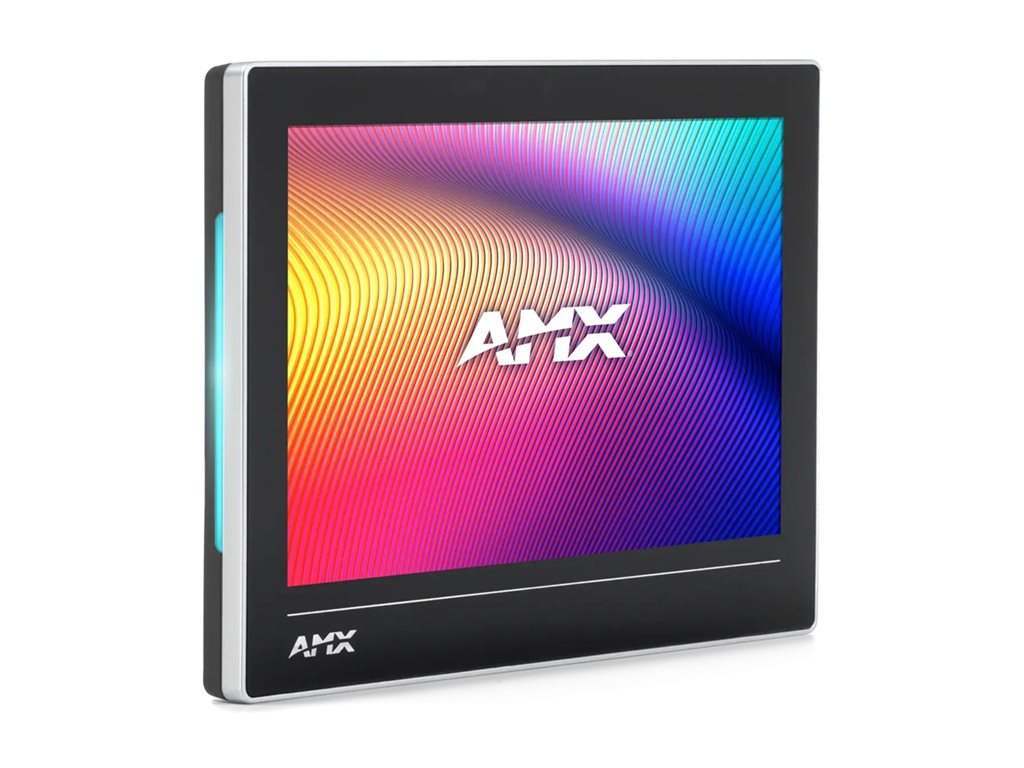

8" Diagonal Class LED-backlit LCD display - interactive digital signage - with touchscreen (multi touch) 1280 x 800 - PoE
| Main Specifications | |
|---|---|
| Product Description | AMX VARIA 80N 8" LED-backlit LCD display - for digital signage / interactive communication |
| Product Type | LED-backlit LCD flat panel display with touchscreen (multi touch) |
| Diagonal Class | 8" |
| Commercial Use | Yes - interactive digital signage |
| Resolution | 1280 x 800 |
| Connectivity | LAN |
| Technology | IPS |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:10 |
| TV Tuner | No tuner |
| Speaker System | 2 speakers |
| Storage Capacity | 16GB eMMC |
| USB | 2 ports |
| Included Accessories | Mounting plate, screw kit, adhesive pad, mounting template |
| Power Over Ethernet (PoE) Support | Yes |
| Power Consumption Operational | 15.4 Watt |
| Dimensions (WxDxH) | 58.6 in x 0.9 in x 7.9 in |
| Weight | 18.76 oz |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption Operational | 15.4 Watt |
| Diagonal Class | 8" |
| Commercial Use | Yes - interactive digital signage |
| Combined With | Touchscreen (multi touch) |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Ambient light sensor (ALS), proximity sensor |
| Modes | Landscape mode |
| Width | 58.6 in |
| Depth | 0.9 in |
| Height | 7.9 in |
| Weight | 18.76 oz |
| Miscellaneous | |
| Included Accessories | Mounting plate, screw kit, adhesive pad, mounting template |
| Compliant Standards | IEEE 802.3af, UL, CB, ESD, FCC Class B certified, TLS v1.3, IEEE 802.1x |
| Power | |
| Power Over Ethernet (PoE) Support | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% |
| Display | |
| LCD Display Technology | IPS |
| Resolution | 1280 x 800 |
| Image Aspect Ratio | 16:10 |
| LCD Backlight Technology | LED backlight |
| Coating | Anti-fingerprint, antimicrobial coating |
| Image Contrast Ratio | 800:1 |
| Brightness | 350 cd/m² |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 160° |
| Touchpoints Qty | 5 |
| Additional Features | Capacitive touch technology, Palm Rejection |
| Connections | |
| Connector Type | LAN/power ¦ USB OTG ¦ USB 2.0 |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 4 Watt |
| Speakers | 2 x main channel speaker - 2 Watt |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| Stands & Mounts | |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | 4 GB LPDDR4 - 16GB eMMC |
