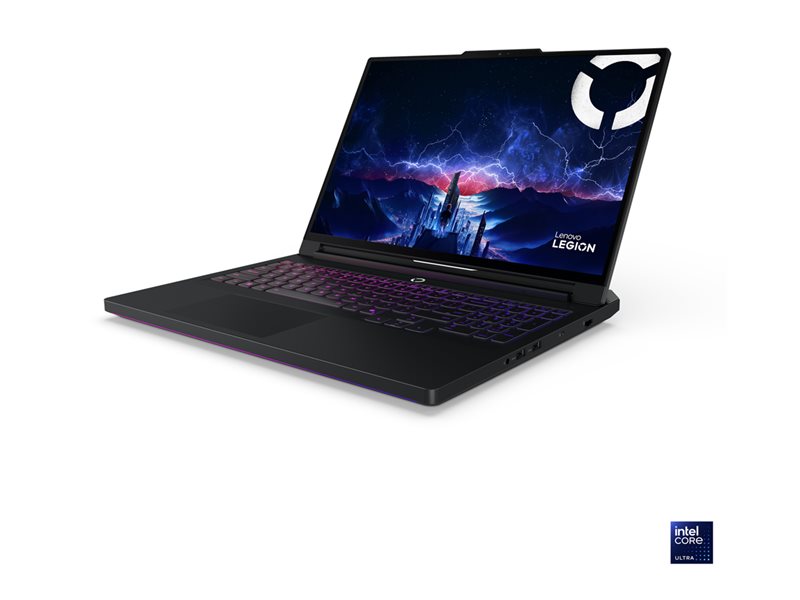

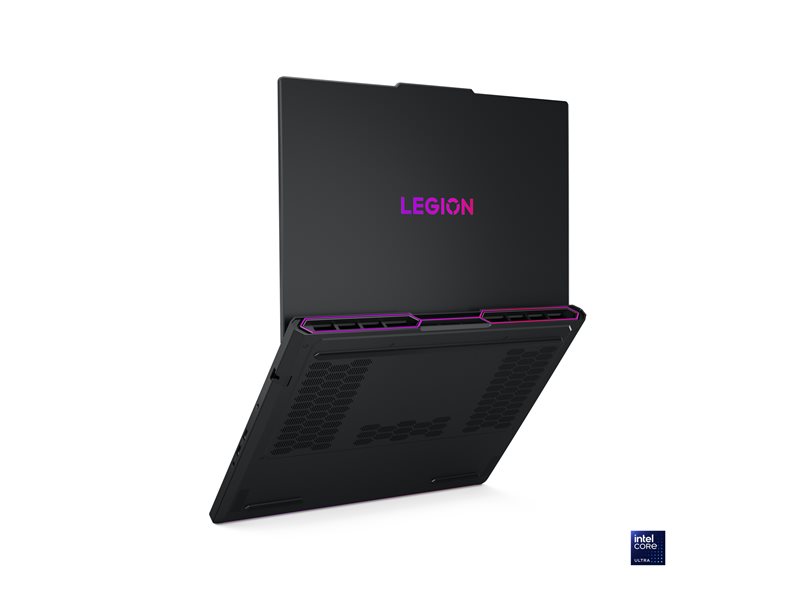

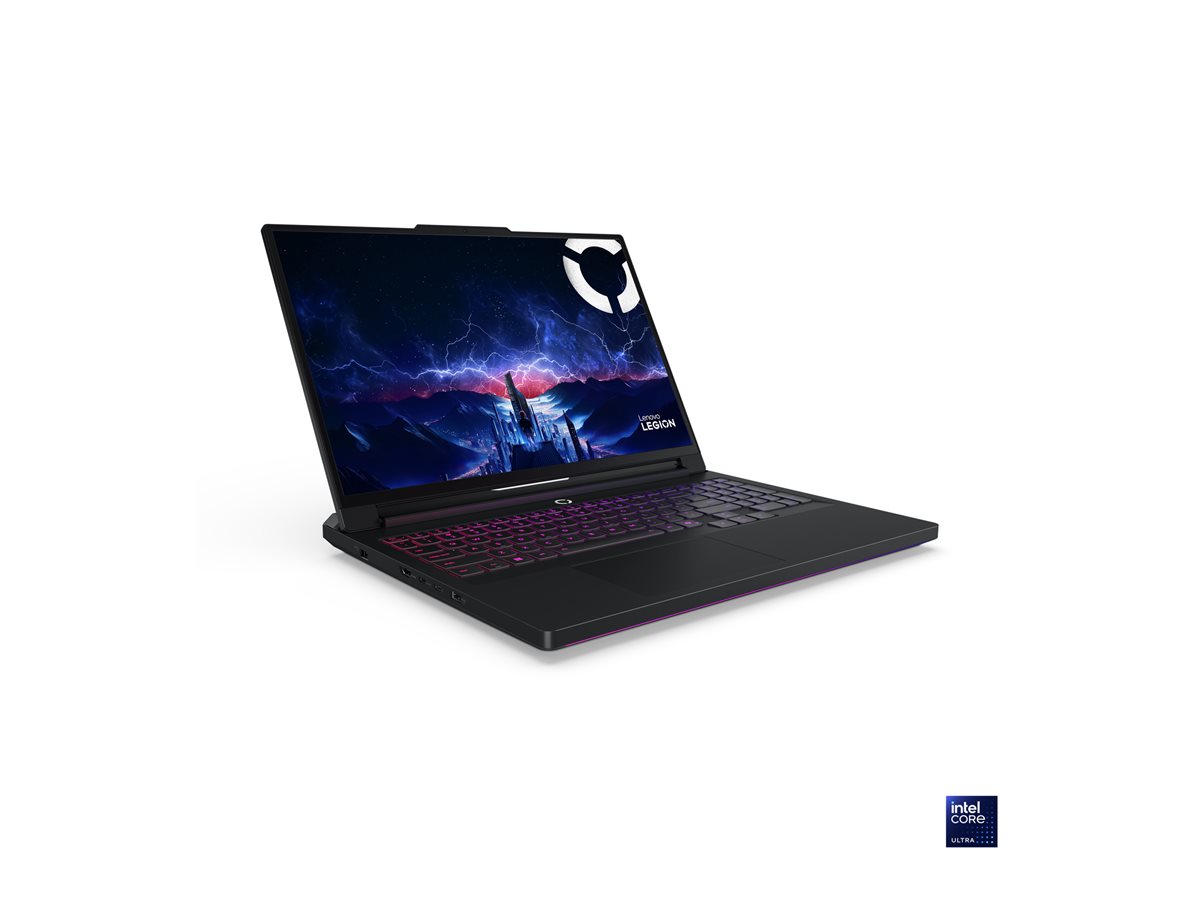

AI PC - Intel Core Ultra 9 - 275HX / up to 5.4 GHz - Win 11 Pro - GeForce RTX 5070 Ti - 32 GB RAM - 1 TB SSD NVMe x 2 - 16" OLED 2560 x 1600 (WQXGA) @ 240 Hz - 2.5 Gigabit Ethernet - Wi-Fi 7, Bluetooth - eclipse black - kbd: English
| Main Specifications | |
|---|---|
| Product Description | Lenovo Legion Pro 7 16IAX10H - AI PC - 16" - Intel Core Ultra 9 - 275HX - 32 GB RAM - 1 TB SSD x 2 - English |
| Product Type | Notebook - AI PC |
| EU Data Act | Https://www.lenovo.com/us/en/compliance/eu-data-act-transparency-declaration/ |
| Operating System | Win 11 Pro - English |
| Processor | Intel Core Ultra 9 (Series 2) - 275HX up to 5.4 GHz / 36 MB Cache |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 13 TOPS |
| Memory | 32 GB DDR5 (2 x 16 GB) |
| Storage | 2 TB: 2 x 1 TB SSD - NVMe |
| Display | 16" OLED 2560 x 1600 / WQXGA @ 240 Hz |
| Graphics | NVIDIA GeForce RTX 5070 Ti / Intel Graphics - up to 992 TOPS |
| Video Memory | 12 GB GDDR7 SDRAM |
| Gaming | Yes |
| Keyboard | English |
| Keyboard Backlight | Yes (RGB) |
| Numeric Keypad | Yes |
| Integrated Webcam | Yes |
| Networking | 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4, 2.5 Gigabit Ethernet |
| Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Eclipse black |
| Dimensions (WxDxH) | 14.3 in x 10.9 in x 1 in |
| Weight | 5.67 lbs |
| Localization | Language: English / region: United States |
| Manufacturer Warranty | Limited warranty - 1 year - pick-up and return |
| General | |
| Product Type | Notebook |
| AI Level | AI PC |
| Operating System | Windows 11 Pro - English |
| EU Data Act | Https://www.lenovo.com/us/en/compliance/eu-data-act-transparency-declaration/ |
| Memory | |
| RAM | 32 GB (2 x 16 GB) |
| Max RAM Supported | 32 GB |
| Technology | DDR5 SDRAM |
| Speed | 6400 MT/s |
| Rated Speed | 6400 MT/s |
| Form Factor | CSO-DIMM 262-pin |
| Slots Qty | 2 |
| Empty Slots | 0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - pick-up and return |
| Miscellaneous | |
| Color | Eclipse black |
| Case Material | Aluminum (top), aluminum (bottom) |
| Surface Finish | Anodizing sandblasting |
| Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Features | LA3 AI Chip |
| Included Accessories | Power adapter |
| Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 3, TUV Rheinland Flicker Free Certification, TUV Rheinland Low Blue Light (Hardware Solution), TUV Rheinland High Gaming Performance |
| Localization | Language: English / region: United States |
| Storage | |
| Total Capacity | 2 TB |
| Main Storage | 2 x 1 TB SSD M.2 2280 PCIe 4.0 x4 - NVM Express (NVMe) |
| Software | |
| Software Included | Microsoft Office (Trial), Lenovo AI Now |
| Battery | |
| Technology | Lithium polymer |
| Capacity | 99.9 Wh |
| Display | |
| Type | 16" OLED |
| Resolution | 2560 x 1600 (WQXGA) |
| V-Sync Rate at Max Res. | 240 Hz |
| Widescreen | Yes |
| Image Aspect Ratio | 16:10 |
| Image Brightness | 1100 cd/m² |
| Color Gamut | 100% DCI-P3 |
| Features | Glossy, Flicker Free technology, NVIDIA G-SYNC compatible, Low Blue Light technology, Dolby Vision, High Gaming Performance Technology, X-Rite factory color calibration, HDR 1000 True Black |
| Communications | |
| Wireless | 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 |
| Network Interface | 2.5 Gigabit Ethernet |
| Features | Dual stream (2x2) |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 14.3 in x 10.9 in x 1 in |
| Weight | 5.67 lbs |
| Processor / Chipset | |
| CPU | Intel Core Ultra 9 (Series 2) 275HX |
| Max Turbo Speed | 5.4 GHz |
| Number of Cores | 24-core |
| Performance Cores | 8 |
| Efficient Cores | 16 |
| Cache | 36 MB |
| Chipset | Intel HM870 |
| Features | Integrated memory controller |
| Audio & Video | |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Graphics Processor | NVIDIA GeForce RTX 5070 Ti / Intel Graphics - up to 992 TOPS |
| Video Memory | 12 GB GDDR7 SDRAM |
| Gaming | Yes |
| Camera | Yes |
| Resolution | 5 Megapixel |
| Camera Features | Fixed focus, e-camera shutter |
| Sound | Two tweeters, two woofers, dual array microphone |
| Codec | Realtek ALC3306 |
| Compliant Standards | High Definition Audio |
| Audio Features | Output: Nahimic audio, Smart Amplifier (AMP) |
| Input | |
| Type | Keyboard, touchpad |
| Keyboard Backlight | Yes (RGB) |
| Keyboard Layout | English |
| Numeric Keypad | Yes |
| Features | Multi-touch touchpad, buttonless touchpad, per-key RGB |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 400 watt |
| Connections & Expansion | |

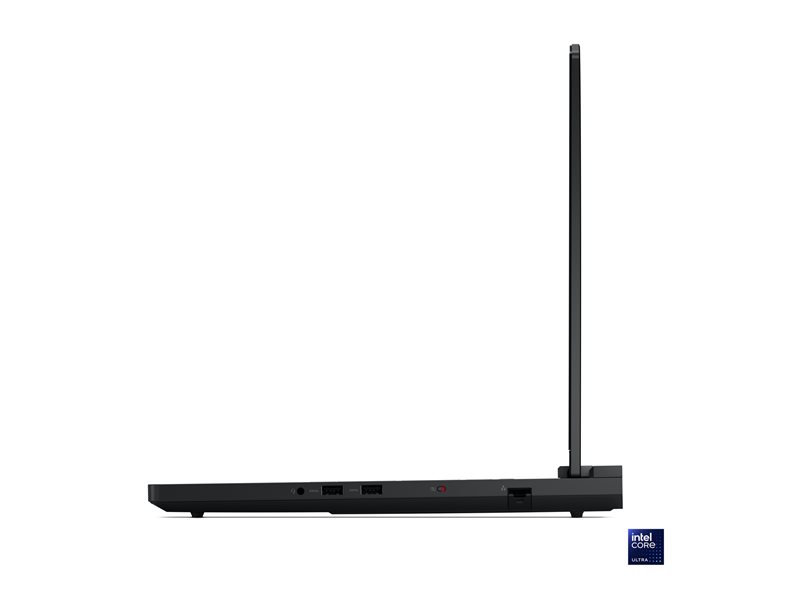

| Interfaces Details | 2 x USB 3.2 Gen 1 ¦ USB 3.2 Gen 2 (Always On) ¦ USB-C 3.2 Gen 2 (supports DisplayPort 2.1 Alt Mode) (100W power delivery) ¦ USB4 (supports Thunderbolt 4, DisplayPort 2.1 Alt Mode) ¦ HDMI (8K support) ¦ Headphone/microphone combo jack (mini-phone 3.5 mm) ¦ 2.5 Gigabit Ethernet (RJ-45) |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Total Processor Performance Up To (TOPS) | 36 TOPS |
| AI Datatype Support on NPU | INT8 |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
